Refrigerated van on a HINO 300 with an FRP skin — COND

⚪ Completed · chassis unavailable

Refrigerated van on a HINO 300 with an FRP skin

category CFRP fibreglasslashing rail

↔ body 5,200 × 2,200 × 2,200 mm▣ panel sandwich

This chassis is not currently supplied to Kazakhstan. Hino is not imported into the country, so we cannot repeat this project on that chassis. We fit the same body to chassis that are available — we will pick an equivalent for your load.

A refrigerated body in premium trim: glass-reinforced plastic inside and out. That is one continuous smooth surface with no seams or rivets — it takes a pressure wash, brine does not rust it and it does not hold smells. Lashing rails run along both walls inside: cargo is strapped at any height, not just at floor level, so pallets stop wandering on a half-empty run. An Elinge C4 unit over the cab holds the cold and costs no load volume. A 5,200 mm body on a Japanese HINO 300 delivery chassis.

Find an equivalent →WhatsApp

Chassis

Make / model	HINO 300, the 300 series
Class	a Japanese-built delivery truck
Cab	single
Rear wheels	twin
Vehicle category	C

Our other bodies on this make — on the HINO page. On the same chassis we have also built a eutectic van and a curtain-side.

Van

Body type	refrigerated body, sandwich panel
Body dimensions	5,200 × 2,200 × 2,200 mm
Internal dimensions	4,992 × 1,992 × 1,992 mm, 100 mm panel
Usable volume	19.8 m³ — 8 europallets
Lining	FRP inside and out
Load securing	lashing rails along both body walls
Refrigeration unit	Elinge C4, mounted above the cab
Floor	chequered aluminium
Doors	hinged rear, cam-bar locks
Specification	premium
Manufacture	the COND plant, Almaty

More about the design on the page refrigerated vans. Unit models — Carrier and Elinge.

How this body is built

The body is built on a HINO 300, the 300 series chassis.

Body type — refrigerated body, sandwich panel. That leaves 4,992 × 1,992 × 1,992 mm, 100 mm panel inside: the panel thickness is subtracted on every side, floor and ceiling included. Usable volume is 19.8 m³, counted from the internal dimensions rather than by multiplying the external ones. In a single tier that is 8 europallets.

The floor is chequered aluminium. Doors: hinged rear, cam-bar locks.

The refrigeration unit is Elinge C4, over-cab.

Why it is built this way

Ribbed aluminium flooring is chosen where cargo moves on trolleys: the sheet takes no moisture, hoses down and does not delaminate under wheels. It is heavier than plywood but outlasts it severalfold.

What is in the photos

Body in full from the side

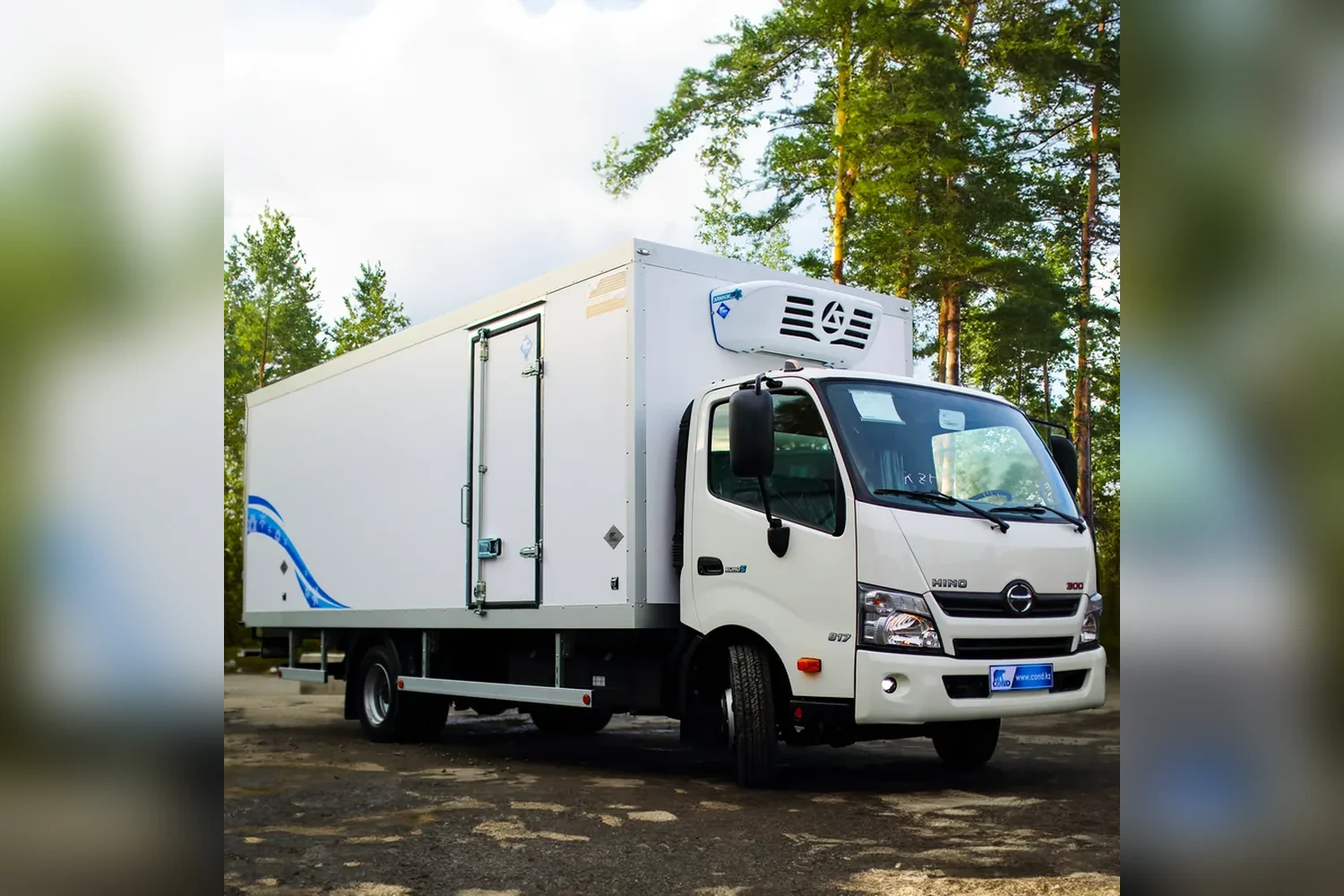

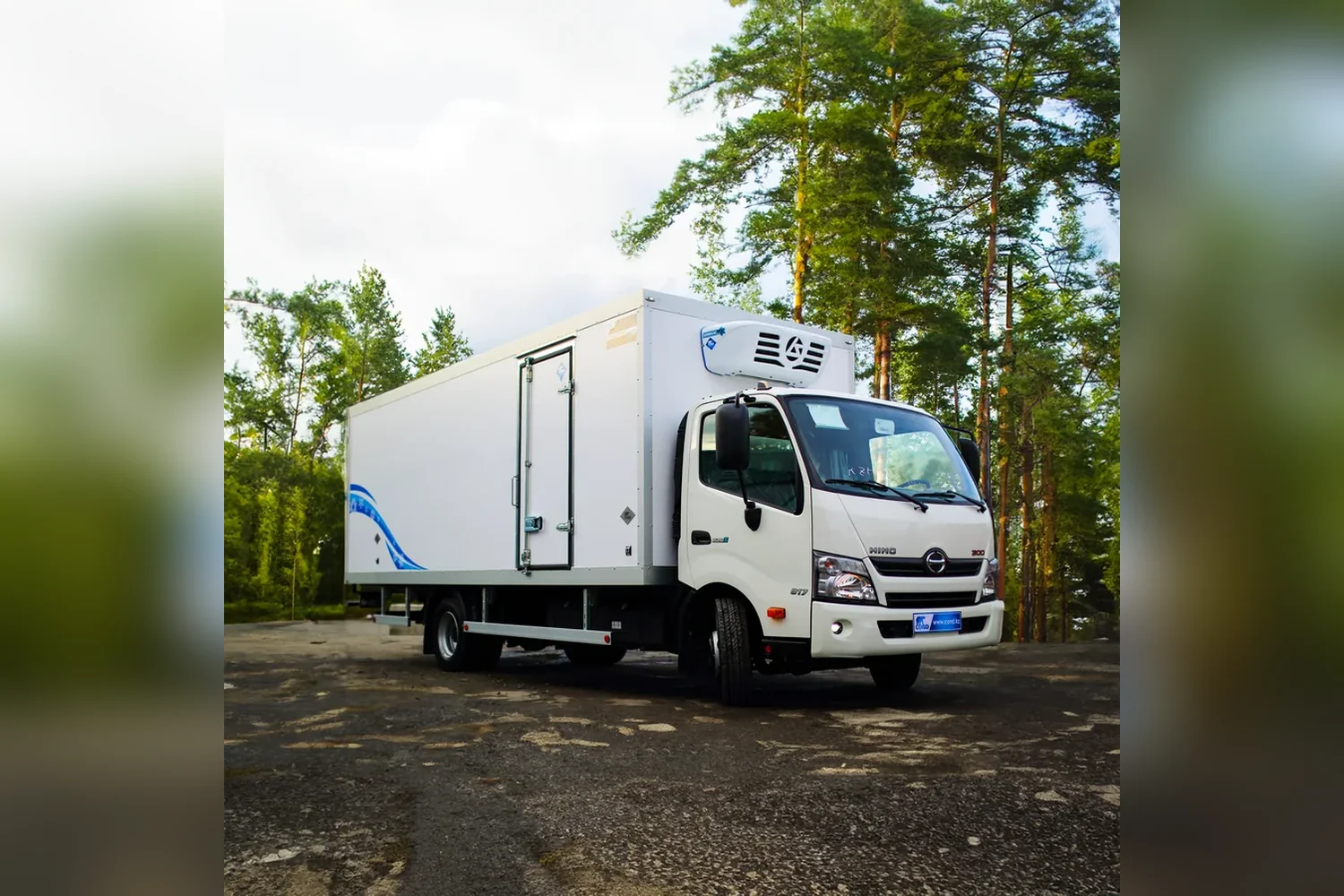

Front three-quarter view, refrigeration unit above the cab
Refrigeration unit close up
The hinged rear doors open
Body inside: the evaporator for the ceiling and lashing
Lashing rail close up
Floor body of ribbed aluminium
Rod latches the rear doors
Control panel refrigeration unit in the cab

Who it suits

A body with a refrigeration unit carries anything perishable: meat and fish, dairy, ready meals, flowers, medicines. The unit holds the set temperature while parked too, so the truck also suits distribution runs with long stops. Usable volume here is 19.8 m³ — the block above estimates the load in pallets.

We will build the same — to your size and your chassis

This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.

We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.

If you are still choosing a chassis, we have the same body on other bases as well: Chevrolet Labo, DongFeng C31, FAW 1027, GAZelle Business 3302. They differ in payload, frame length and licence category.

How many pallets fit

A standard 1,200 × 800 mm europallet, single tier, no restacking. Internal dimensions with a 50 mm laying allowance — a pallet will not go in dead tight.

8europallets 1,200 × 800 mm

Inside 4 992 × 1 992 × 1 992 mm · 19,8 m³

The layout scheme is on the right: it shows how the rows sit and how much room is left.

Recalculate for your dimensions Ask on WhatsApp

Where the number comes from:How many pallets fit in a refrigerated body — a capacity calculation

All projects of this make:All refrigerated bodies on Hino

FAQ

FAQ about the HINO 300 reefer with an FRP skin

One continuous smooth surface with no seams or rivets. It takes a pressure wash, brine does not eat it and it does not hold smells — which matters when the same body carries fish one day and dairy the next. Galvanised sheet is cheaper, but it has seams, and in time those become where dirt collects.

Floor lashing only holds the bottom row. The rail runs along the walls at height, so a strap can go over a pallet or secure the upper tier of boxes. On a half-empty run that is the only way to stop the load from wandering.

Up there it costs no load volume: the condenser sits on the front wall above the cab, the evaporator goes under the ceiling inside. There is nowhere to put an underslung unit on a delivery truck — under the frame it is crowded with the tank, batteries and spare wheel.

Yes — that is what it is built for. Walls and ceiling are FRP, the floor is treadplate aluminium, the joints are sealed. Water drains through plugs in the floor. That is exactly why this body is chosen for meat and fish, where washing after every run is mandatory.

Yes. The HINO 300 exceeds 3,500 kg gross, which is category C. We build category-B reefers on light chassis — they are collected in the “Vehicles” section.
