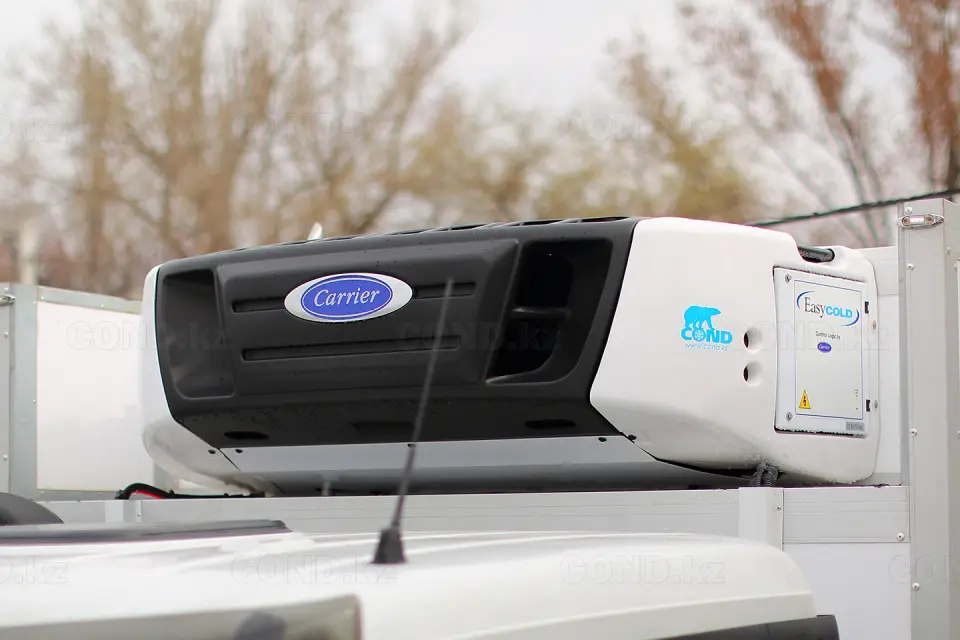

A Carrier Citimax 500 refrigeration unit above the cab of a COND van

The Carrier two-zone temperature control panel in a van cab

A Carrier evaporator inside a COND isothermal body

A Carrier refrigeration unit above a truck cab, front view

The Carrier control panel in the cab — set point −16.8 °C

Official Carrier dealer in Kazakhstan

Carrier refrigeration units

The world’s leading manufacturer of transport refrigeration. COND is the official Carrier dealer in Kazakhstan. We install and service the units.

Select a unit →WhatsApp

Quote is based on body, chassis and temperature range.

Message on WhatsApp +7 777 233 69 28

Carrier model range

Engine-driven Citimax units and self-powered Supra units (own diesel engine + 380 V). Tell us your body volume, duty and drive type — we will select a model.

Body volume

Temperature duty

Drive

Showing: 11 of 11

Model	Power	Drive	Body at −20 °C	Capacity at 0 °C	At −20 °C	Price with installation	Example chassis / use
CITIMAX 280	12 / 24 V	Engine-driven	up to 9 m³	2703 W	1525 W	1,980,000 ₸*	GAZelle Next, Hyundai Porter
CITIMAX 350	12 / 24 V	Engine-driven	up to 16 m³	3286 W	1764 W	2,400,000 ₸*	GAZelle Next, JAC N56
CITIMAX 400	12 V	Engine-driven	up to 18 m³	4078 W	2071 W	2,700,000 ₸*	GAZon Next, Hyundai Mighty
CITIMAX 500 / D5	12 / 24 V	Engine-driven	up to 20 m³	5060 / 5300 W	2340 / 2600 W	2,980,000 ₸*	GAZon Next, JAC N90
CITIMAX D6	24 V	Engine-driven	up to 24 m³	6000 W	3100 W	3,280,000 ₸*	JAC N90, Isuzu
CITIMAX D7	12 / 24 V	Engine-driven	up to 28 m³	7100 W	3700 W	3,500,000 ₸*	JAC N120, Isuzu
CITIMAX 1000	24 V	Engine-driven	up to 38 m³	7900 W	3800 W	4,500,000 ₸*	KamAZ, Iveco, Hino
Supra 850	380 V	Self-powered + 380 V	up to 43 m³	6450 W	4240 W	On request	Trailers, heavy-duty vans
Supra 1050	380 V	Self-powered + 380 V	up to 50 m³	7800 W	5000 W	On request	Trailers, heavy-duty vans
Supra 1150	380 V	Self-powered + 380 V	up to 55 m³	8900 W	5400 W	On request	Trailers, heavy-duty vans
Supra 1250	380 V	Self-powered + 380 V	up to 65 m³	9100 W	6300 W	On request	Trailers, heavy-duty vans

No ready unit matches the selected parameters — leave a request and we will select one individually.

In short: the Carrier line for COND bodies in Almaty — engine-driven Citimax units for 5 to 38 m³ (models 280, 350, 400, 500, D5, D6, D7, 1000) and self-powered Supra units for 43 to 65 m³ (models 850, 1050, 1150, 1250). All units hold two duties — 0 °C (chilled) and −20 °C (frozen).

Each model in detail

CITIMAX 280

Body up to 9 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 9 m³
Cooling capacity at 0 °C	2703 W
Cooling capacity at −20 °C	1525 W
Control accuracy	±1 °C
Power	12 / 24 V
Drive	engine-driven
Price with installation	1,980,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: GAZelle Next, Hyundai Porter.

Model page →Select →Engine-driven · 1,980,000 KZT*

CITIMAX 350

Body up to 16 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 16 m³
Cooling capacity at 0 °C	3286 W
Cooling capacity at −20 °C	1764 W
Control accuracy	±1 °C
Power	12 / 24 V
Drive	engine-driven
Price with installation	2,400,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: GAZelle Next, JAC N56.

Model page →Select →Engine-driven · 2,400,000 KZT*

CITIMAX 400

Body up to 18 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 18 m³
Cooling capacity at 0 °C	4078 W
Cooling capacity at −20 °C	2071 W
Control accuracy	±1 °C
Power	12 V
Drive	engine-driven
Price with installation	2,700,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: GAZon Next, Hyundai Mighty.

Model page →Select →Engine-driven · 2,700,000 KZT*

CITIMAX 500 / D5

Body up to 20 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 20 m³
Cooling capacity at 0 °C	5060 / 5300 W
Cooling capacity at −20 °C	2340 / 2600 W
Control accuracy	±1 °C
Power	12 / 24 V
Drive	engine-driven
Price with installation	2,980,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: GAZon Next, JAC N90.

Model page →Select →Engine-driven · 2,980,000 KZT*

CITIMAX D6

Body up to 24 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 24 m³
Cooling capacity at 0 °C	6000 W
Cooling capacity at −20 °C	3100 W
Control accuracy	±1 °C
Power	24 V
Drive	engine-driven
Price with installation	3,280,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: JAC N90, Isuzu.

Model page →Select →Engine-driven · 3,280,000 KZT*

CITIMAX D7

Body up to 28 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 28 m³
Cooling capacity at 0 °C	7100 W
Cooling capacity at −20 °C	3700 W
Control accuracy	±1 °C
Power	12 / 24 V
Drive	engine-driven
Price with installation	3,500,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: JAC N120, Isuzu.

Model page →Select →Engine-driven · 3,500,000 KZT*

CITIMAX 1000

Body up to 38 m³ at −20 °C

Engine-driven unit

Specifications

Body volume at −20 °C	up to 38 m³
Cooling capacity at 0 °C	7900 W
Cooling capacity at −20 °C	3800 W
Control accuracy	±1 °C
Power	24 V
Drive	engine-driven
Price with installation	4,500,000 ₸*

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

An engine-driven unit: runs off the vehicle engine, no separate fuel needed.

✓

Temperature held to ±1 °C.

✓

Example chassis: KamAZ, Iveco, Hino.

Model page →Select →Engine-driven · 4,500,000 KZT*

Supra 850

Body up to 43 m³ at −20 °C

Self-powered unit

Specifications

Body volume at −20 °C	up to 43 m³
Cooling capacity at 0 °C	6450 W
Cooling capacity at −20 °C	4240 W
Power	380 V
Drive	self-powered (diesel engine) + 380 V
Price with installation	On request

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

Its own diesel engine plus 380 V mains connection when parked.

✓

For heavy-duty vans and refrigerated trailers.

✓

Use: trailers, heavy-duty vans.

Model page →Select →Self-powered + 380 V · price on request

Supra 1050

Body up to 50 m³ at −20 °C

Self-powered unit

Specifications

Body volume at −20 °C	up to 50 m³
Cooling capacity at 0 °C	7800 W
Cooling capacity at −20 °C	5000 W
Power	380 V
Drive	self-powered (diesel engine) + 380 V
Price with installation	On request

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

Its own diesel engine plus 380 V mains connection when parked.

✓

For heavy-duty vans and refrigerated trailers.

✓

Use: trailers, heavy-duty vans.

Model page →Select →Self-powered + 380 V · price on request

Supra 1150

Body up to 55 m³ at −20 °C

Self-powered unit

Specifications

Body volume at −20 °C	up to 55 m³
Cooling capacity at 0 °C	8900 W
Cooling capacity at −20 °C	5400 W
Power	380 V
Drive	self-powered (diesel engine) + 380 V
Price with installation	On request

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

Its own diesel engine plus 380 V mains connection when parked.

✓

For heavy-duty vans and refrigerated trailers.

✓

Use: trailers, heavy-duty vans.

Model page →Select →Self-powered + 380 V · price on request

Supra 1250

Body up to 65 m³ at −20 °C

Self-powered unit

Specifications

Body volume at −20 °C	up to 65 m³
Cooling capacity at 0 °C	9100 W
Cooling capacity at −20 °C	6300 W
Power	380 V
Drive	self-powered (diesel engine) + 380 V
Price with installation	On request

Features

✓

Carrier is the world leader in transport refrigeration — reliability and service life.

✓

Its own diesel engine plus 380 V mains connection when parked.

✓

For heavy-duty vans and refrigerated trailers.

✓

Use: trailers, heavy-duty vans.

Model page →Select →Self-powered + 380 V · price on request

* Prices are in tenge including installation, for reference only, and do not constitute a public offer within the meaning of Art. 395(5) of the Civil Code of Kazakhstan.

Product line

Carrier Xarios

The third Carrier line besides the engine-driven Citimax and the self-powered Supra. It is already fitted on COND vehicles — the projects below show the version and the chassis. Check the specifications of a particular model with the manager: selection goes by body volume and the temperature required.

Model	Version	COND vehicle
Carrier Xarios 350	electric drive from a 380 V supply	A refrigerated body on a KIA Bongo K4000
Carrier Xarios 600 MT	multi-temperature, an evaporator per compartment	A multi-temperature van on a GAZelle Next

Two temperature modes in one body:How a multi-temperature van is built

How to choose a unit

Engine-driven units (Citimax, D5–D7) take power from the chassis engine via the compressor — compact, needing no separate fuel, suited to city and medium-length legs.

Self-powered units (Supra) have their own diesel engine — they run independently of the chassis engine when parked and on the move, essential for long routes and multi-temperature transport.

We install and service Carrier units both as part of new bodies and when converting vans already in service.

Project examples — Carrier at work

Real COND trucks with Carrier equipment installed — different chassis and body types.

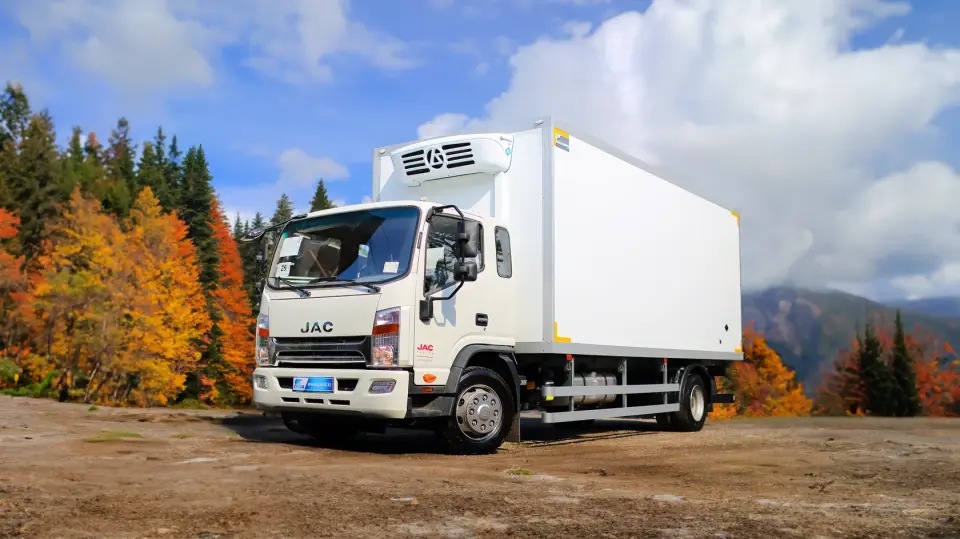

A JAC N90 with a Carrier unit — a finished COND reefer

Reefer on a JAC N90Carrier Citimax 500

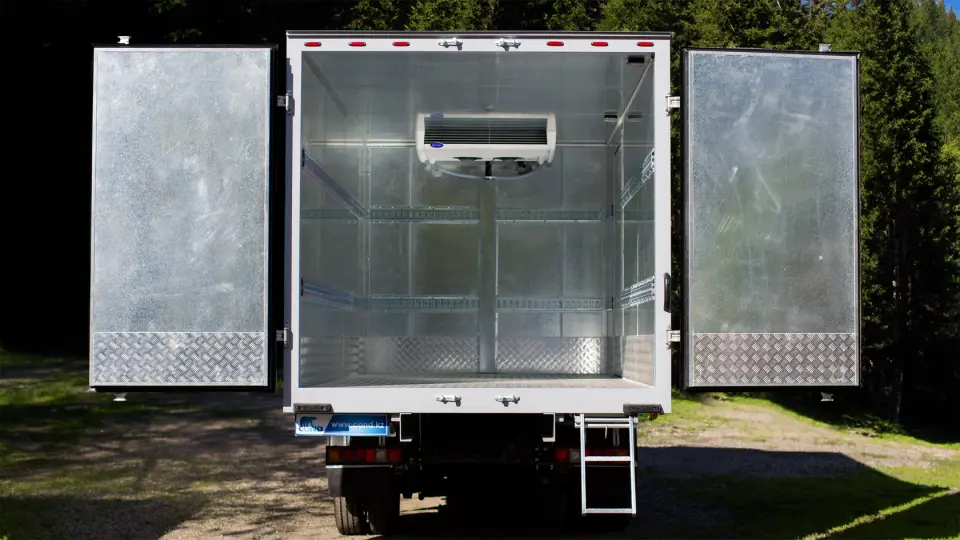

A reefer body with a Carrier evaporator inside — a finished COND build

Evaporator inside the bodyCarrier, view from inside

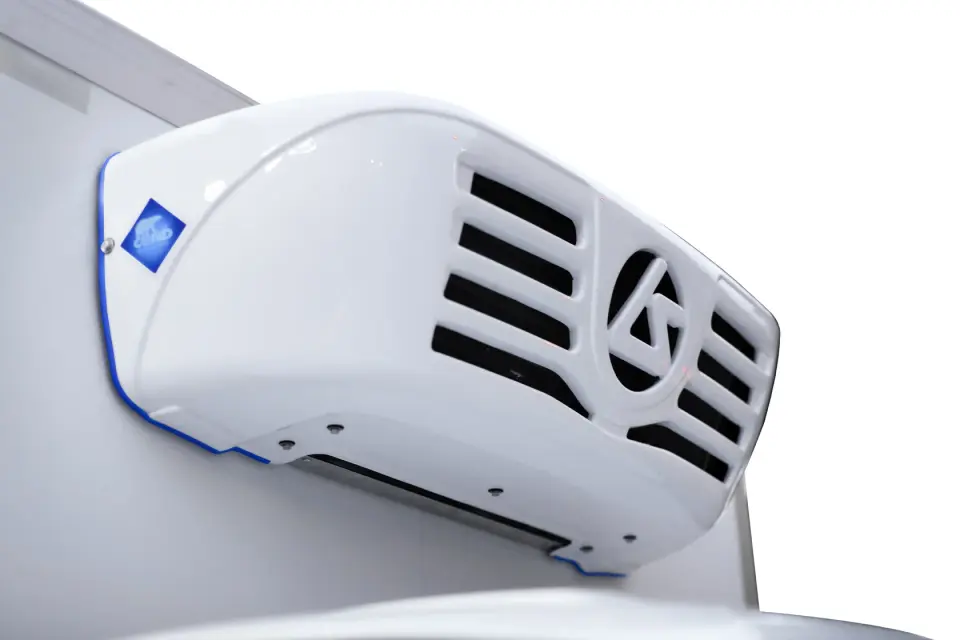

Installation on a COND bodyCarrier, close-up

A Kia Bongo K2500 reefer with a Carrier Citimax 280 unit

Kia Bongo K2500 reeferCarrier Citimax 280

A FAW 1027 T80 reefer with a Carrier Citimax 280 unit

FAW 1027 (T80) reeferCarrier Citimax 280

Body requirements for installing a refrigeration unit

The base van must be isothermal and built of sandwich panels — an ordinary metal van will not hold the cold.

Insulation thickness for Kazakhstan’s climate

In summer, outside temperatures in Kazakhstan reach +40 °C, so the sandwich panel thickness is chosen with a margin for the required inside duty.

Airtightness and seals

Doors are sealed with an isothermal profile of at least three chambers — a single-chamber profile holds the cold noticeably worse. All body joints are insulated.

Wall material and no thermal bridges

Walls are sandwich panels only: a clad metal or reinforced plastic outer skin with an extruded polystyrene or polyurethane core.

Floor and unit reinforcement

The floor must be flat and sealed — chequered aluminium or poured polyurethane wash easily and take the load. Reinforcement is provided on the roof or front wall for the unit.

How to choose the exact configuration

To select the right unit and body thickness, tell a manager what products you plan to carry (frozen, chilled, flowers, medicines) and your body volume.

Compressors:Compressor models — displacement, refrigerant, weight

FAQ

Frequently asked questions about Carrier

At −20 °C duty, a 20 m³ body is covered by the CITIMAX 500 or D5 (12 V and 24 V respectively, 5060–5300 W cooling capacity at 0 °C). Both models are available.

The Citimax takes power from the chassis engine via the compressor — it needs no separate fuel and suits city and medium legs, with bodies up to 38 m³.

Indicative retail prices with installation range from 1,980,000 KZT for the CITIMAX 280 (body up to 9 m³) to 4,500,000 KZT for the CITIMAX 1000 (body up to 38 m³). Self-powered Supra prices — on request.

Yes, COND is the official Carrier transport refrigeration dealer in Kazakhstan, installing and servicing Citimax and Supra units on new bodies and conversions.
