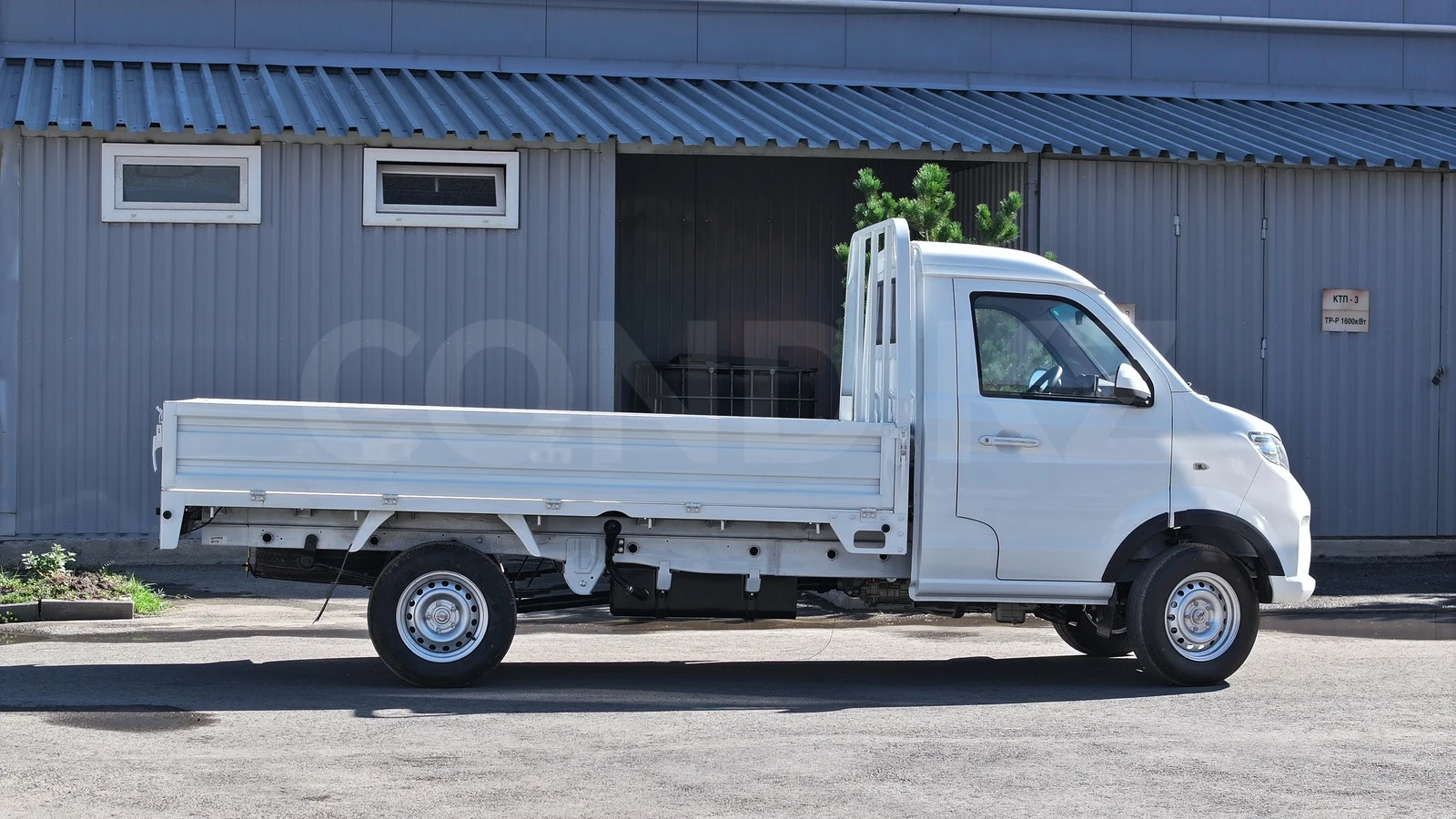

Drop-side platform on a Shineray T30 chassis
A finished vehicle in stock — a Shineray T30 the side in DeLux trim. Available for immediate collection; the manager will confirm availability.
A light the side truck for urban delivery: category B, so any driver with an ordinary licence can take the wheel; a 3,050 × 1,640 mm platform with sides that drop on three sides; 1,300 kg payload. Chassis specifications are on the page Shineray T30, and our other the side platforms are in the bodies section.
Chassis
| Make / model | Shineray T30 (flatbed) |
| Engine | SWJ16 petrol, 1,597 cc |
| Power | 91 kW (124 hp), 160 N·m torque |
| Gearbox | manual, 5-speed |
| Drive | 4×2, rear-wheel drive |
| Gross weight | 2,490 kg |
| Chassis payload | 1,300 kg |
| Vehicle category | B |
| Vehicle dimensions | 5,080 × 1,730 × 2,020 mm |
| Warranty | 1 year or 30,000 km |
Chassis specifications are on a separate page.
Platform
| Body type | flatbed |
| Platform inside dimensions | 3,050 × 1,640 × 370 mm |
| Sides | drop-down on three sides |
| Cab | all-metal cab, 2 doors, 2 seats |
| Specification | DeLux: air conditioning, eco-leather, multimedia (USB, Bluetooth), two airbags |
| Price of the ready vehicle | 8,100,000 ₸ |
More about the design on the page flatbed platforms.
How many pallets fit
A standard 1,200 × 800 mm europallet, single tier, no restacking. Internal dimensions with a 50 mm laying allowance — a pallet will not go in dead tight.
Inside 3 050 × 1 640 × 370 mm
The layout scheme is on the right: it shows how the rows sit and how much room is left.
Who the Shineray T30 the side suits
Shineray T30 the side is the lightest step up: 2,490 kg gross, so a category B licence, and any employee with an ordinary licence can drive it. No need for a category C driver, who costs more and is harder to find. A 1.6-litre SWJ16 petrol engine with 124 hp and 160 N·m, a five-speed manual, rear-wheel drive and a 55-litre tank — a city vehicle, not a fully loaded highway hauler.

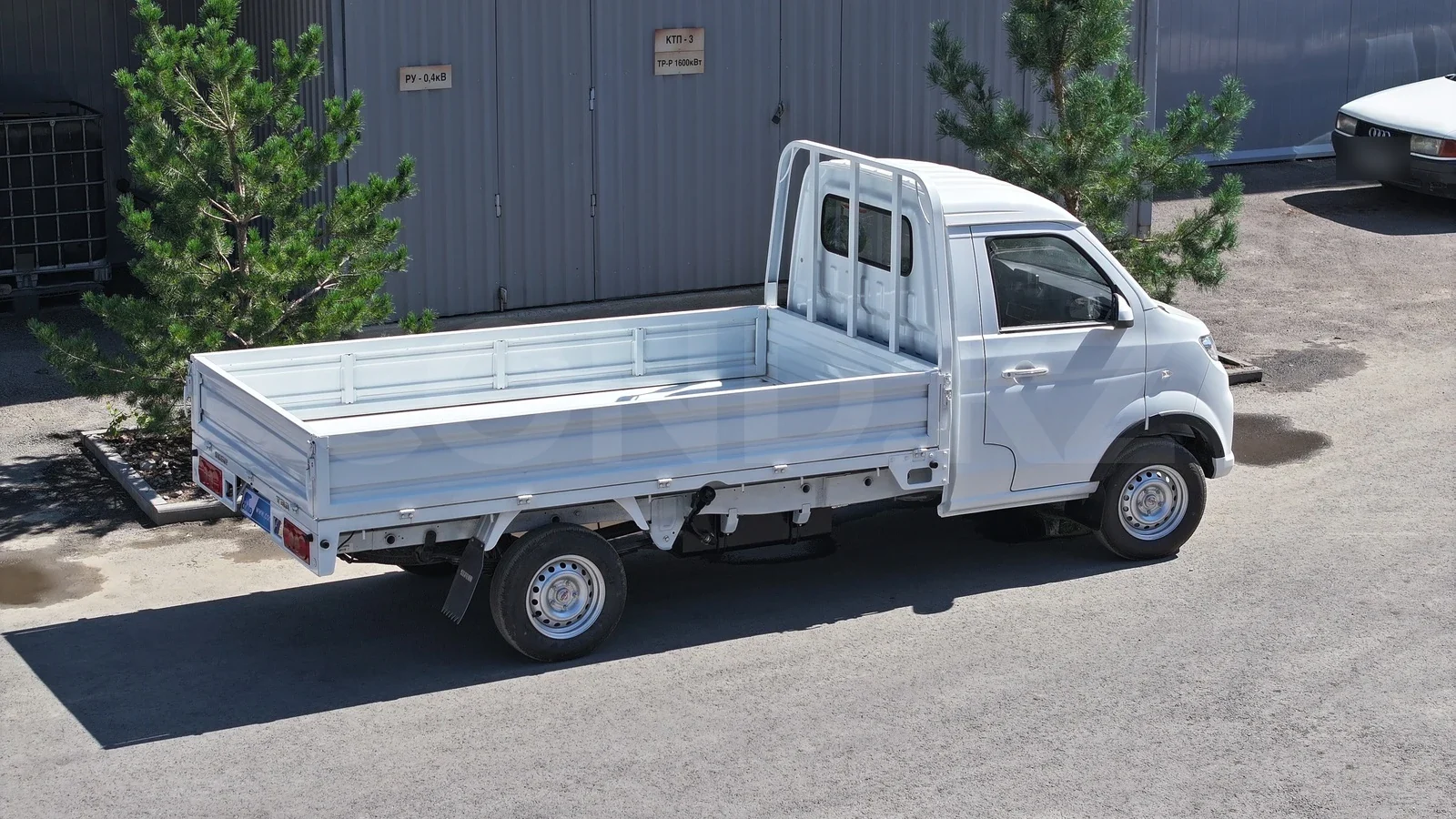

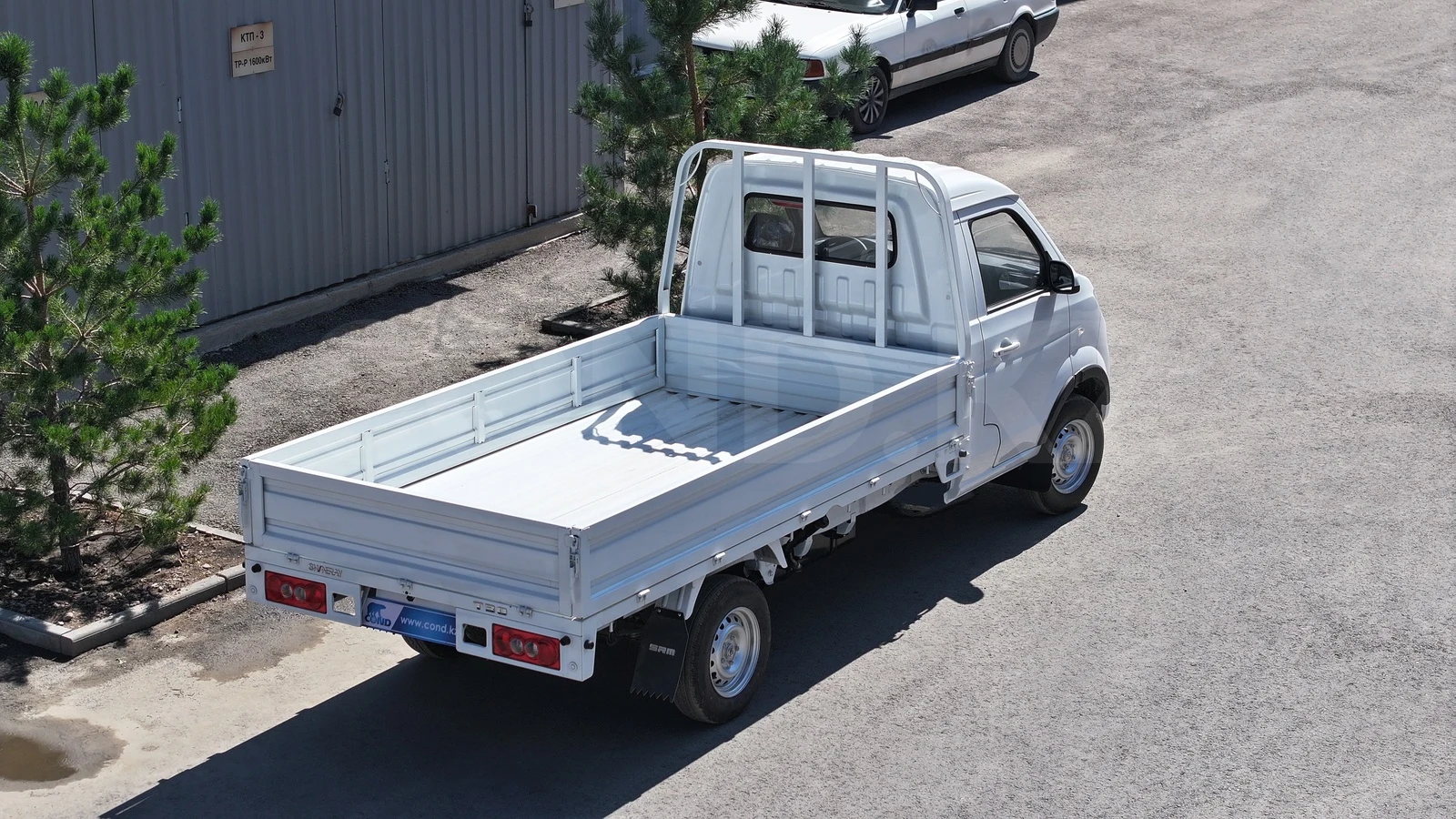

The platform and what fits on it
The platform measures 3,050 × 1,640 × 370 mm inside, with sides that drop on three sides — left, right and rear. That is two euro pallets side by side, or long loads up to three metres. Payload is 1,300 kg — the same as the GAZelle Next, but the T30 is shorter, lighter and noticeably cheaper to run in town. Sides that drop on three sides mean a loader can work from any side instead of reaching over the tailgate.
What else we can fit on top
On the same chassis we build a dry freight body, an insulated body and reefer — if you do not always need open sides and volume matters more. On request the the side gets stanchions for pipe and profile, lashing rails and rings, and a tilt with a frame. We make and sell the hardware separately — see components.
The vehicle is already in stock
This is not a build-to-order: a specific vehicle in DeLux trim (air conditioning, eco-leather, multimedia, two airbags) is standing on our yard in Almaty at 8,100,000 ₸, with a one-year or 30,000 km warranty. The manager will confirm availability and terms — leave a request or write on WhatsApp.
Similar vehicles
Our other projects in the “flatbed platform” category. All body types are in the “Vehicles” section.
Where the number comes from:How body capacity in pallets is calculated
The same one, made to order
The body is built on the customer’s chassis or supplied turnkey with the chassis.
| Lead time | from 14 working days |
| Warranty | 2 years on the body |
| Price | 8 100 000 ₸ |
