Shineray T30 — specifications of the light flatbed truck
Quote is based on body, chassis and temperature range.
Shineray T30 specifications
Per the Shineray commercial offer (dated 22.06.2026).
| Make / model | Shineray T30 (flatbed) |
| Platform type | flatbed, the side on 3 sides |
| Cab | all-metal cab, 2 doors, 2 seats |
| Engine | SWJ16 petrol, 1,597 cc |
| Power | 91 kW (124 hp) |
| Torque | 160 N·m |
| Emission class | EURO-5 |
| Gearbox | manual, 5-speed |
| Drive | 4×2, rear-wheel drive |
| Top speed | 120 km/h |
| Gross weight | 2,490 kg |
| Kerb weight | 1,190 kg |
| Payload | 1,300 kg |
| Dimensions L×W×H | 5,080 × 1,730 × 2,020 mm |
| Inner body size | 3,050 × 1,640 × 370 mm |
| Wheelbase | 3,250 mm |
| Track (front / rear) | 1,450 / 1,460 mm |
| Suspension | front McPherson coil, rear leaf springs (4 leaves) |
| Brakes | disc / drum, ABS, ESC, EPS |
| Tyres | 175/70 R14 LT, steel wheels (4 pcs) |
| Fuel tank | 55 l |
| Specification | DeLux: air conditioning, eco-leather, multimedia (USB, Bluetooth), 2 airbags, power windows, parking sensors and camera, spare wheel |
| Vehicle category | B |
| Warranty | 1 year or 30,000 km |
| Vehicle price (flatbed, ready) | 8,100,000 ₸ |
Body volume and pallet count for this chassis are worked out by the body calculator — allowing for the sandwich-panel thickness.
← All Shineray models · The price is for the ready flatbed vehicle. The body (van or refrigerated) is priced separately.

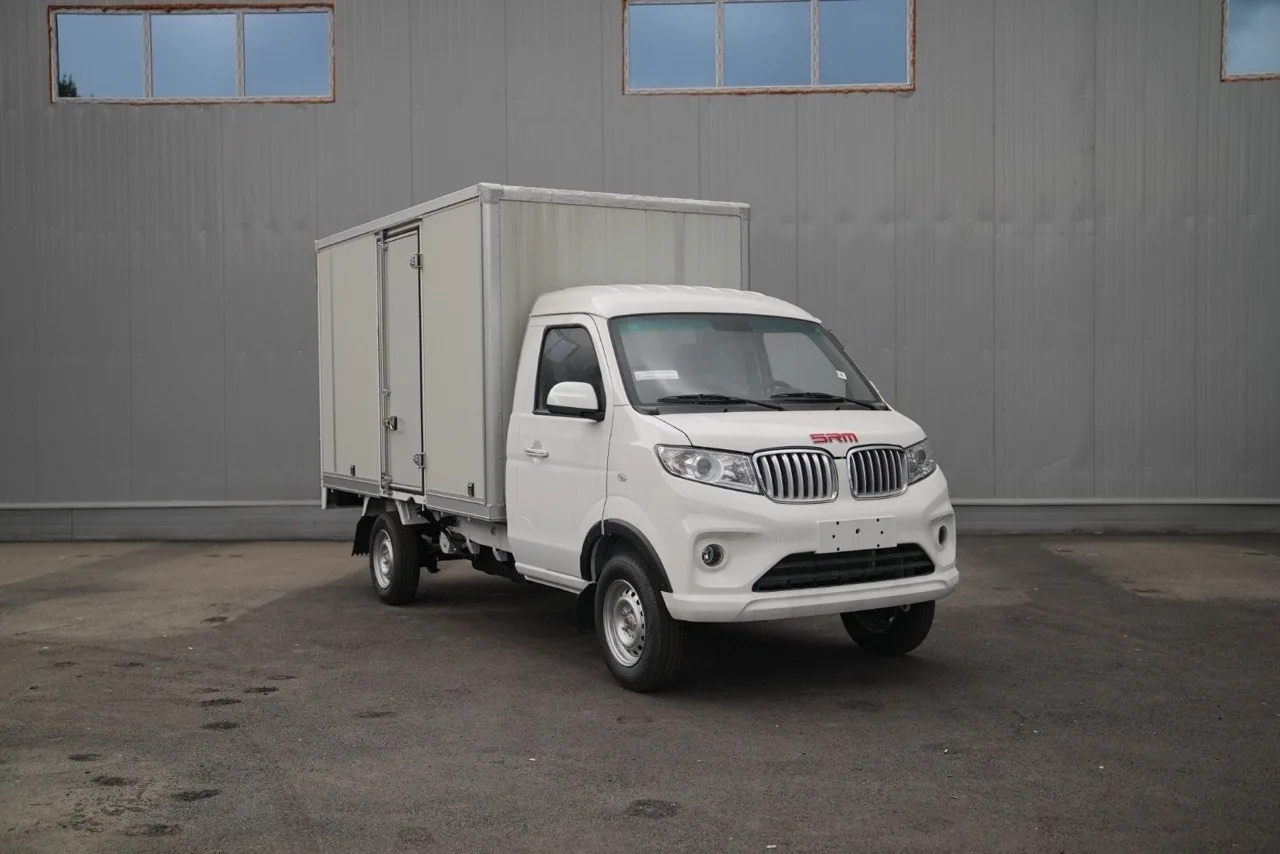

A van body on the Shineray T30
COND bodies already built on this chassis. The same one is made to order.

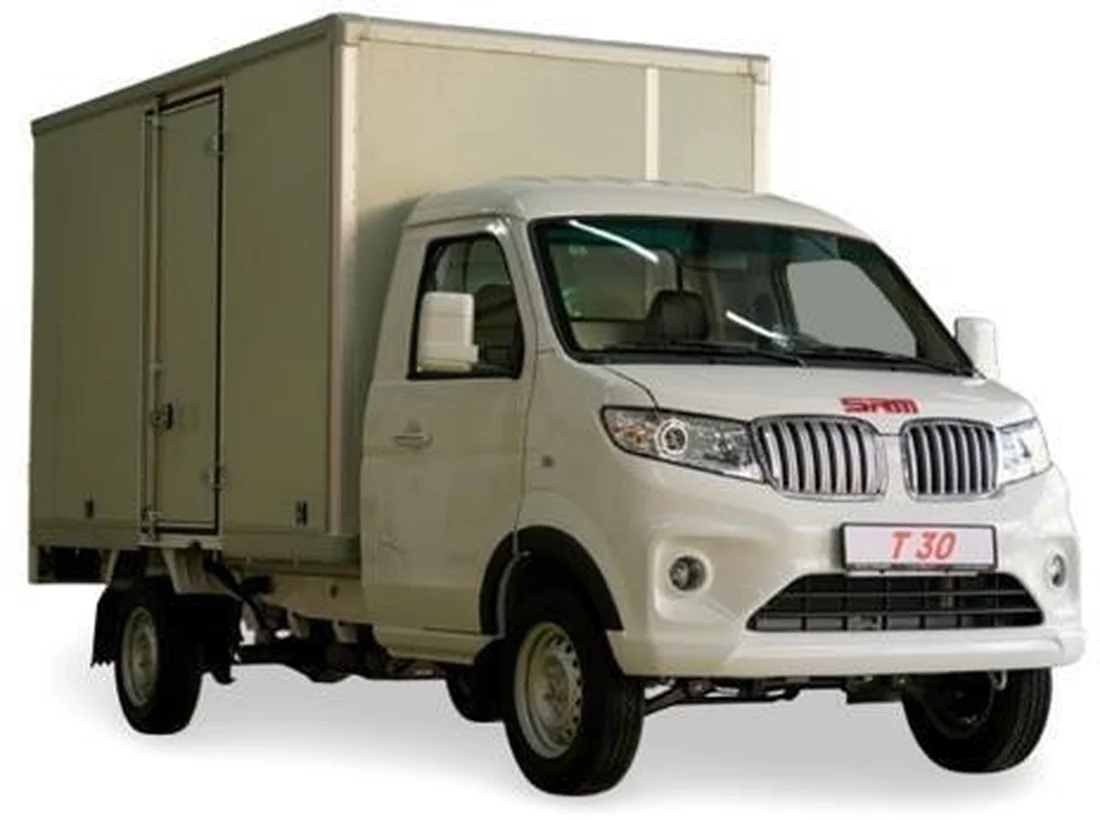

Factory dry-freight body on the Shineray T30
The second factory version of the same chassis. Data per the dealer’s offer of 22.06.2026.
| Inner van dimensions | 3,020 × 1,650 × 1,700 mm |
| Van volume | 8 m³ |
| Dimensions L×W×H | 5,080 × 1,735 × 2,630 mm |
| Payload | 1,180 kg |
| Kerb weight | 1,310 kg |
| Gross weight | 2,490 kg |
| Vehicle price (van, ready) | 8,600,000 ₸ |
Payload 1,180 kg against 1,300 kg on the flatbed version: the 120 kg difference is the mass of the body. The body is dry, without insulation — for goods that need no temperature control.
For temperature control this chassis takes an insulated body or reefer.
Which bodies COND builds on the Shineray T30
The ready flatbed is in stock. On the same chassis we build and mount a body ourselves, keeping the warranty.
FAQ
What licence do you need for the Shineray T30?
What is the Shineray T30's payload?
Can a van body be fitted on the Shineray T30?
Is there a warranty?
How much does the Shineray T30 cost?
Shineray T30 with COND bodies — photo gallery
The first four frames show the T30 the side standing on our yard. The rest are factory SRM T30 variants on which COND builds bodies and conversions in Almaty.
Click a photo to open it at full size.
What we have already built on this chassis
Versions from the dealer quotation
Ready Shineray vehicles priced per the dealer quotation of 22.06.2026. Each version has its own page with specifications.
