Foton Aumark S80 — chassis specifications and COND bodies

Cummins ISF3.8 diesel with 152 hp and 491 N·m. Gross weight 8,500 kg, chassis payload 5,155 kg.

Get a quote →WhatsApp

Quote is based on body, chassis and temperature range.

Message on WhatsApp +7 777 233 69 28

Foton Aumark S80 chassis specifications

Factory parameters of the Aumark S range.

Make / model	Foton Aumark S80
Engine	Foton Cummins ISF3.8s5154, diesel, Euro 5
Exhaust aftertreatment	SCR, 24.9 l AdBlue tank
Displacement	3,760 cc
Power	112 kW (152 hp) at 2,600 rpm
Torque	491 N·m at 1,200–1,900 rpm
Gearbox	6-speed manual, ZF 6S500
Gross weight	8,500 kg
Chassis payload	5,155 kg
Axle loads	front 2.85 t / rear 6.0 t
Wheelbase	3,800 mm
Overall length	6,920 mm
Chassis width / height	2,076 × 2,280 mm
Top speed	105 km/h
Fuel consumption	15.5 l/100 km
Fuel tank	120 l, aluminium
Brakes	air, front discs, rear drums
Safety	ABS, EBD, ESP, driver airbag, brake assist
Tyres	215/75R17.5, 6+1
Electrical system	24 V, 2 × 100 Ah batteries
Cab	single, 2,060 mm wide
Minimum turning radius	7.1 m
Warranty	5 years or 200,000 km
Vehicle category	C

Body volume and pallet count for this chassis are worked out by the body calculator — allowing for the sandwich-panel thickness.

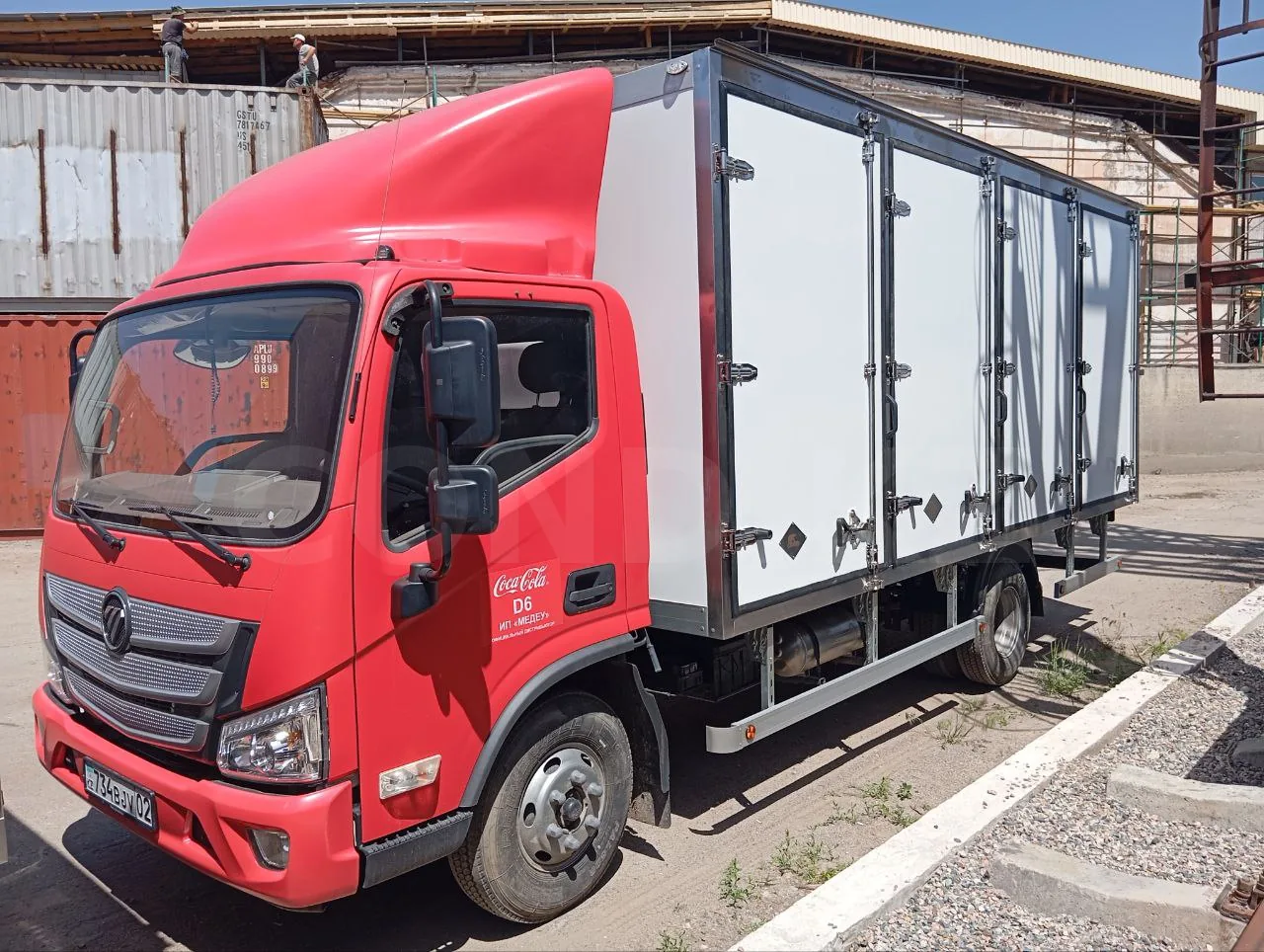

Which bodies we fit on the Foton Aumark S80

We build and fit the body ourselves, preserving the factory chassis warranty.

All bodies for Foton — on the brand page. Refrigerated units are built with the cooling unit Carrier, Elinge or Kaida — selected to match the body volume.

FAQ

What engine does the Foton Aumark S80 have?

A 3,760 cc Foton Cummins ISF3.8s5154 diesel: 112 kW (152 hp) at 2,600 rpm and 491 N·m between 1,200 and 1,900 rpm, Euro 5 with SCR. ZF 6S500 six-speed manual gearbox.

What is the S80 payload?

Gross weight is 8,500 kg and the dealer's quotation gives a chassis payload of 5,155 kg. Permitted axle loads are 2.85 t front and 6.0 t rear. The body weight comes out of that allowance.

What licence does the S80 need?

Category C — the 8,500 kg gross weight exceeds the 3,500 kg threshold.

How does the S80 differ from the S35?

The S80 is built for far heavier loads: 8,500 kg gross against the S35's 3,500 kg, a 3.8-litre diesel instead of 2.8, a six-speed gearbox instead of five and 17.5-inch wheels. Its wheelbase is longer — 3,800 mm against 3,360 mm — so there is more room for the body.

How much does a body on a Foton S80 cost?

The price is made up of the body and, for a refrigerated unit, the cooling equipment. We quote for your exact configuration. The chassis is bought separately from the dealer. Leave a request and a manager will send you the figures.

Is the chassis warranty retained?

Yes. We fit the body to the manufacturer's procedure and issue the paperwork required to register the design change.
