Home / JAC N56
JAC N56 — chassis specifications and COND bodies
Medium-duty truck with best-in-class payload: 3,445 kg, 150 hp diesel, 6-speed manual. Bodies from 4.2 to 4.6 m. Below are the factory specifications and the van configurator: build a body for your task and get the volume and pallet capacity.
Quote is based on body, chassis and temperature range.
Chassis specifications
| Engine | HFC4DE1-1D diesel, Common Rail + SCR + DOC, Euro 5 |
| Engine displacement | 2,746 cc |
| Power | 150 hp (110 kW) at 3,200 rpm |
| Torque | 355 N·m at 1,800–2,600 rpm |
| Fuel tank | 100 l |
| Gearbox | manual, 6-speed (ML642A) |
| Wheelbase | 3,360 mm |
| Chassis kerb weight | 2,155 kg |
| Chassis payload | 3,445 kg |
| Gross weight | 5,600 kg |
| Vehicle category | C |
| Top speed | 110 km/h |
| Tyres | 205/75R17.5 |
| Brakes | hydraulic, ABS; front discs, rear drums |
| Specification | ABS, electric windows, central locking, heated mirrors, exhaust brake, Kazakhstan adaptation (fuel-filter heating, cab insulation) |
| Chassis warranty | 3 years or 200,000 km |
| Mounting length | 4,295 mm |
Body volume and pallet count for this chassis are worked out by the body calculator — allowing for the sandwich-panel thickness.
Specifications depend on the batch and configuration. This does not constitute a public offer.
COND superstructures on the JAC N56
Eight body types we fit on the JAC N56 chassis — with the factory warranty preserved.

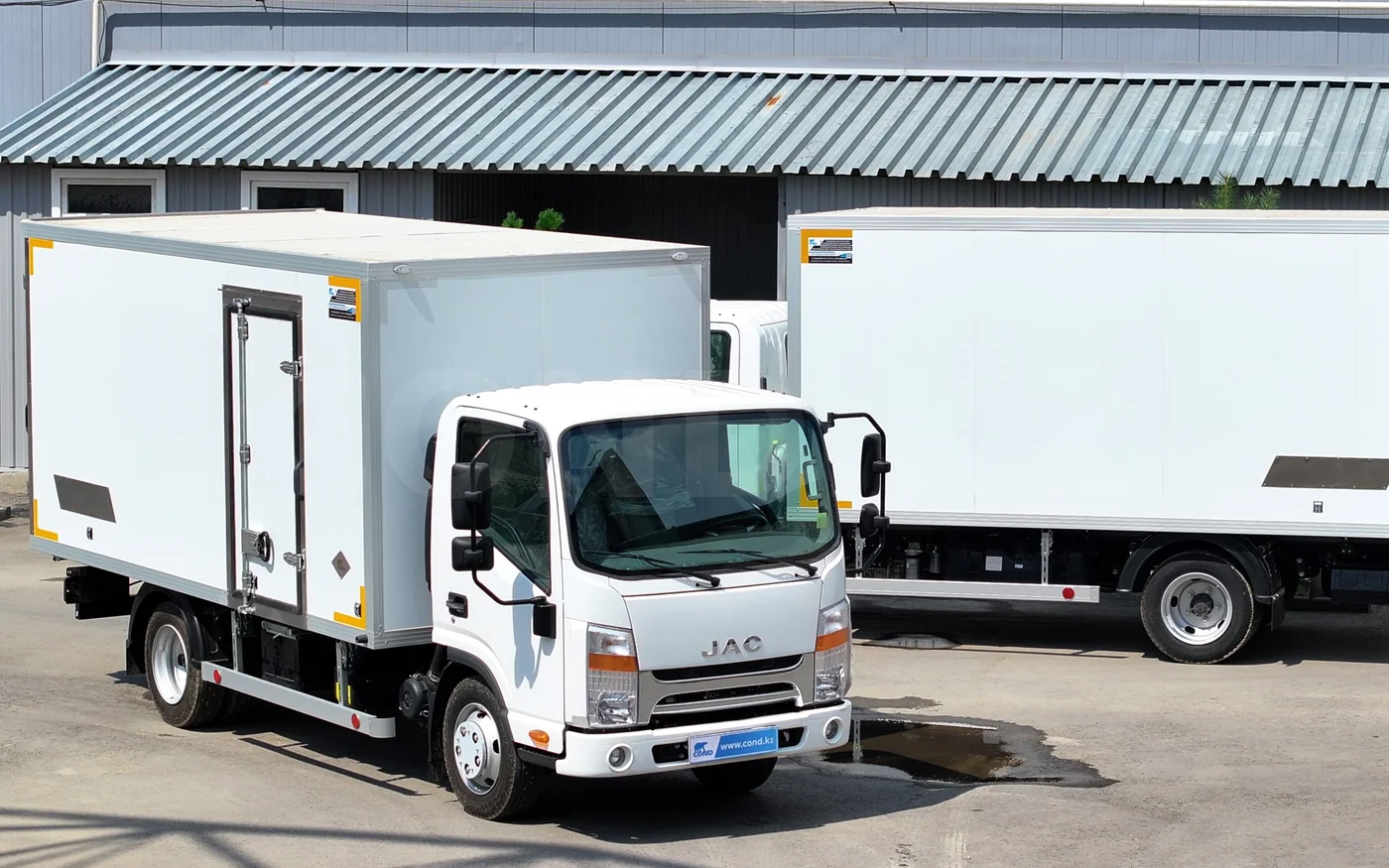

Dry-freight body

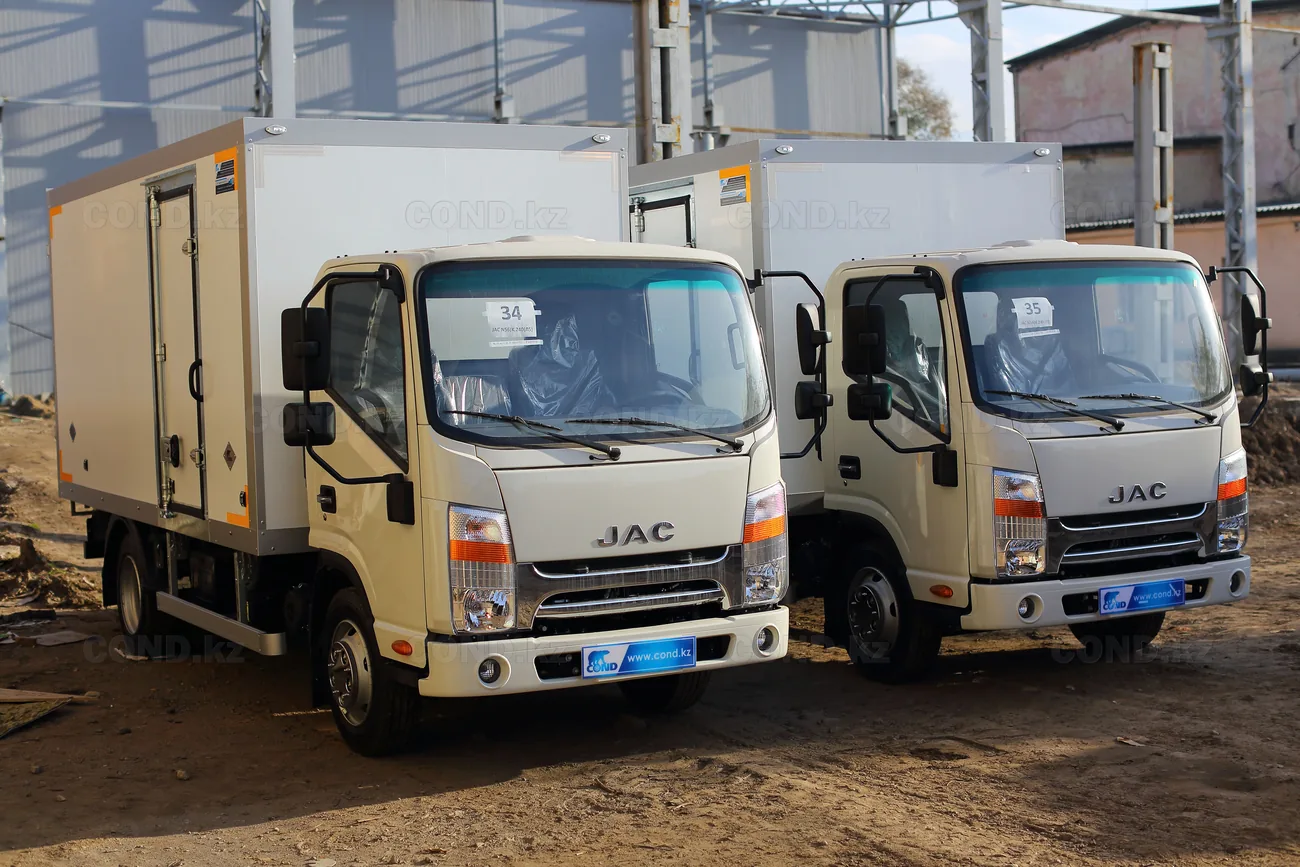

Specifications →An insulated van

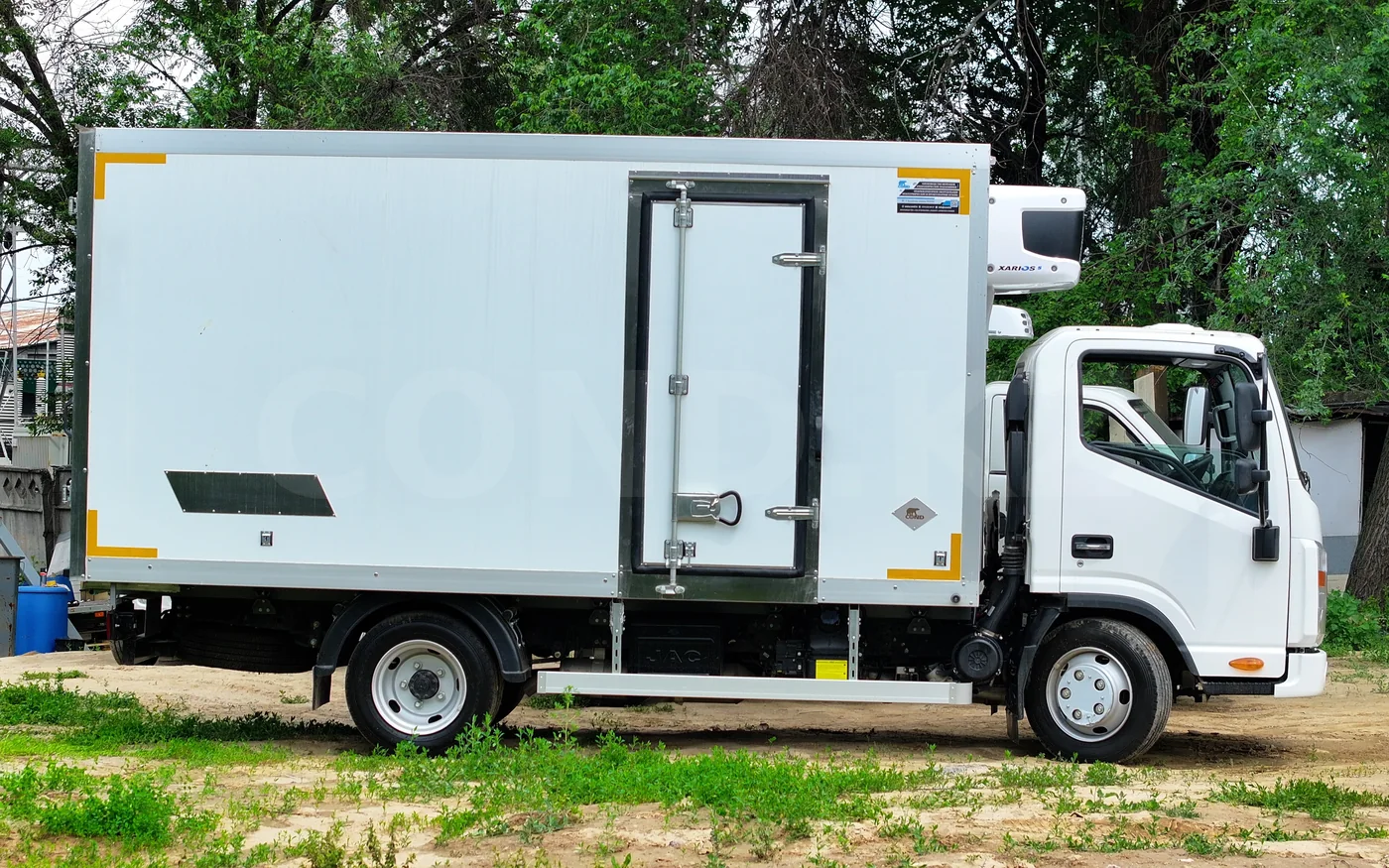

Specifications →Refrigerated body

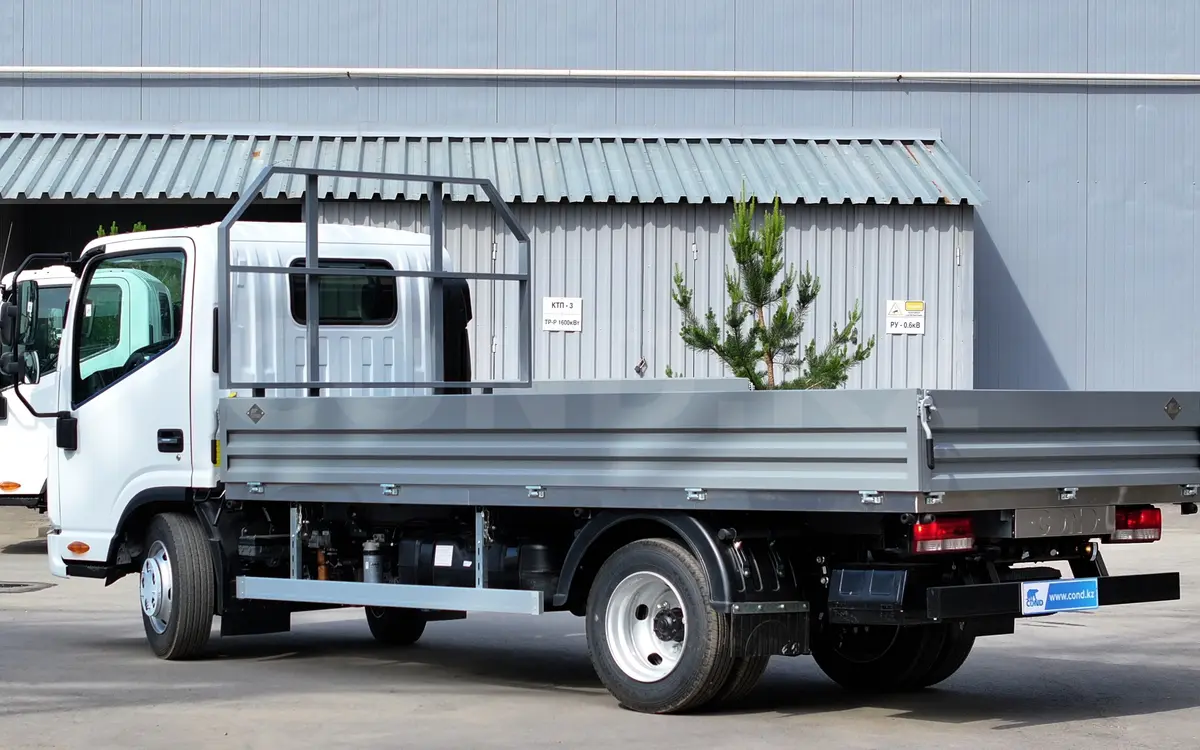

Specifications →Dropside platform

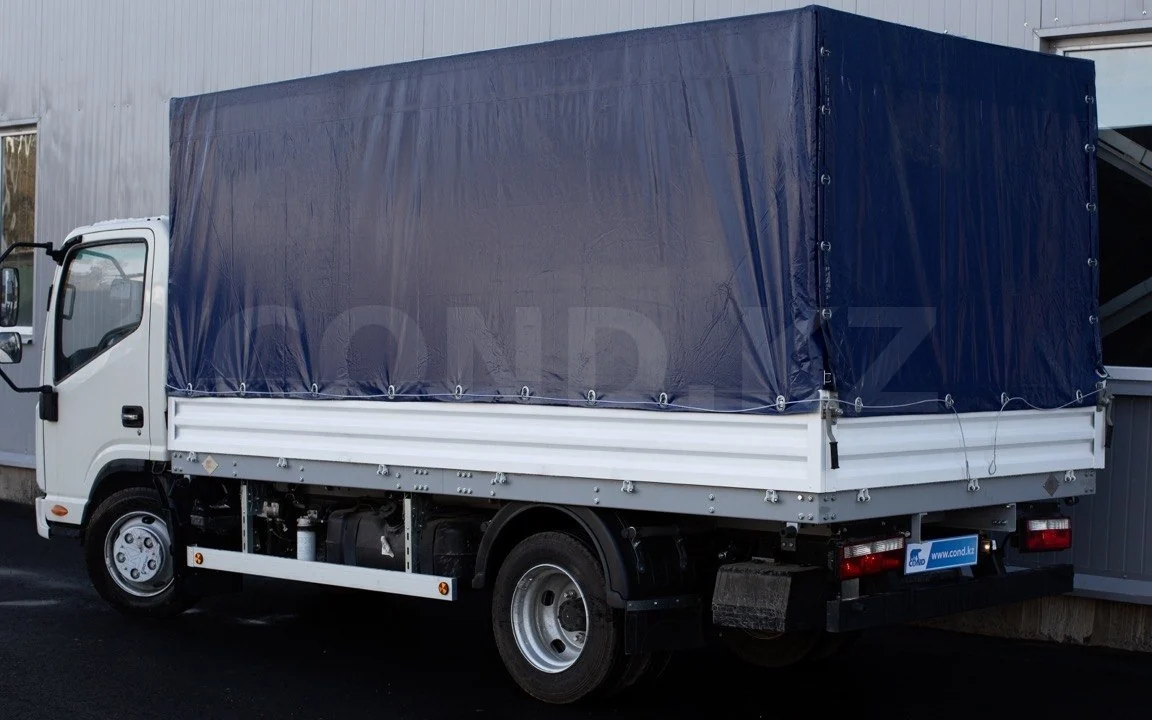

Specifications →Drop-side with tilt

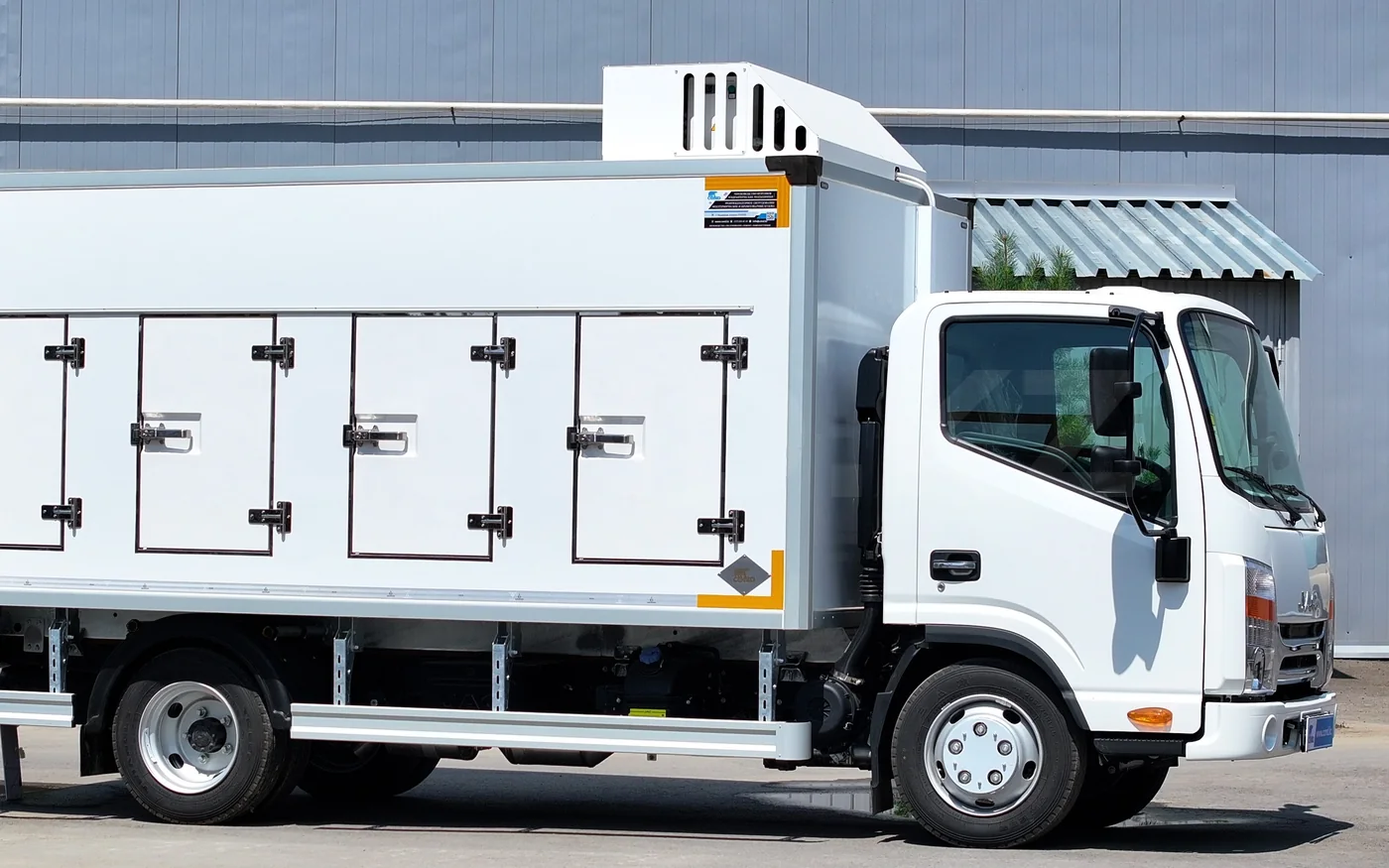

Specifications →Eutectic body
Specifications →Curtainsider
Specifications →Bakery van
Specifications →Body configurator for the JAC N56
Choose a preset or build your own — volume and pallet capacity recalculate automatically.
Estimate only: inner dimensions = outer minus two panel thicknesses; capacity is per 1200×800 mm europallet, not counting wheel arches. The exact spec and price are calculated by COND's engineering department on request.
Request a van → Compare with GAZelle Next →
We build every body from our own materials: components and hardware — locks, hinges, seals and buffers — also available separately, for repairs.
A van body on the JAC N56
COND bodies already built on this chassis. The same one is made to order.
JAC N56 video reviews
Reviews of COND bodies on the JAC N56 chassis — more N56 videos →
▶
▶
▶
▶
▶
▶
▶
▶JAC N56 with COND bodies — photo gallery
COND van bodies and platforms on the JAC N56 chassis — manufactured in-house in Almaty.
Comparisons on the blog:JAC N35 or JAC N56 — the line between categories B and C
Where the number comes from:How body capacity in pallets is calculated
A body for refrigeration:A refrigerated body on JAC — the range and the units
FAQ
What is the maximum body that fits on JAC N56?
How many pallets fit in a van on JAC N56?
What licence do you need for a JAC N56?
Is the JAC warranty preserved after a van is fitted?
