Eutectic “ice-cream” van on a JAC N56, built by COND
⚪ Completed
Eutectic ice-cream van on a JAC N56 chassis
category C−33 °C4+4 side doors
⚖ payload 3,445 kg↔ body 4,200 mm
On this one the unit sits inside the body. There is the same ice-cream van on a JAC N56 with a roof-mounted unit — a roof-mounted unit does not eat into usable volume and simplifies servicing.
An ice-cream van on a medium-duty diesel chassis: eight compartments with side doors and nearly twice the payload margin of a GAZelle. This option is chosen when a shift has to move more volume and the route leaves the city.
Chassis
| Make / model | JAC N56 |
| Engine | HFC4DE1-1D diesel, Common Rail + SCR, Euro 5 |
| Power | 150 hp (110 kW) |
| Gearbox | manual, 6-speed |
| Wheelbase | 3,360 mm |
| Vehicle category | C |
| Chassis payload | 3,445 kg |
Chassis specifications are on a separate page.
Van
| Body type | eutectic (ice-cream van) — deep freezing |
| Unit position | inside the body |
| Body length | 4,200 mm |
| Doors | 4+4 side compartment doors |
| Panel thickness | sides 120 mm, floor and roof 140 mm |
| Temperature duty | down to −33 °C (eutectic plates) |
| Charging the plates | from a 380 V supply at the depot, 8–10 hours |
More about the design on the page ice-cream vans.
Video
This vehicle on video
A walk-around of this vehicle from our YouTube channel.
How this body is built
The project is based on a JAC N56 chassis with a 3,360 mm wheelbase. The engine is HFC4DE1-1D diesel, Common Rail + SCR, Euro 5, 150 hp (110 kW).
This is a eutectic (ice-cream van) — deep freezing; externally the body is 4,200 mm.
Doors: 4+4 side compartment doors.
Operating range: down to −33 °C (eutectic plates).
Why it is built this way
A side door changes distribution logistics: at each stop you open it rather than the whole rear portal — less cold escapes and the truck can park tight against its neighbour.
What is in the photos
- The vehicle by the workshop COND

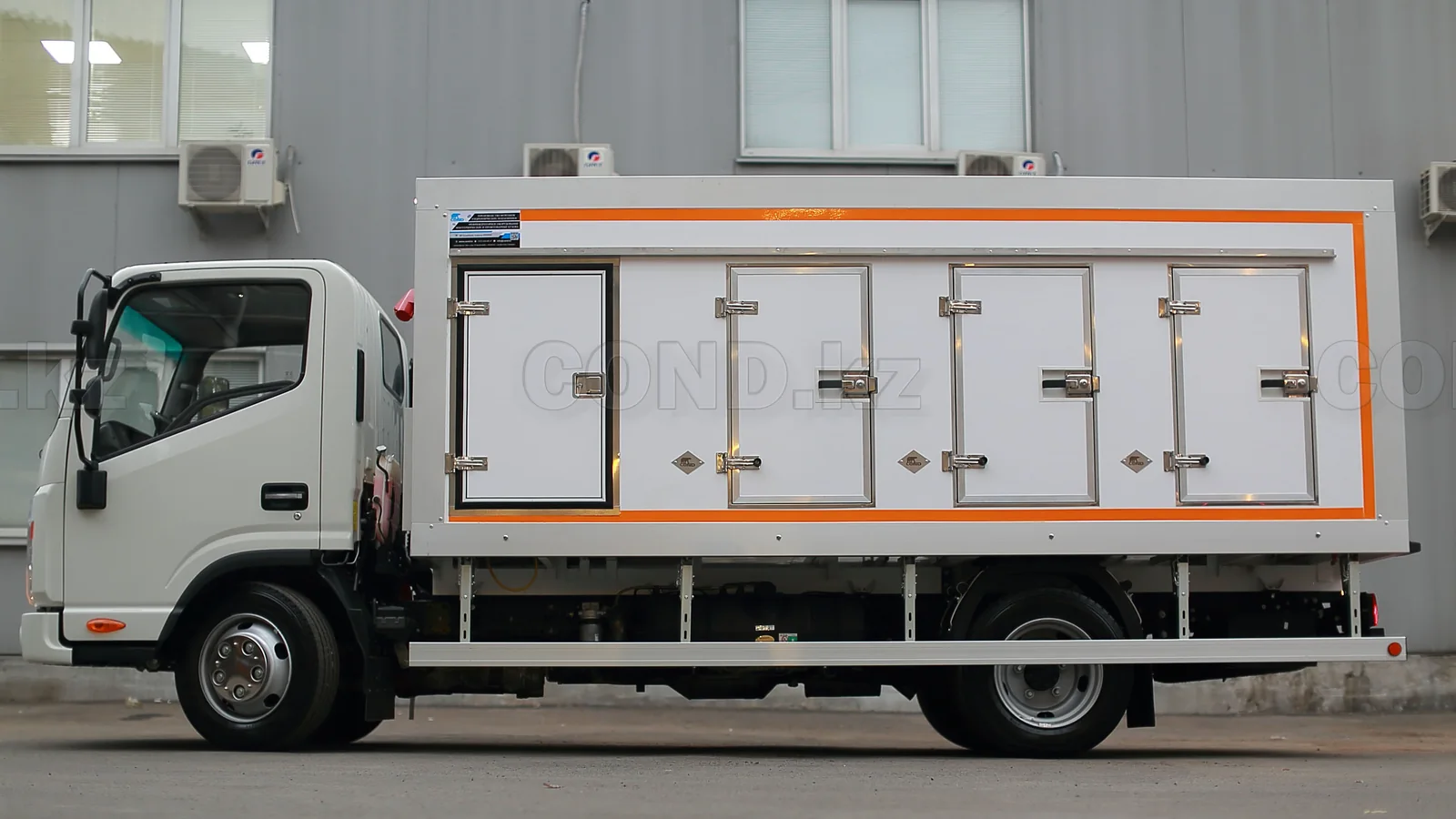

- Body and cab from the side

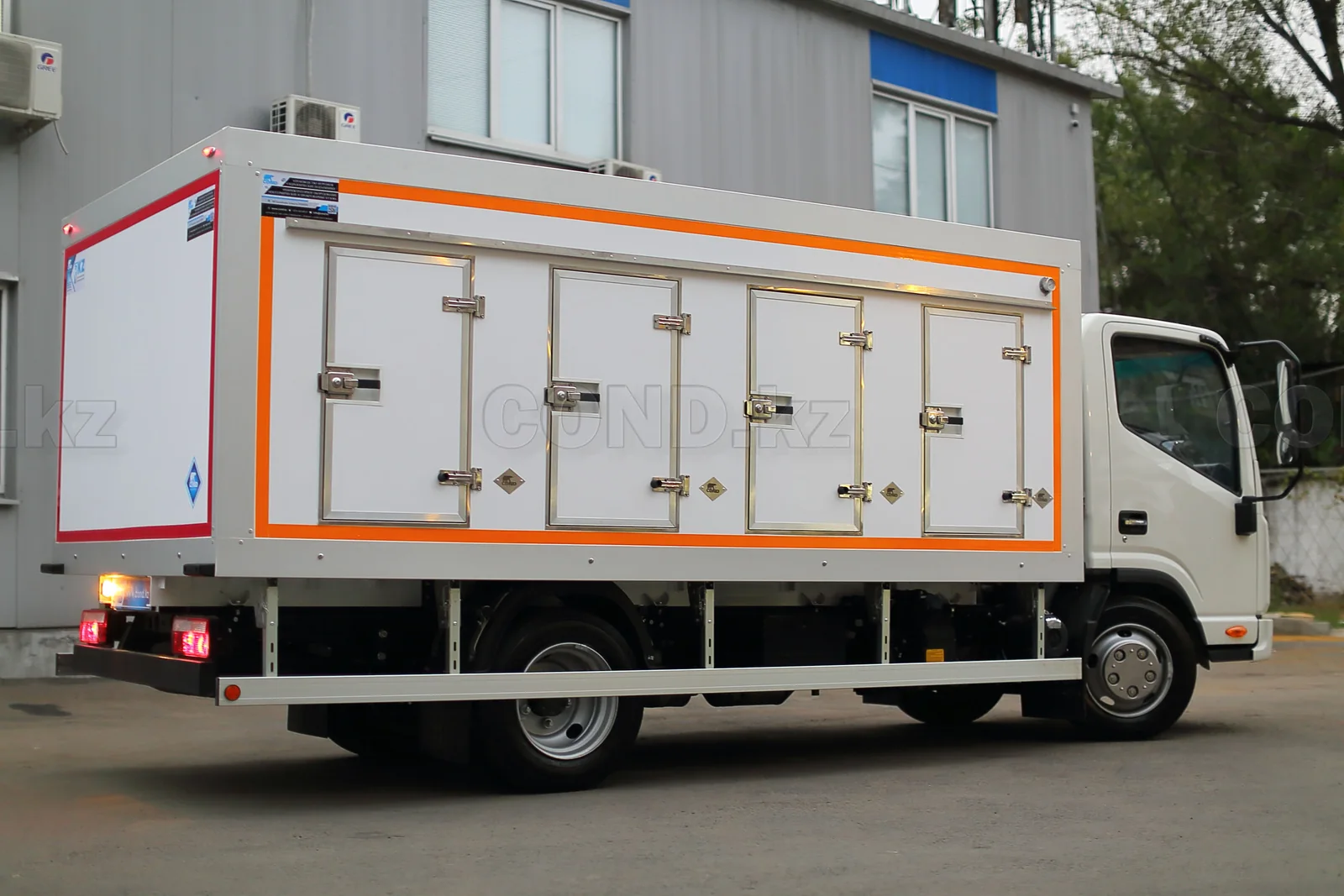

- The whole side, rear three-quarter view

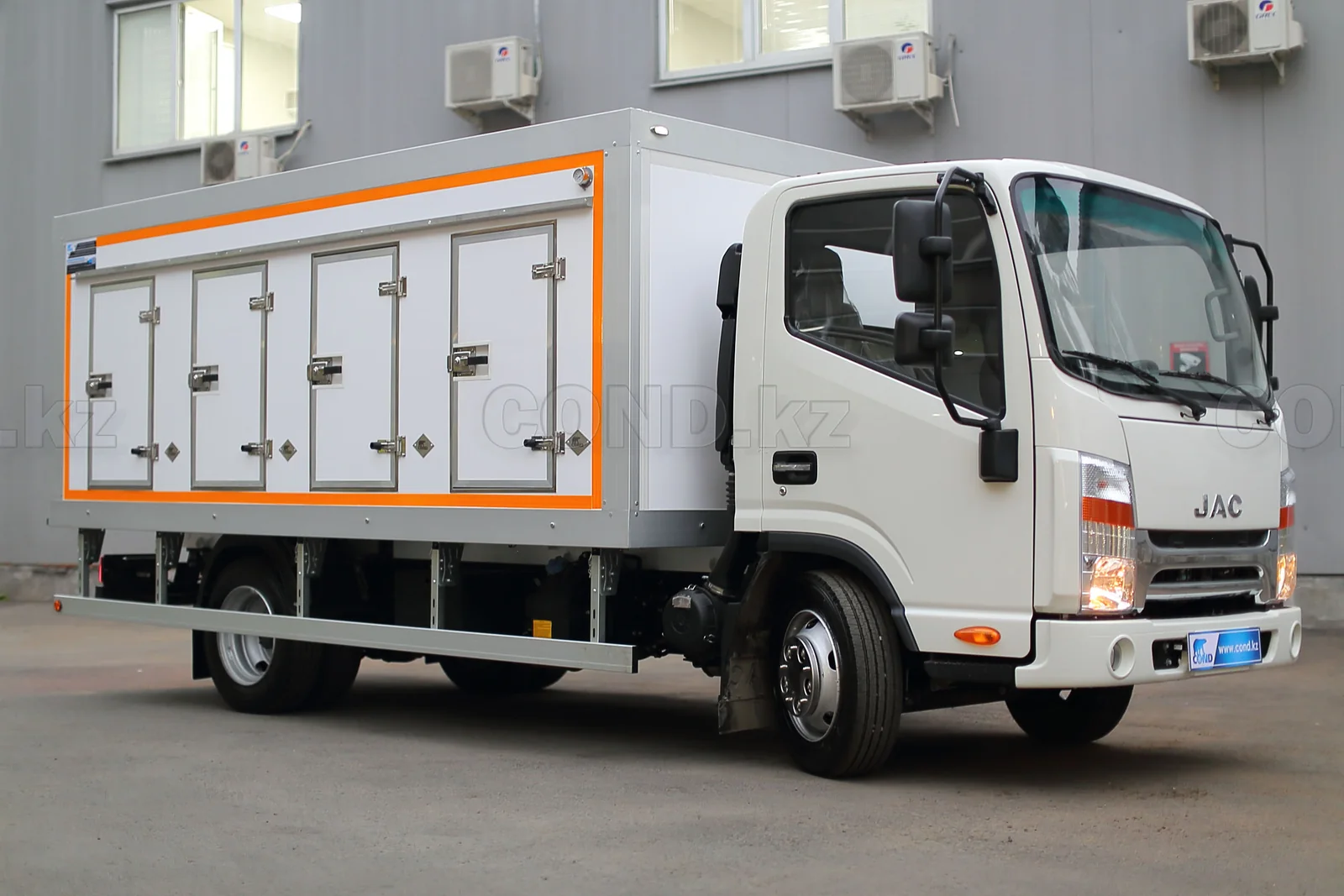

- Front three-quarter view

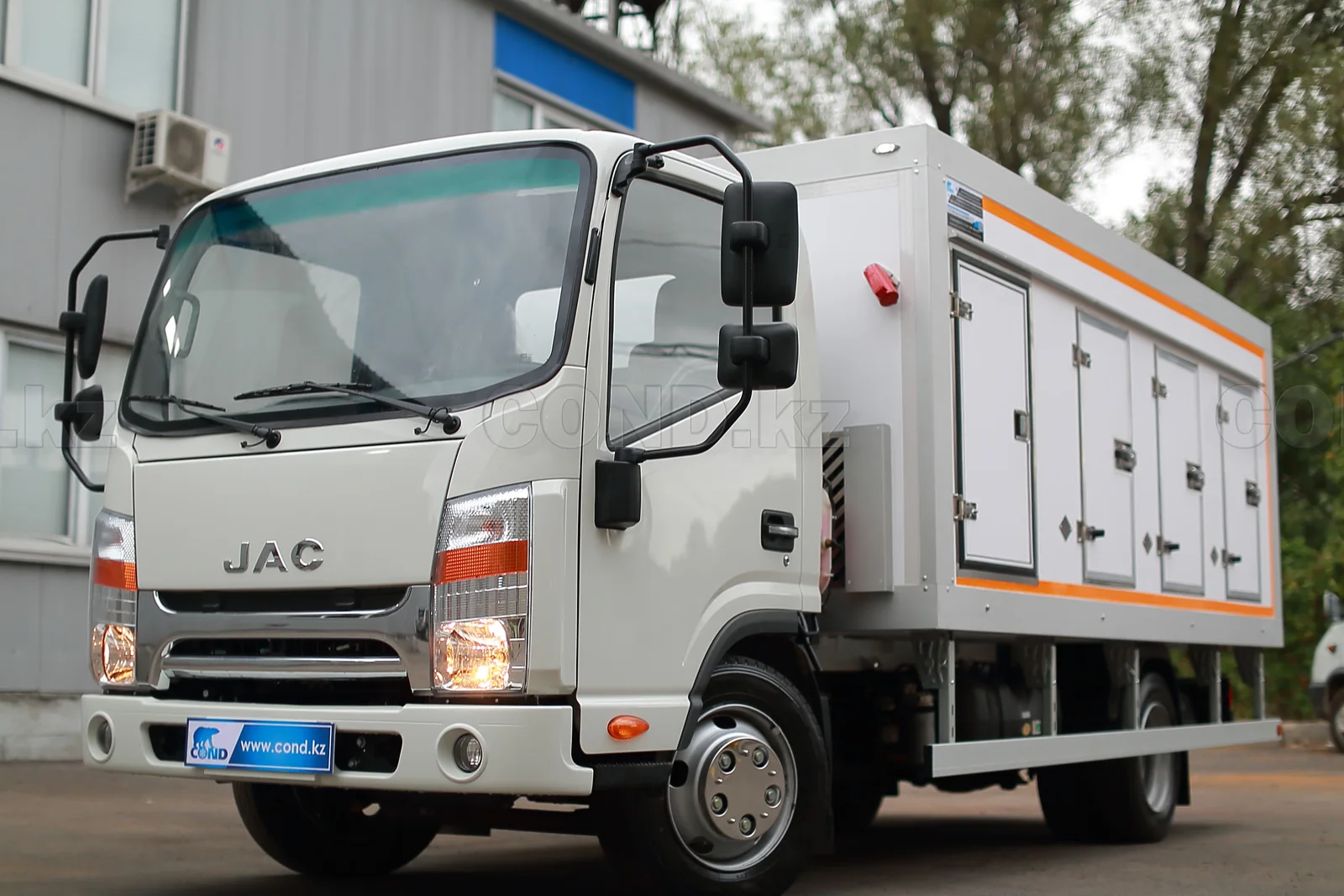

- The cab JAC N56 and body

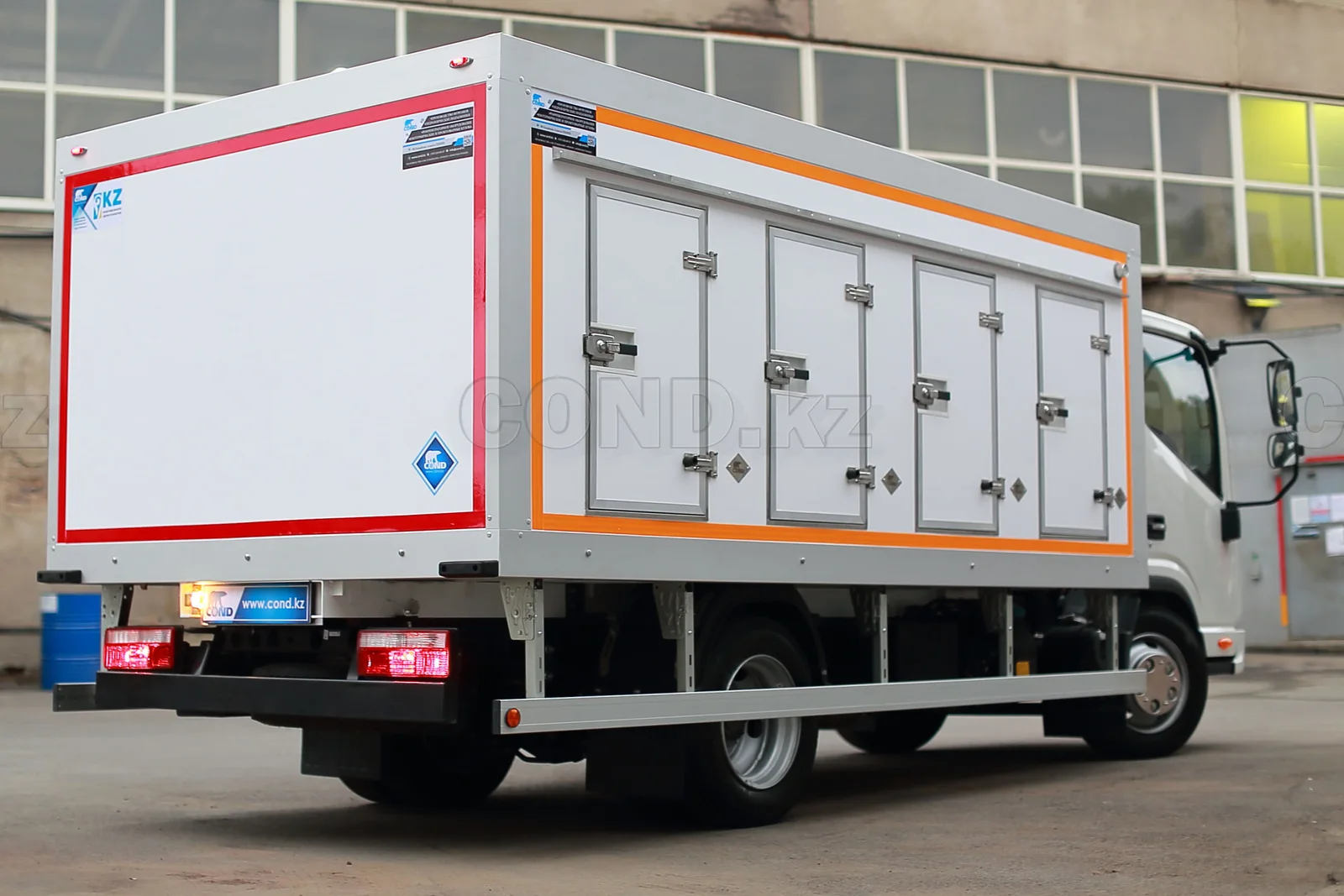

- Rear of the body

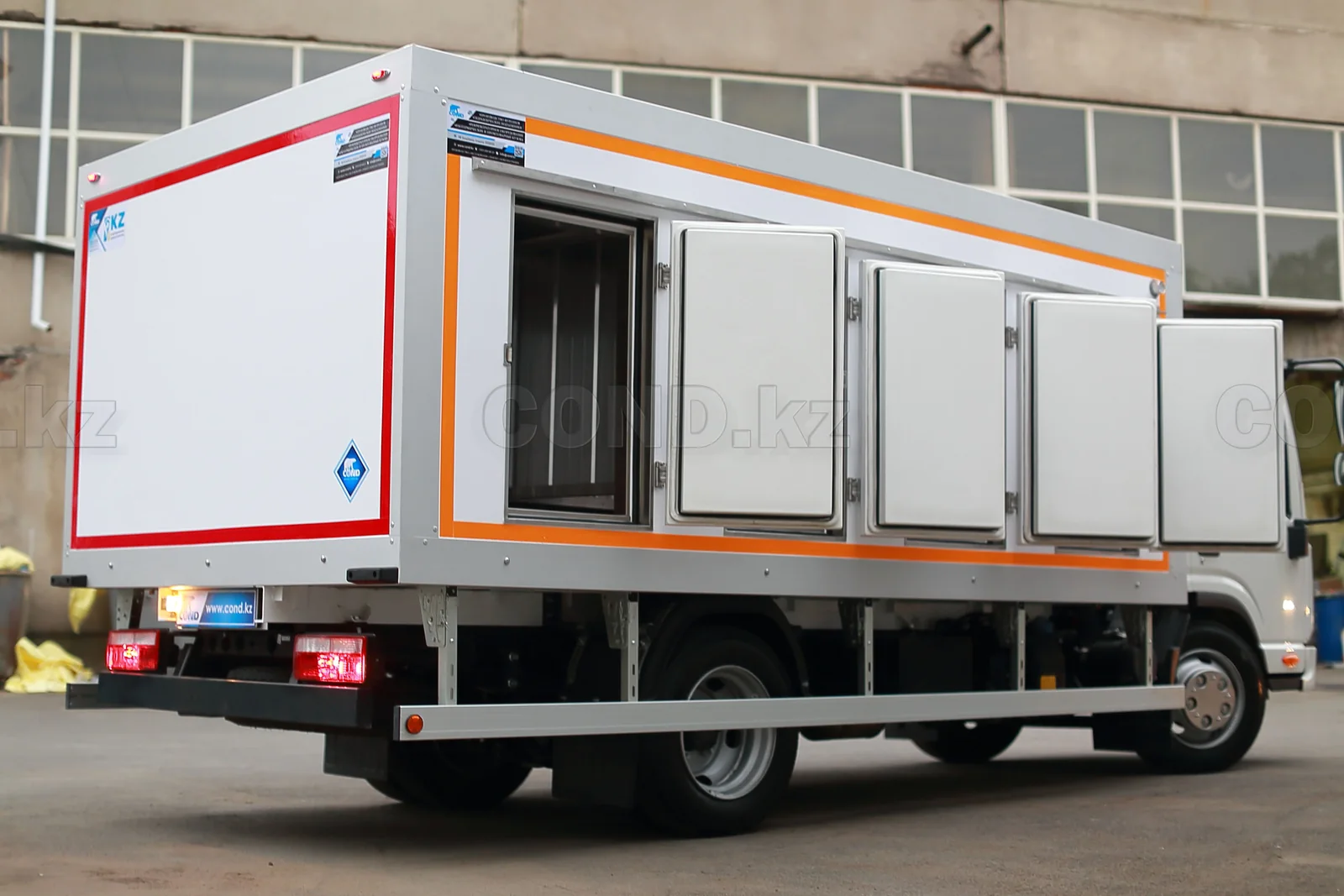

- An open compartment door

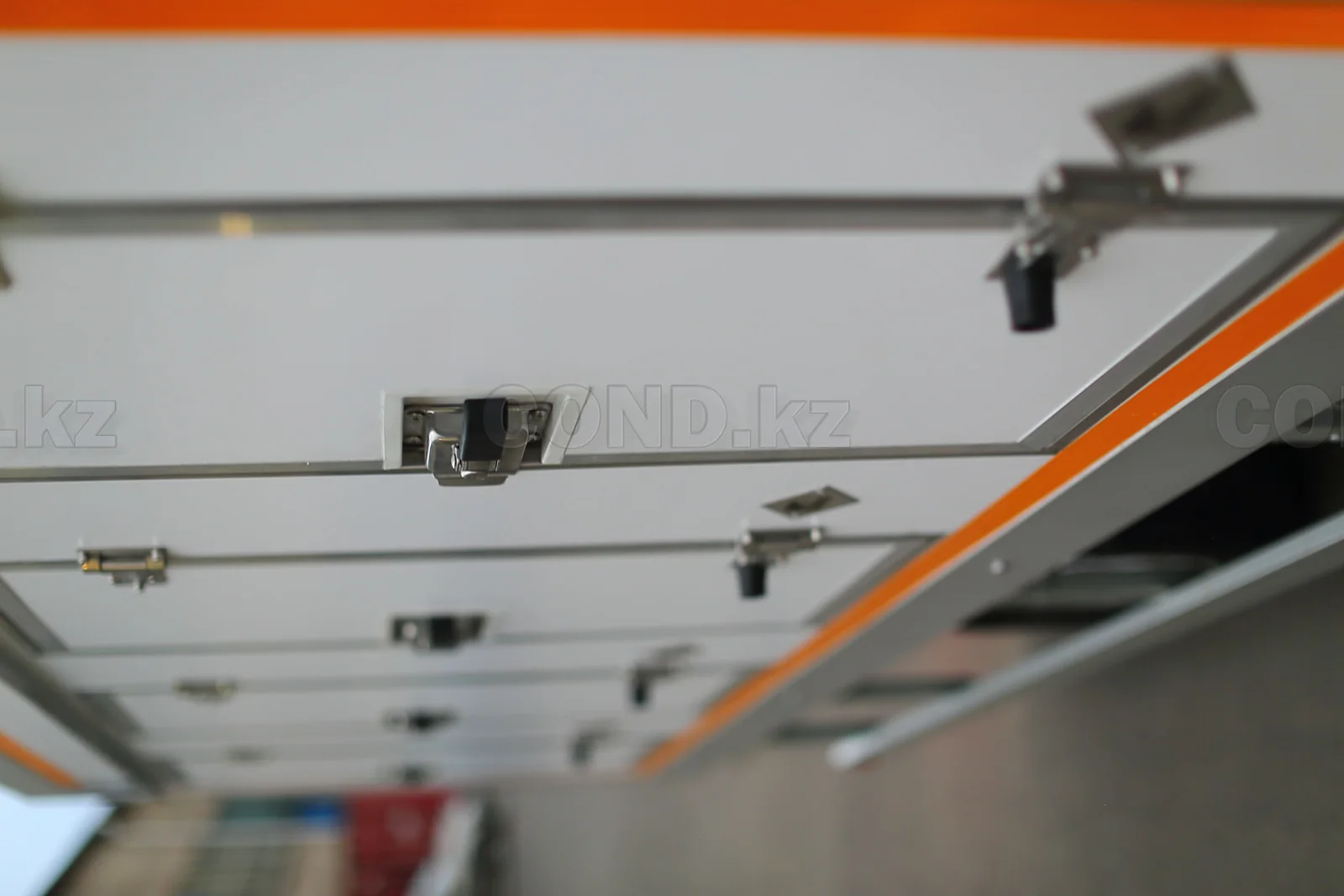

- Hardware and latches of the compartment doors
Who it suits
A eutectic body charges from the mains overnight and holds sub-zero all day with the engine off — the classic ice-cream truck and city distribution of deep-frozen goods.
We will build the same — to your size and your chassis
This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.
We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.
If you are still choosing a chassis, we have the same body on other bases as well: GAZelle Business, HINO 300, Hyundai HD78. They differ in payload, frame length and licence category.
FAQ
FAQ about the JAC N56 ice-cream van
A eutectic body has no compressor running on the route. Inside there are cold-accumulator plates: they freeze overnight from a socket and give the cold back during the day, holding −33 °C. The truck spends no fuel on cold, makes no noise at the stops and does not defrost at every one of them.
A full overnight charge of the plates lasts a working shift of urban delivery with a normal number of openings. The exact time depends on the outside temperature, the load and how often the hatches are opened — we calculate it for your route.
A 4,200 mm body with 4+4 side hatches and an internally mounted unit. JAC N56 chassis: a 150 hp diesel, category C, 3,445 kg payload.
From a 380 V mains supply while parked, over 8–10 hours. During the day the truck runs without a compressor: the plates give back the cold they stored. A socket is needed where the truck spends the night — that is the only infrastructure requirement.
A hatch is opened for seconds and only over the section needed. Cold air is heavy and stays in the body, and the seller never climbs inside. On a round with a couple of dozen stops that saves both time and cold.
We price by configuration: body length, number of hatches, panel thickness, plate set. Leave a request or write on WhatsApp and we will send the calculation. COND does not publish prices for bodies.
COND is a factory with its own WMI manufacturer code, so we issue the full set of conversion paperwork and the entry in the vehicle passport.
