Ice-cream van on a GAZelle Business 3302 by COND
⚪ Completed
Eutectic ice-cream van on a GAZelle Business 3.2 m chassis
category B−33 °C3+3 side doors
⚖ payload 1,500 kg↔ body 3,200 mm
A compact ice-cream van on the lightest category B chassis: six compartments with side doors, three per side. This body is chosen for dense city rounds, where the number of stops matters more than the volume per trip.
Chassis
| Make / model | GAZ-3302 — GAZelle Business, 2,900 mm wheelbase |
| Engine | UMZ A275 (Evotech 2.7) petrol, injection, Euro 5 |
| Power | 106.8 hp |
| Gearbox | manual, 5-speed |
| Wheelbase | 2,900 mm |
| Vehicle category | B |
| Payload | 1,500 kg (the weight of the body with plates comes out of this) |
Chassis specifications are on a separate page.
Van
| Body type | eutectic (ice-cream van) — deep freezing |
| Body dimensions | 3,200 × 2,000 × 2,000 mm |
| Internal dimensions | 2,960 × 1,760 × 1,720 mm, 120 / 140 mm panels |
| Usable volume | 9.0 m³ |
| Doors | 3+3 side compartment doors |
| Panel thickness | sides 120 mm, floor and roof 140 mm |
| Temperature duty | down to −33 °C (eutectic plates) |
| Charging the plates | from a 380 V supply at the depot, 8–10 hours |
More about the design on the page ice-cream vans.
Video
This vehicle on video
A walk-around of this vehicle from our YouTube channel.
How this body is built
The vehicle is built on a GAZ-3302 — GAZelle Business, 2,900 mm wheelbase chassis with a 2,900 mm wheelbase. The engine is UMZ A275 (Evotech 2.7) petrol, injection, Euro 5, 106.8 hp.
Body type: eutectic (ice-cream van) — deep freezing, external dimensions 3,200 mm.
Doors: 3+3 side compartment doors.
Operating range: down to −33 °C (eutectic plates).
Why it is built this way
A side door changes distribution logistics: at each stop you open it rather than the whole rear portal — less cold escapes and the truck can park tight against its neighbour.

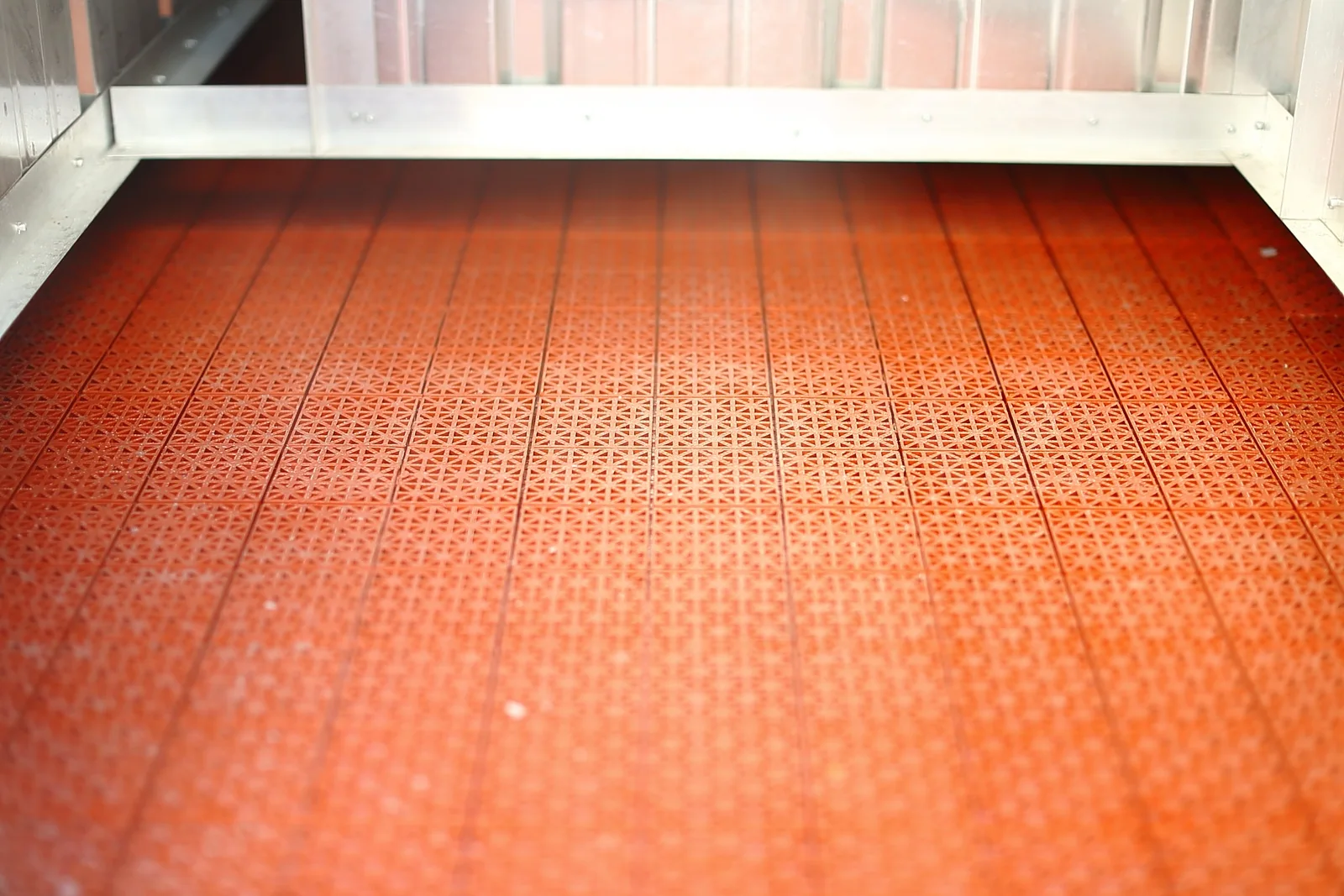

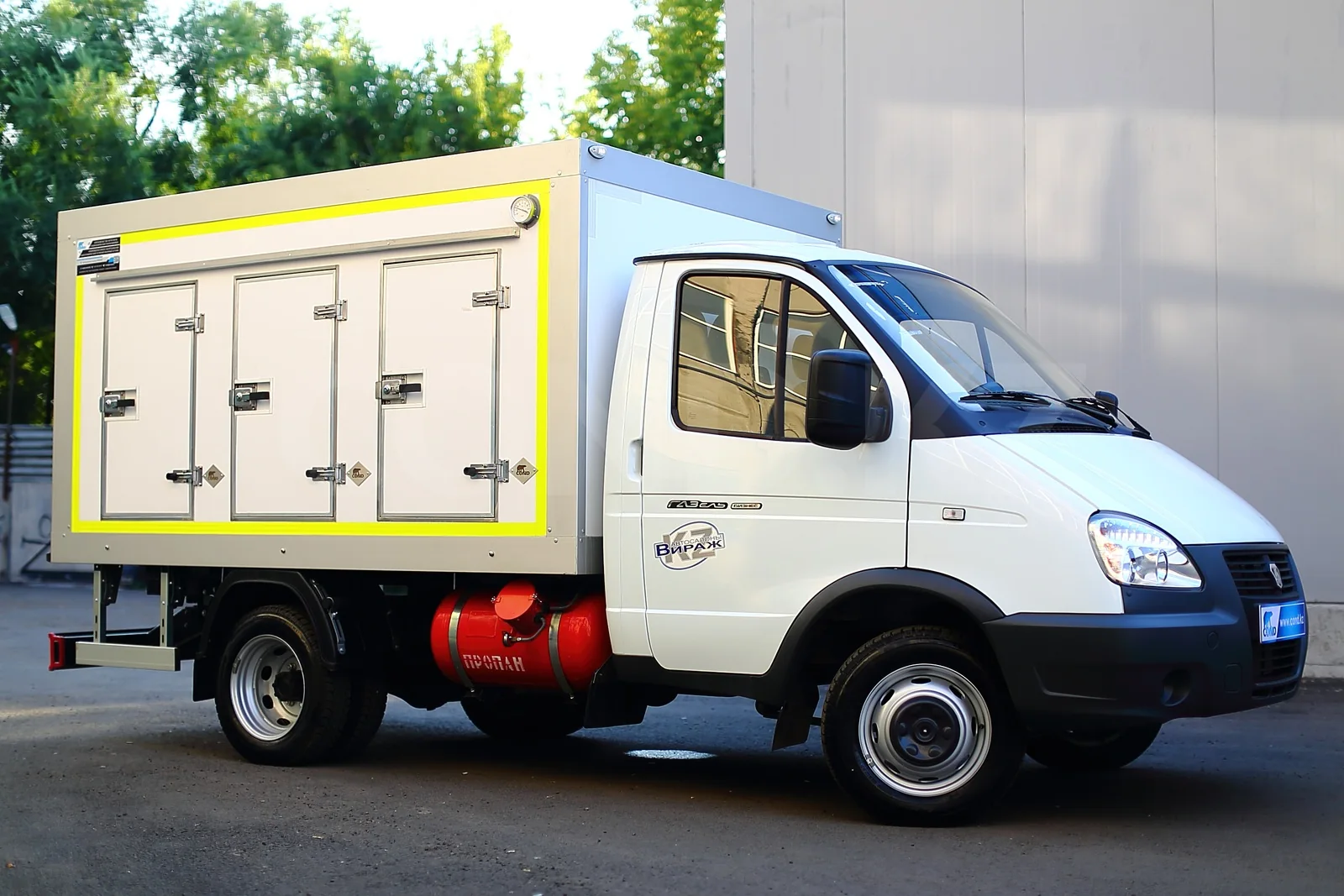

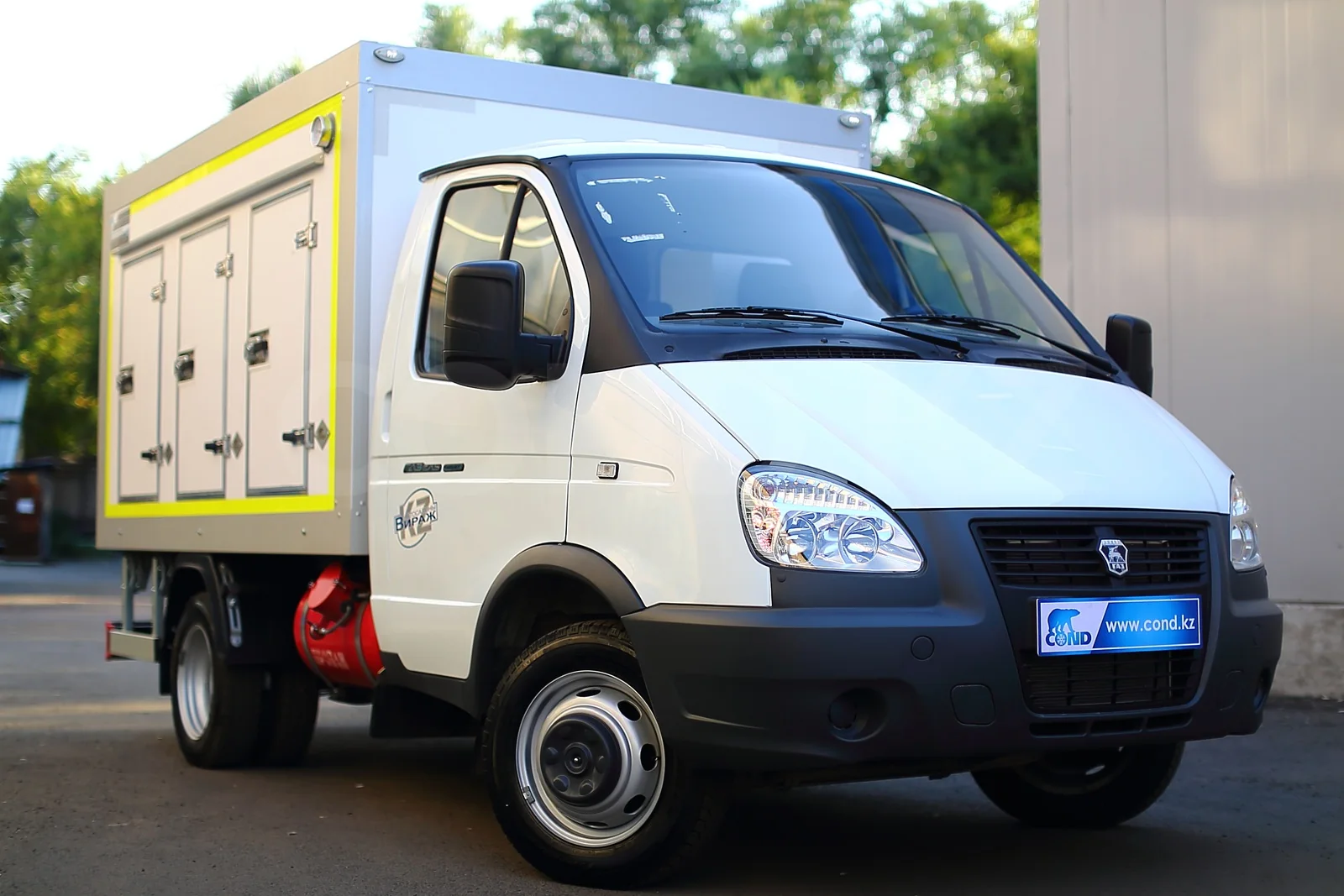

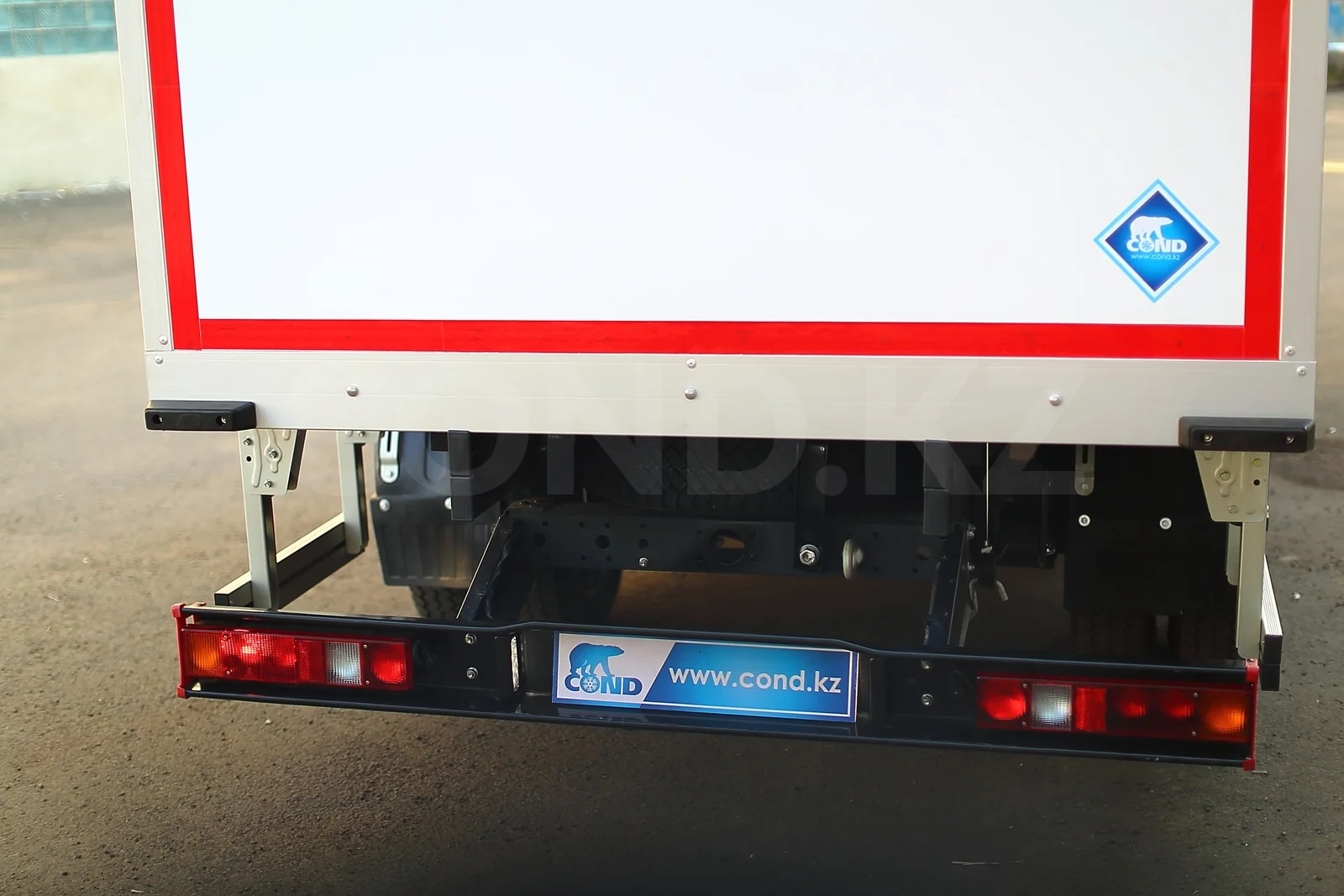

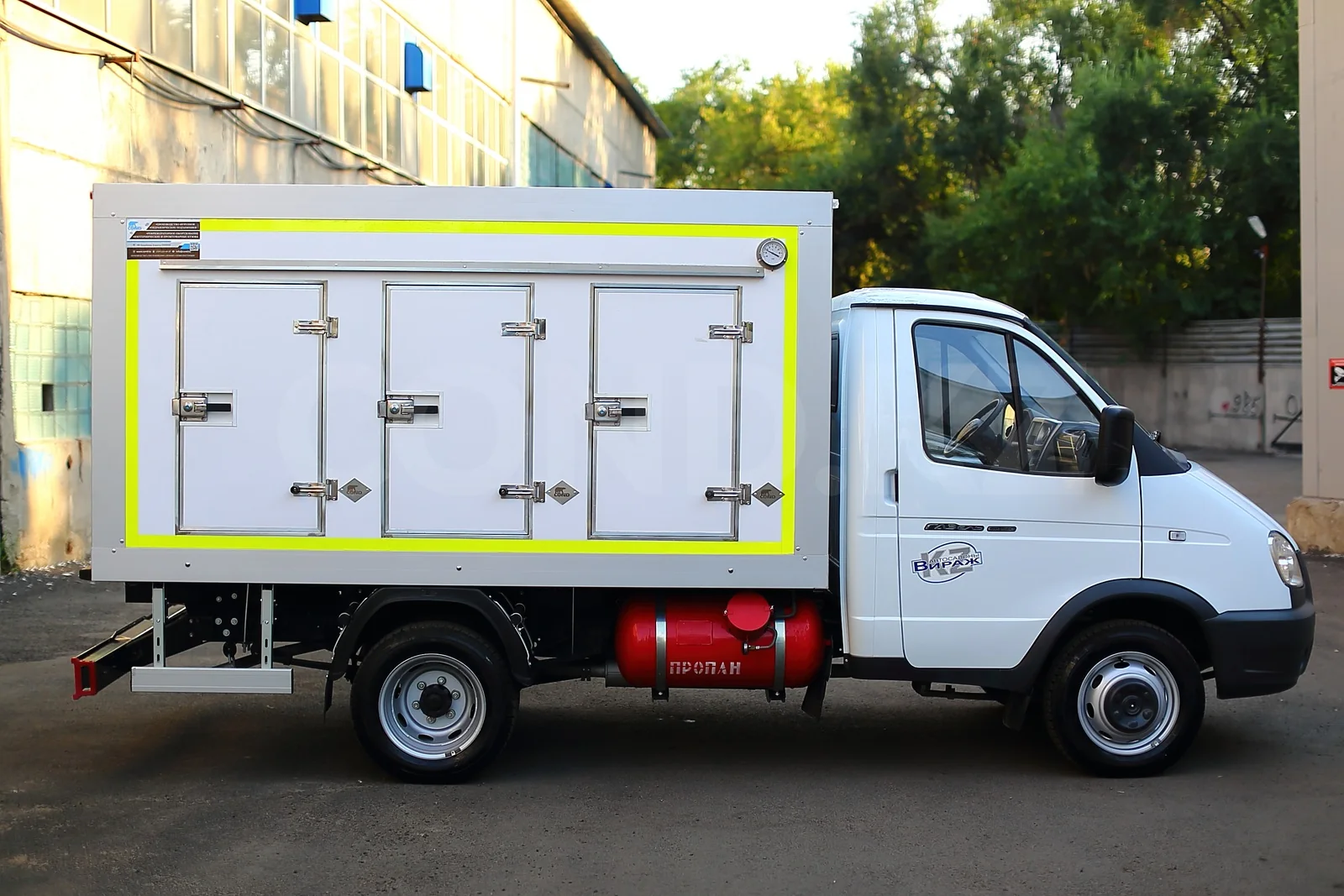

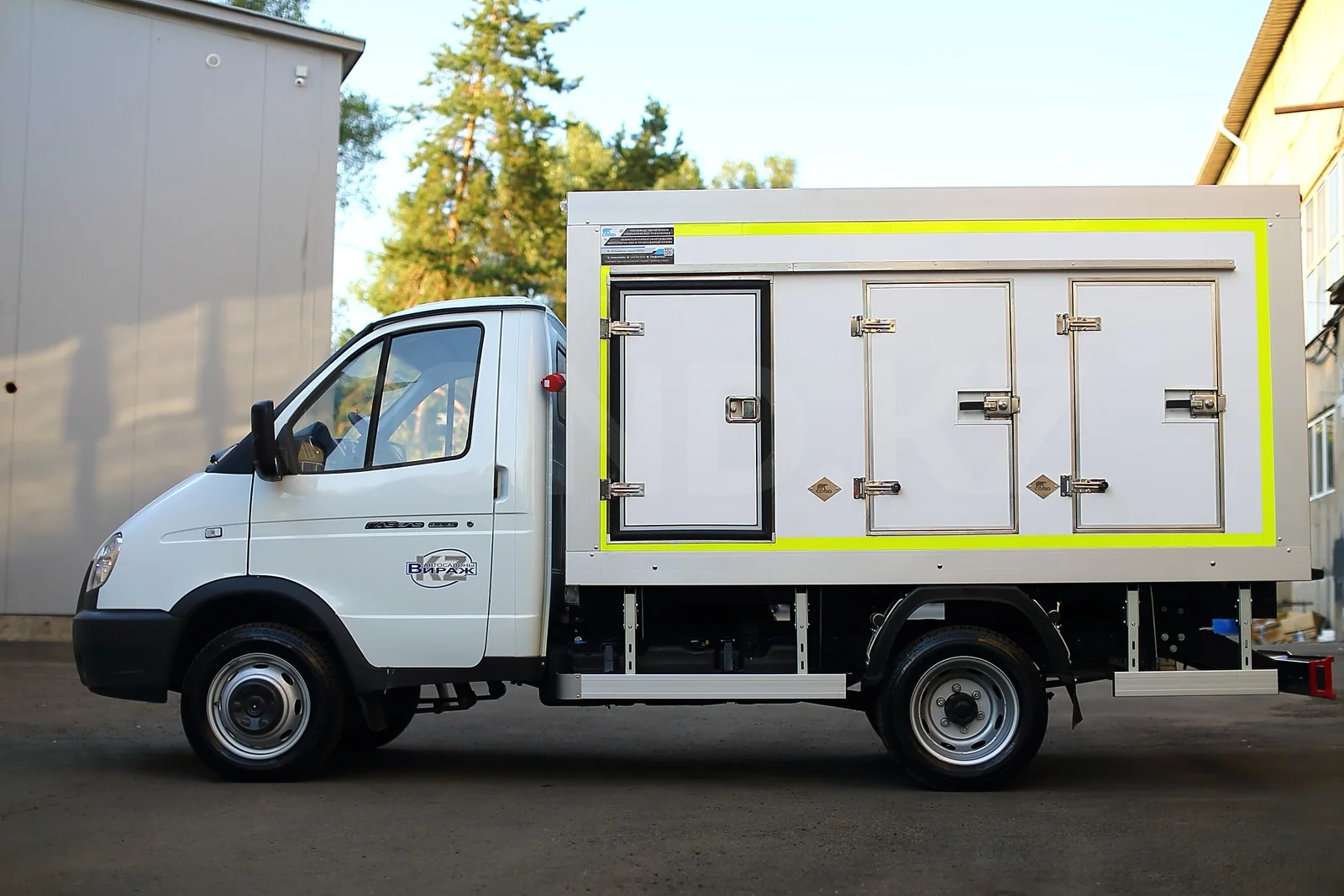

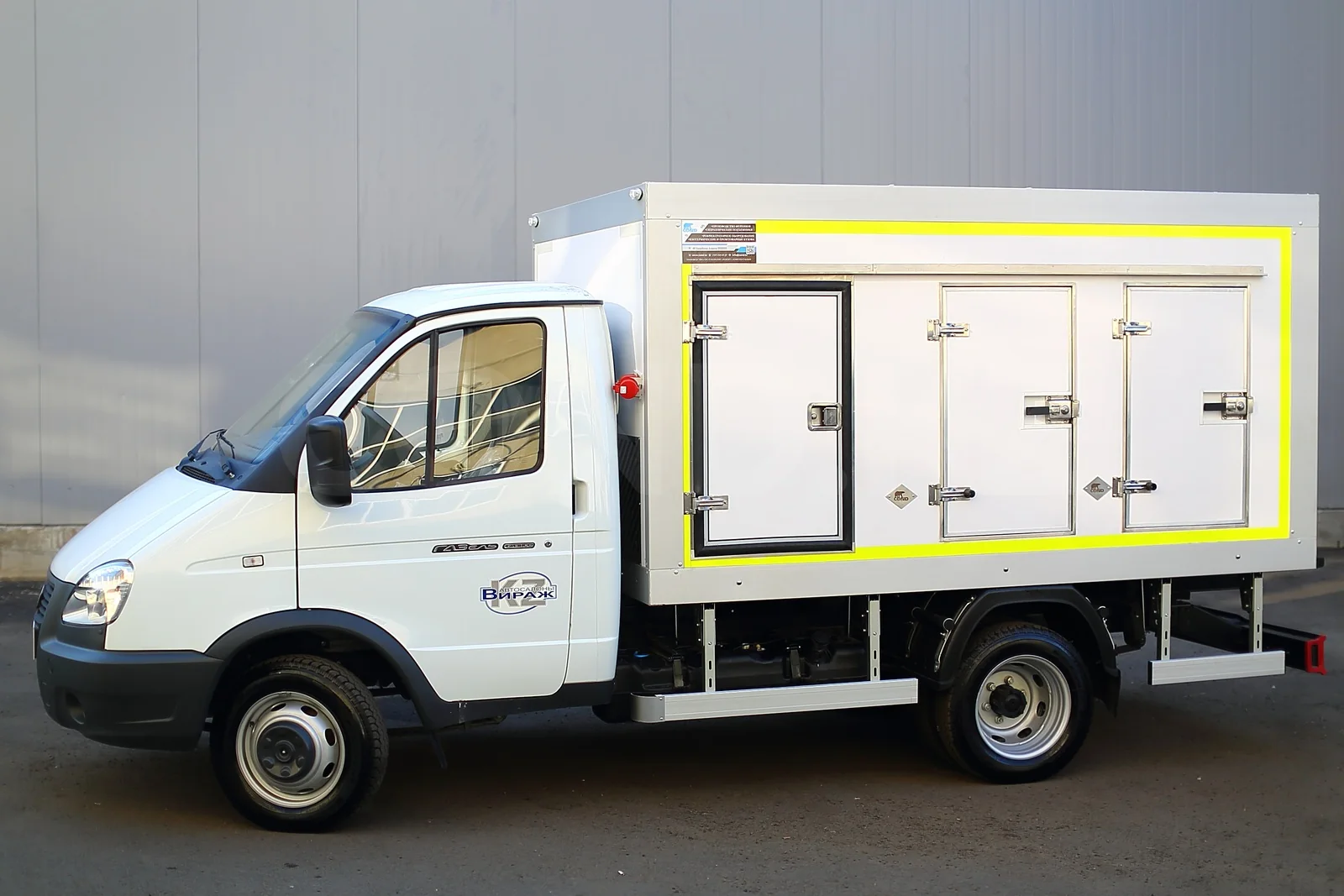

What is in the photos
- Eutectic ice-cream body on a GAZelle Business
- Eutectic ice-cream body on a
- Eutectic ice-cream body on a GAZelle Business 3,2
- Eutectic ice-cream body on a GAZelle Business 3,2 m
Who it suits
A eutectic body charges from the mains overnight and holds sub-zero all day with the engine off — the classic ice-cream truck and city distribution of deep-frozen goods.
We will build the same — to your size and your chassis
This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.
We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.
If you are still choosing a chassis, we have the same body on other bases as well: HINO 300, Hyundai HD78, JAC N56. They differ in payload, frame length and licence category.
FAQ
FAQ about the GAZelle Business 3.2 m ice-cream van
A eutectic body has no compressor running on the route. Inside there are cold-accumulator plates: they freeze overnight from a socket and give the cold back during the day, holding −33 °C. The truck spends no fuel on cold, makes no noise at the stops and does not defrost at every one of them.
A full overnight charge of the plates lasts a working shift of urban delivery with a normal number of openings. The exact time depends on the outside temperature, the load and how often the hatches are opened — we calculate it for your route.
A 3,200 mm body with 3+3 side hatches. GAZelle Business 3302 chassis: category B, 1,500 kg payload, from which the weight of the body with its plates is deducted.
From a 380 V mains supply while parked, over 8–10 hours. During the day the truck runs without a compressor: the plates give back the cold they stored. A socket is needed where the truck spends the night — that is the only infrastructure requirement.
A hatch is opened for seconds and only over the section needed. Cold air is heavy and stays in the body, and the seller never climbs inside. On a round with a couple of dozen stops that saves both time and cold.
We price by configuration: body length, number of hatches, panel thickness, plate set. Leave a request or write on WhatsApp and we will send the calculation. COND does not publish prices for bodies.
COND is a factory with its own WMI manufacturer code, so we issue the full set of conversion paperwork and the entry in the vehicle passport.
