Deep-freeze ice-cream van on a GAZelle Business 330202 by COND
⚪ Completed

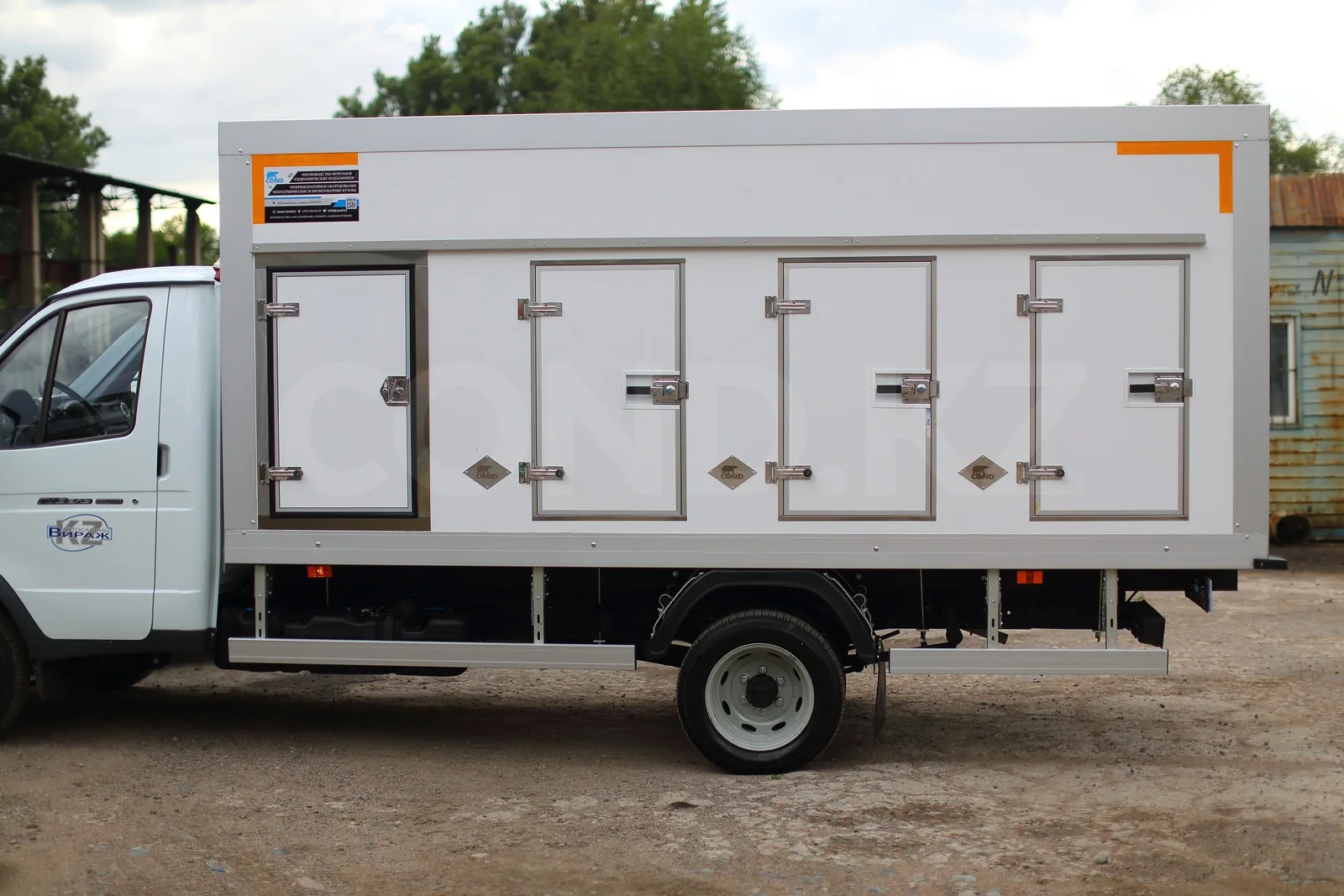

Eutectic ice-cream van on a GAZelle Business 4.2 m chassis
category B−33 °C4+4 side doors
⚖ payload 1,500 kg↔ body 4,200 mm
A delivery ice-cream van on a light category B chassis: eight separate compartments with side doors, four per side. The cold comes from eutectic plates — they are frozen overnight at the depot from a 380 V supply, and the body then holds its temperature all day without running a compressor.
Chassis
| Make / model | GAZ-330202 — GAZelle Business with a 3,500 mm extended wheelbase |
| Engine | UMZ A275 (Evotech 2.7) petrol, injection, Euro 5 |
| Power | 106.8 hp |
| Gearbox | manual, 5-speed |
| Wheelbase | 3,500 mm |
| Vehicle category | B |
| Payload | 1,500 kg (the weight of the body with plates comes out of this) |
Van
| Body type | eutectic (ice-cream van) — deep freezing |
| Body dimensions | 4,200 × 2,000 × 2,000 mm |
| Internal dimensions | 3,960 × 1,760 × 1,720 mm, 120 / 140 mm panels |
| Usable volume | 12.0 m³ |
| Doors | 4+4 side compartment doors |
| Panel thickness | sides 120 mm, floor and roof 140 mm |
| Temperature duty | down to −33 °C (eutectic plates) |
| Charging the plates | from a 380 V supply at the depot, 8–10 hours |
More about the design on the page ice-cream vans.
About the brand
GAZ: where the truck comes from and why it suits an ice-cream body
Country of manufacture and assembly in Kazakhstan
GAZ is the Gorky Automobile Plant in Nizhny Novgorod, Russia. The GAZelle Business is the updated version of the classic GAZelle, in production since 2010. These trucks do not only reach Kazakhstan as imports: since 2019 GAZ vehicles have been assembled in Semey at the SemAZ plant — around thirty versions, including the GAZelle Business, GAZelle Next and GAZon Next. Local assembly means a Kazakhstani certificate of conformity, chassis available inside the country and spare parts through the dealer network rather than on order.
Category B — any driver can take the wheel
The GAZelle Business has a gross weight of 3,500 kg — exactly at the ceiling of category B. A driver with an ordinary licence gets in and drives: there is no need to find someone with category C. On city delivery rounds, where drivers change often, this decides the choice of chassis more often than payload does.
A petrol engine
UMZ A275 (Evotech 2.7), 106.8 hp, Euro 5 — petrol, not diesel. In winter it starts without a pre-heater, servicing is cheaper, and a repair can be done at almost any garage in the country. Fuel consumption is higher than a diesel, but on short city routes the mileage is small and over a year the difference comes out modest.
The body is not tied to this chassis
An ice-cream van is a body, not a whole vehicle. We fit the same compartment body with eutectic plates to JAC, Kia Bongo, Hyundai, Isuzu, Foton and FAW — sized for the volume and number of compartments you need. There is one condition: the chassis is chosen for a body that has already been calculated, not the other way round.
Everything about ice-cream vans → · The GAZ range → · The GAZelle Business 330202 chassis →
Video
This vehicle on video
A walk-around of this vehicle from our YouTube channel.
How this body is built
The project is based on a GAZ-330202 — GAZelle Business with a 3,500 mm extended wheelbase chassis with a 3,500 mm wheelbase. The engine is UMZ A275 (Evotech 2.7) petrol, injection, Euro 5, 106.8 hp.
This is a eutectic (ice-cream van) — deep freezing; externally the body is 4,200 mm.
Doors: 4+4 side compartment doors.
Operating range: down to −33 °C (eutectic plates).
Why it is built this way
A side door changes distribution logistics: at each stop you open it rather than the whole rear portal — less cold escapes and the truck can park tight against its neighbour.
What is in the photos

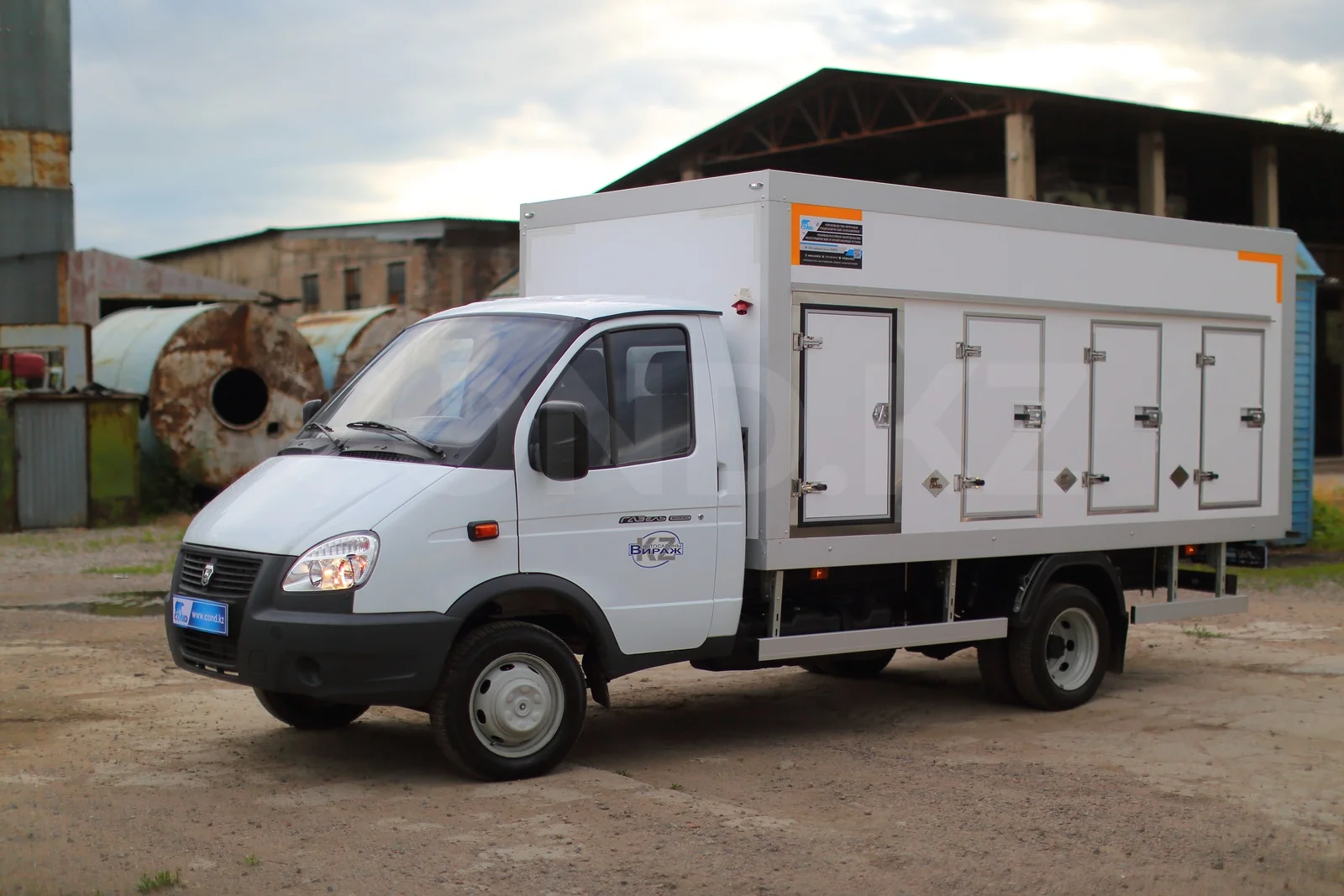

- Ice cream on a GAZelle Business 4,2 m — the vehicle by the workshop COND

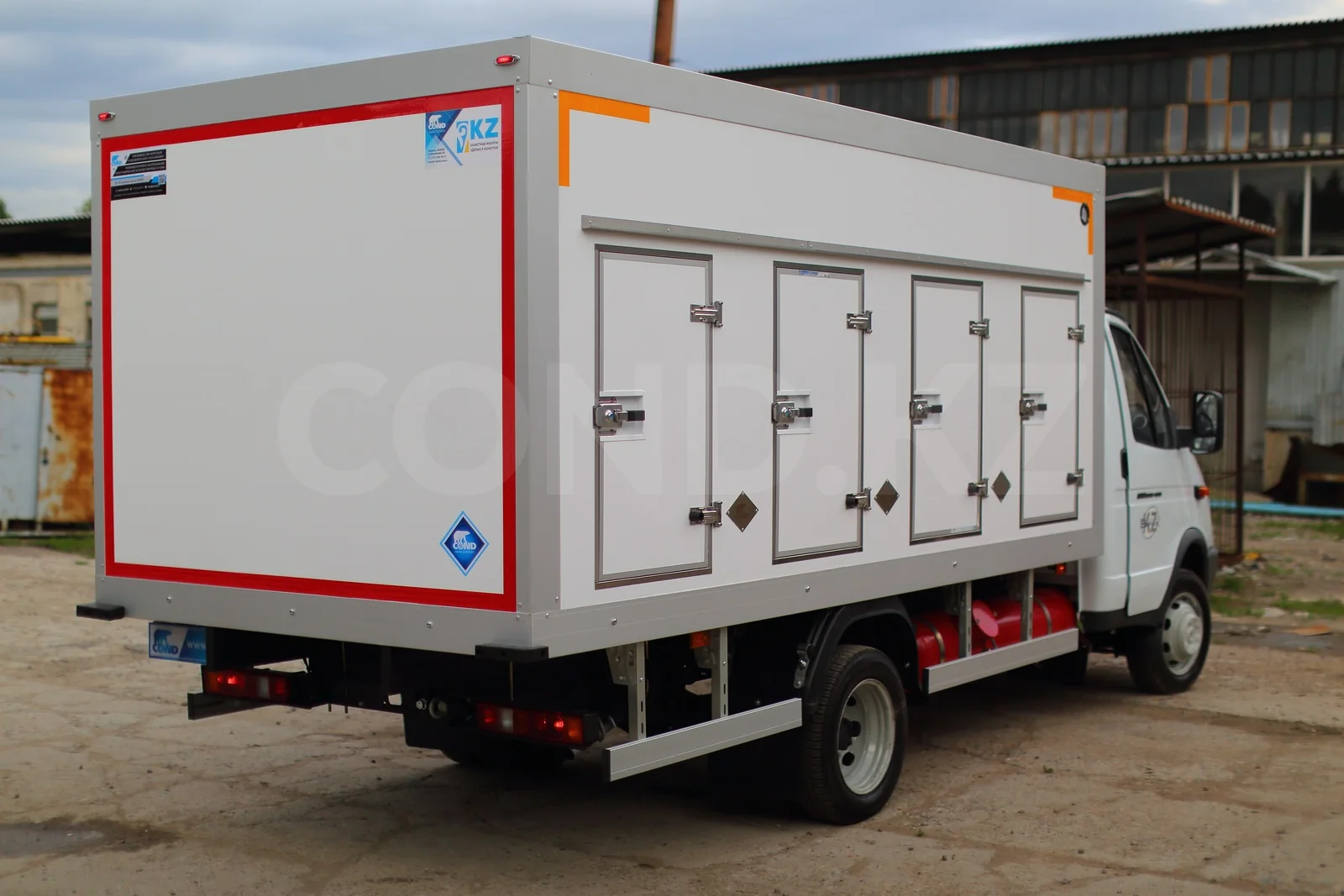

- Ice cream on a GAZelle Business 4,2 m — rear part
- Ice cream on a GAZelle Business 4,2 m

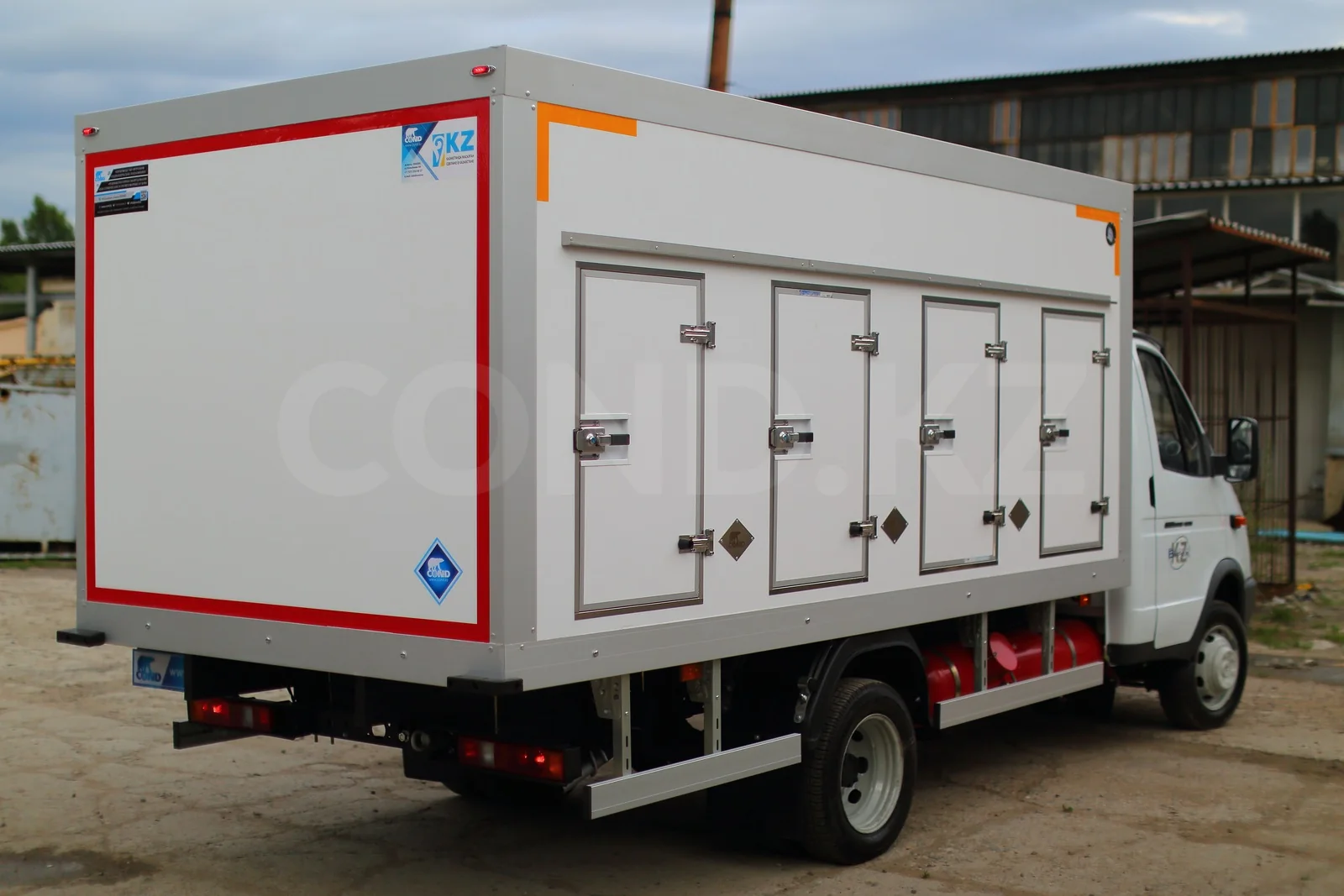

- Ice cream on a GAZelle Business 4,2 m — body in full

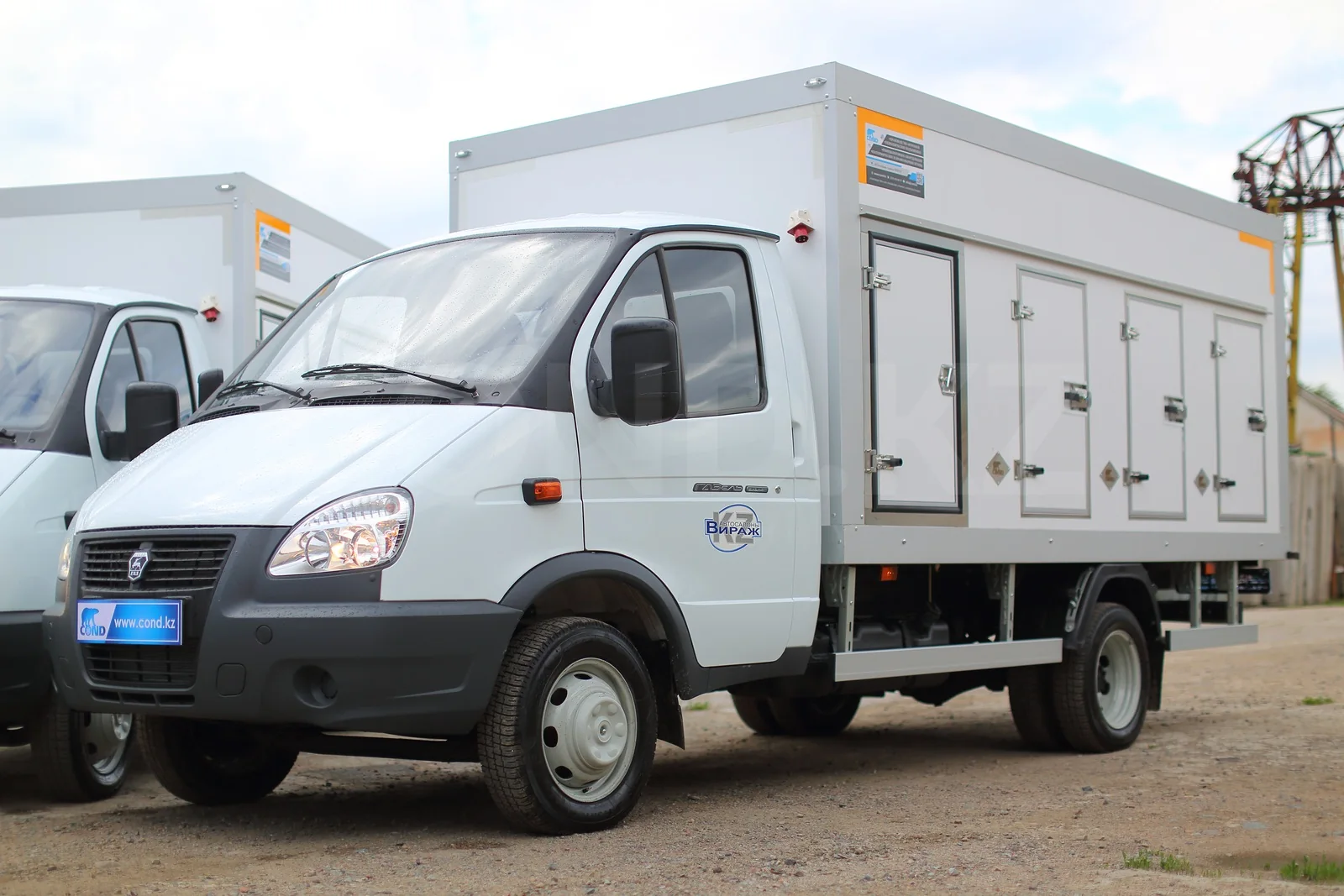

- Ice cream on a GAZelle Business 4,2 m — the cab and body, view

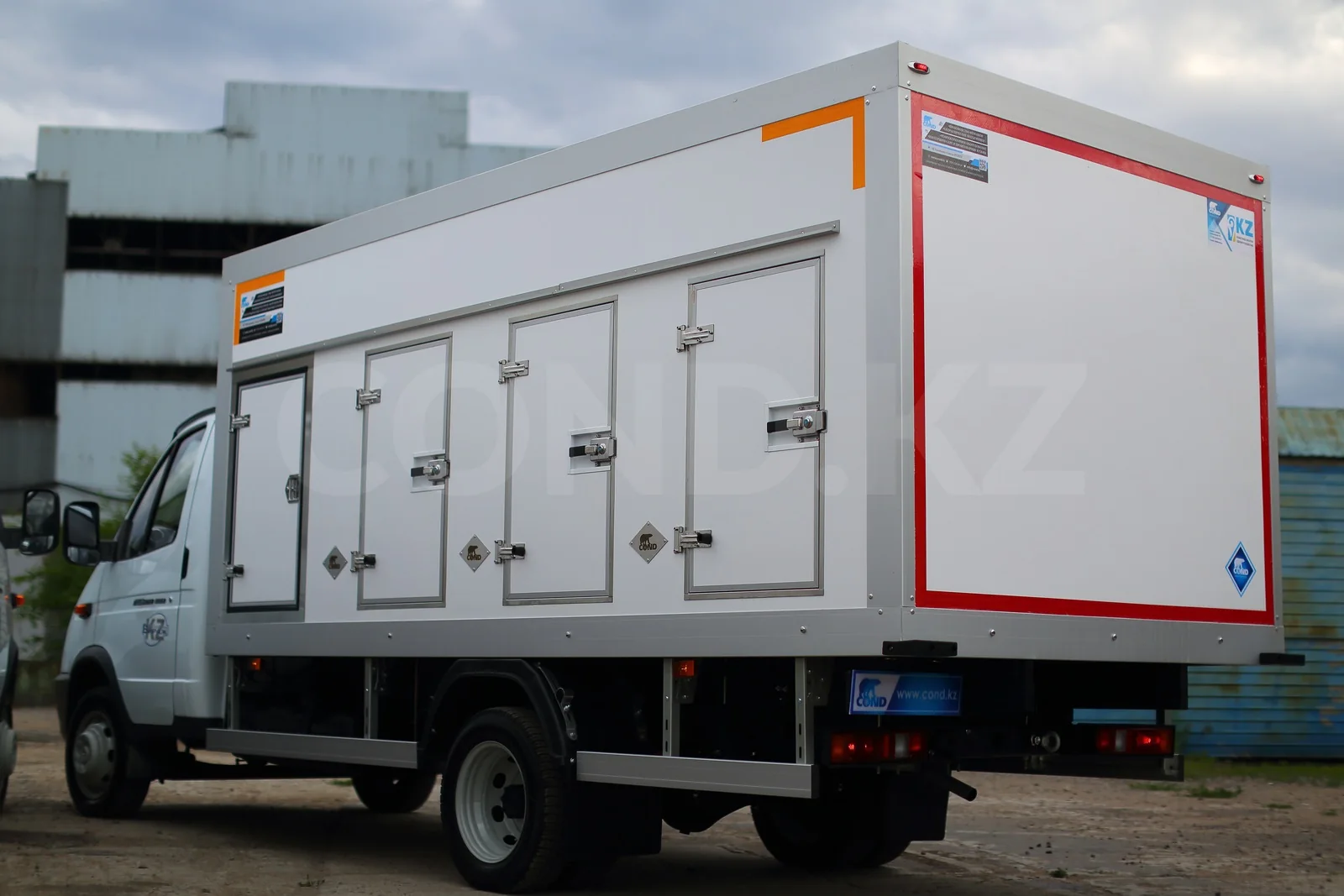

- Ice cream on a GAZelle Business 4,2 m — rear the end face

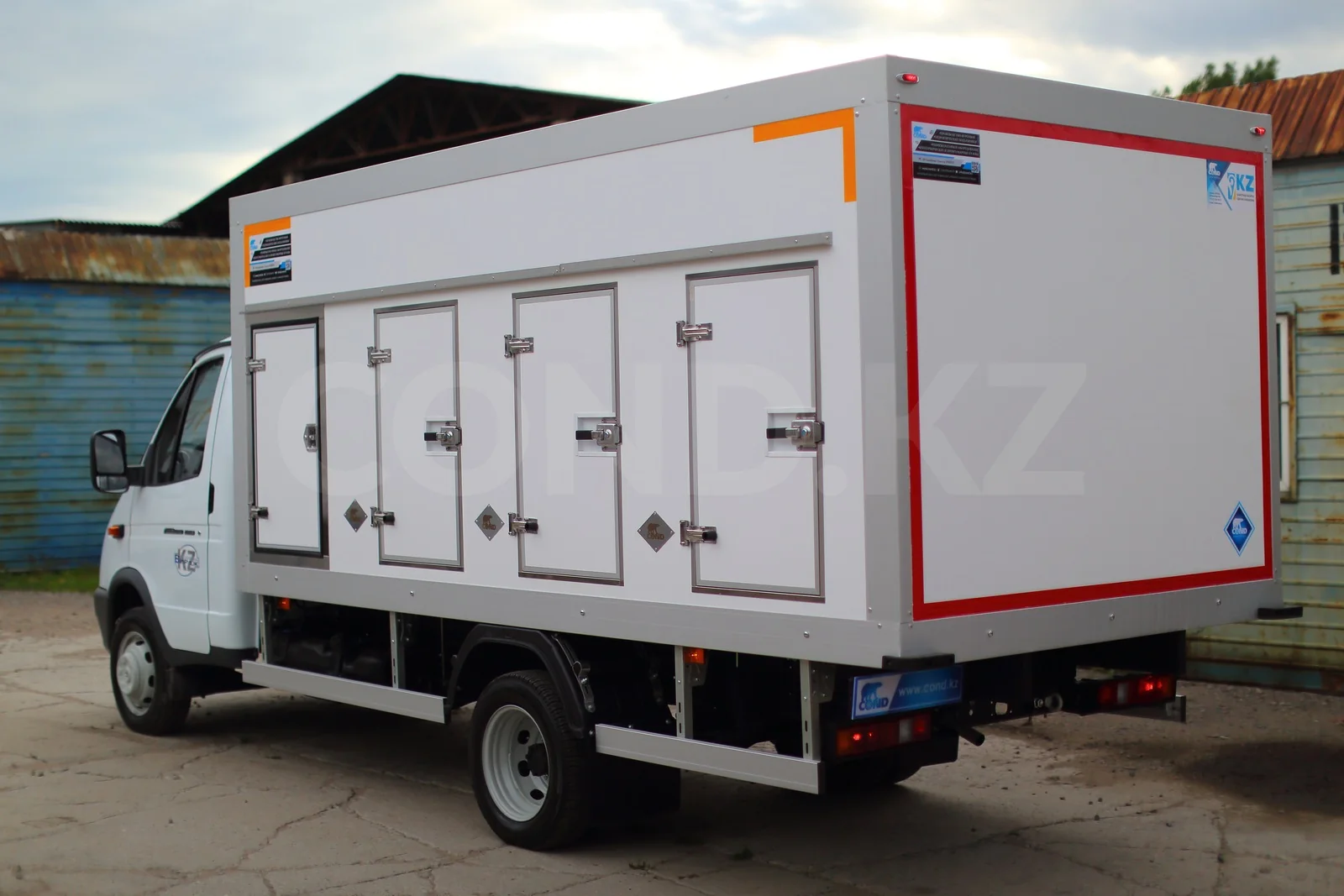

- Ice cream on a GAZelle Business 4,2 m — side with four

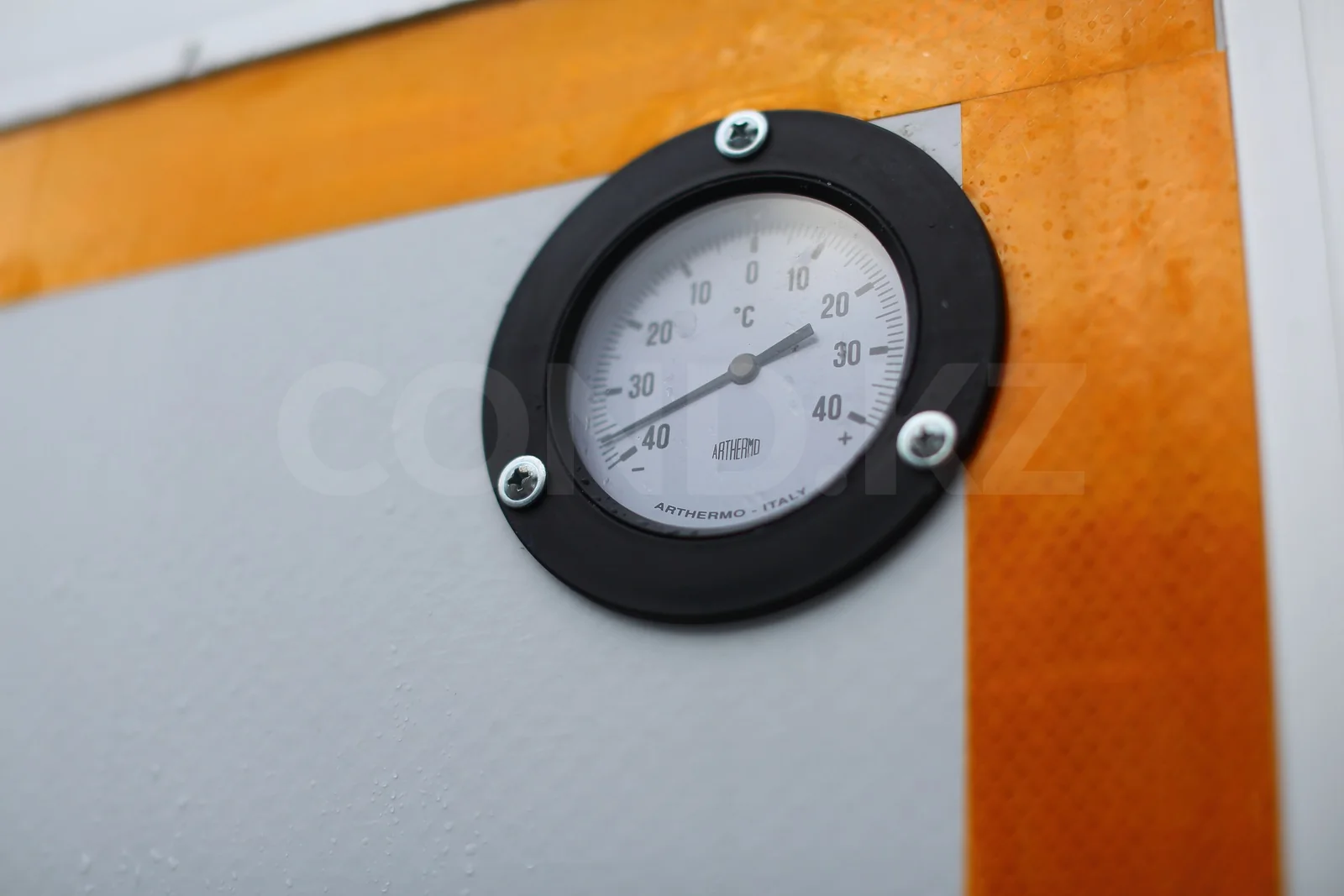

- Ice cream on a GAZelle Business 4,2 m — thermometer on the wall
Who it suits
A eutectic body charges from the mains overnight and holds sub-zero all day with the engine off — the classic ice-cream truck and city distribution of deep-frozen goods.
We will build the same — to your size and your chassis
This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.
We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.

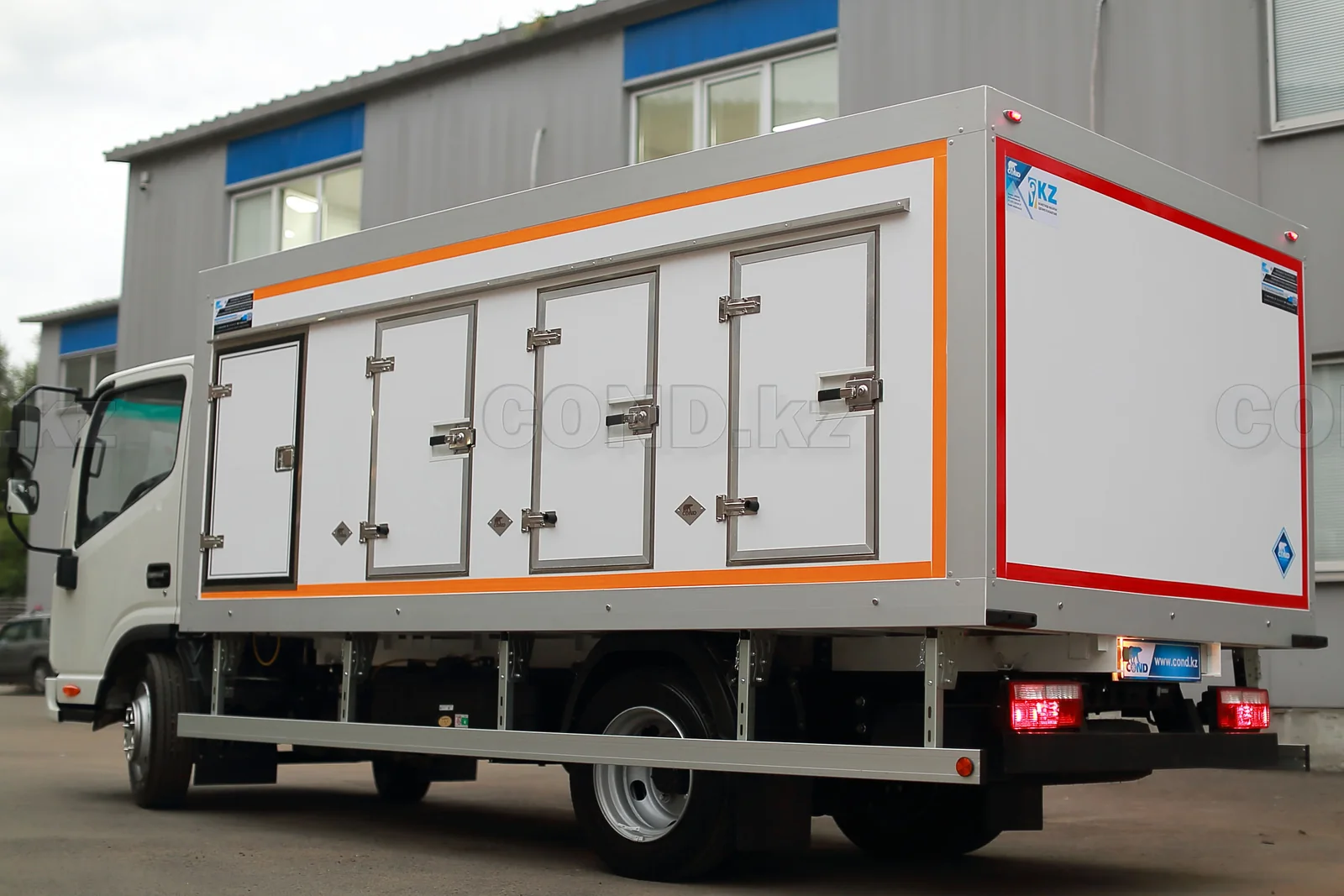

If you are still choosing a chassis, we have the same body on other bases as well: HINO 300, Hyundai HD78, JAC N56. They differ in payload, frame length and licence category.
FAQ
FAQ about the GAZelle Business 4.2 m ice-cream van
A eutectic body has no compressor running on the route. Inside there are cold-accumulator plates: they freeze overnight from a socket and give the cold back during the day, holding −33 °C. The truck spends no fuel on cold, makes no noise at the stops and does not defrost at every one of them.
A full overnight charge of the plates lasts a working shift of urban delivery with a normal number of openings. The exact time depends on the outside temperature, the load and how often the hatches are opened — we calculate it for your route.
A 4,200 mm body with 4+4 side hatches. GAZelle Business 330202 chassis: category B, 1,500 kg payload, from which the weight of the body with its plates is deducted.
From a 380 V mains supply while parked, over 8–10 hours. During the day the truck runs without a compressor: the plates give back the cold they stored. A socket is needed where the truck spends the night — that is the only infrastructure requirement.
A hatch is opened for seconds and only over the section needed. Cold air is heavy and stays in the body, and the seller never climbs inside. On a round with a couple of dozen stops that saves both time and cold.
We price by configuration: body length, number of hatches, panel thickness, plate set. Leave a request or write on WhatsApp and we will send the calculation. COND does not publish prices for bodies.
COND is a factory with its own WMI manufacturer code, so we issue the full set of conversion paperwork and the entry in the vehicle passport.
