Tail lifts
Dhollandia tail lifts for 1,000, 1,500 and 2,500 kg
Dhollandia is a Belgian tail lift manufacturer. COND supplies and installs Dhollandia tail lifts with a lifting capacity of 1,000, 1,500 and 2,500 kg in the cantilever version, warranty — 2 years. Dhollandia tail lifts are fitted to 7 COND vehicles.
Versions
Dhollandia versions
| Payload | Series and type | Chassis (per the manufacturer) | Features |
|---|---|---|---|
| 1,000 kg | DH-LM.10 — cantilever | gross vehicle weight up to 7.5 t | platform steel or aluminium, from 1,800 mm; floor height from 1,050 mm |
| 1,500 kg | DH-LM.15 — cantilever | gross vehicle weight 7.5–12 t | platform steel or aluminium, depending on the version |
| 2,500 kg | DH-LM.30 — cantilever | heavy chassis | range 2,000–3,000 kg, one-piece platform up to 3,000 mm |
Platform dimensions and mass — per the manufacturer's data sheet for the specific version.
Design
Dhollandia tail lift design

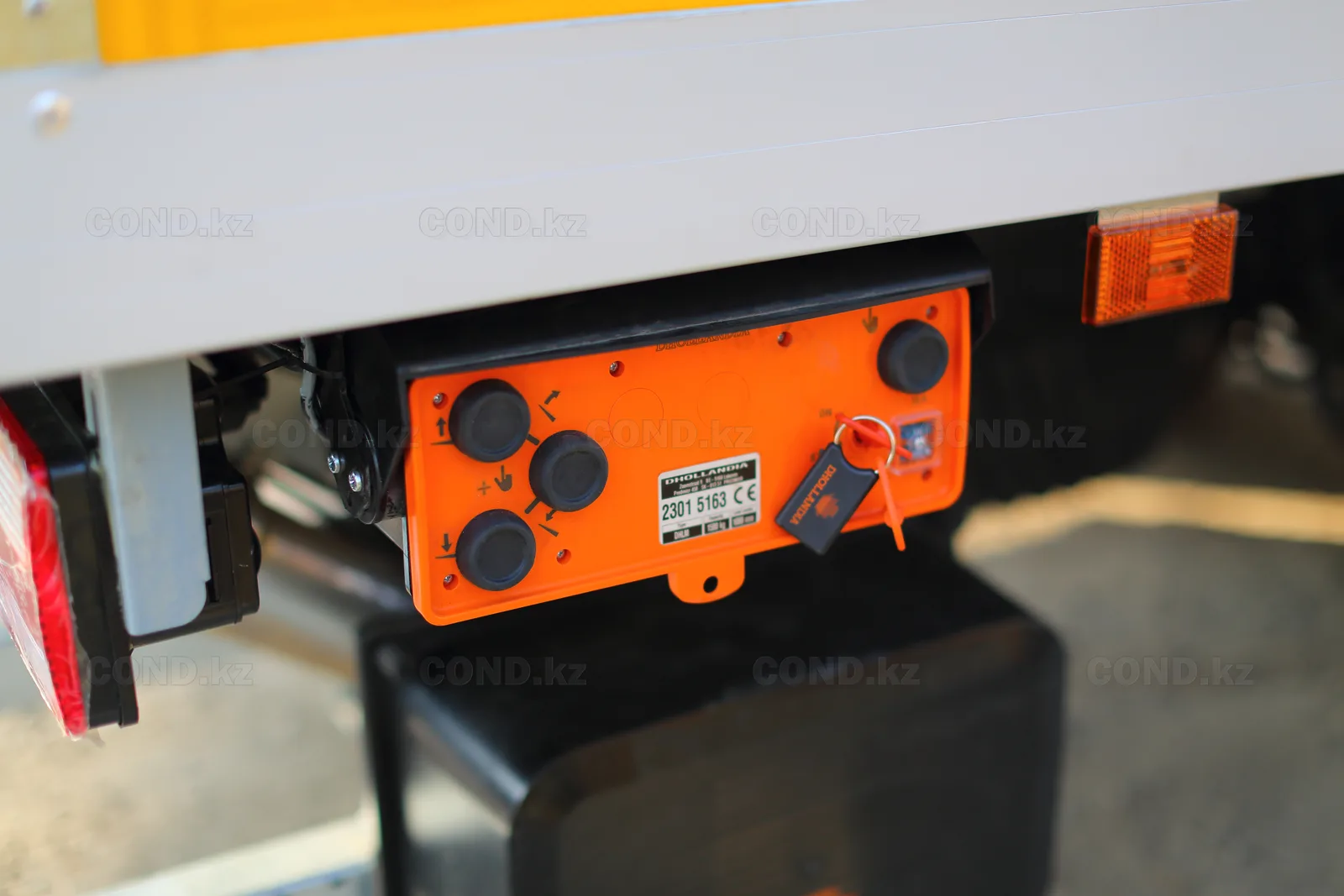

Common to the DH-L series according to the manufacturer: two lifting cylinders and two closing cylinders, electric hose-burst protection valves, manual emergency control, 12/24 V supply.

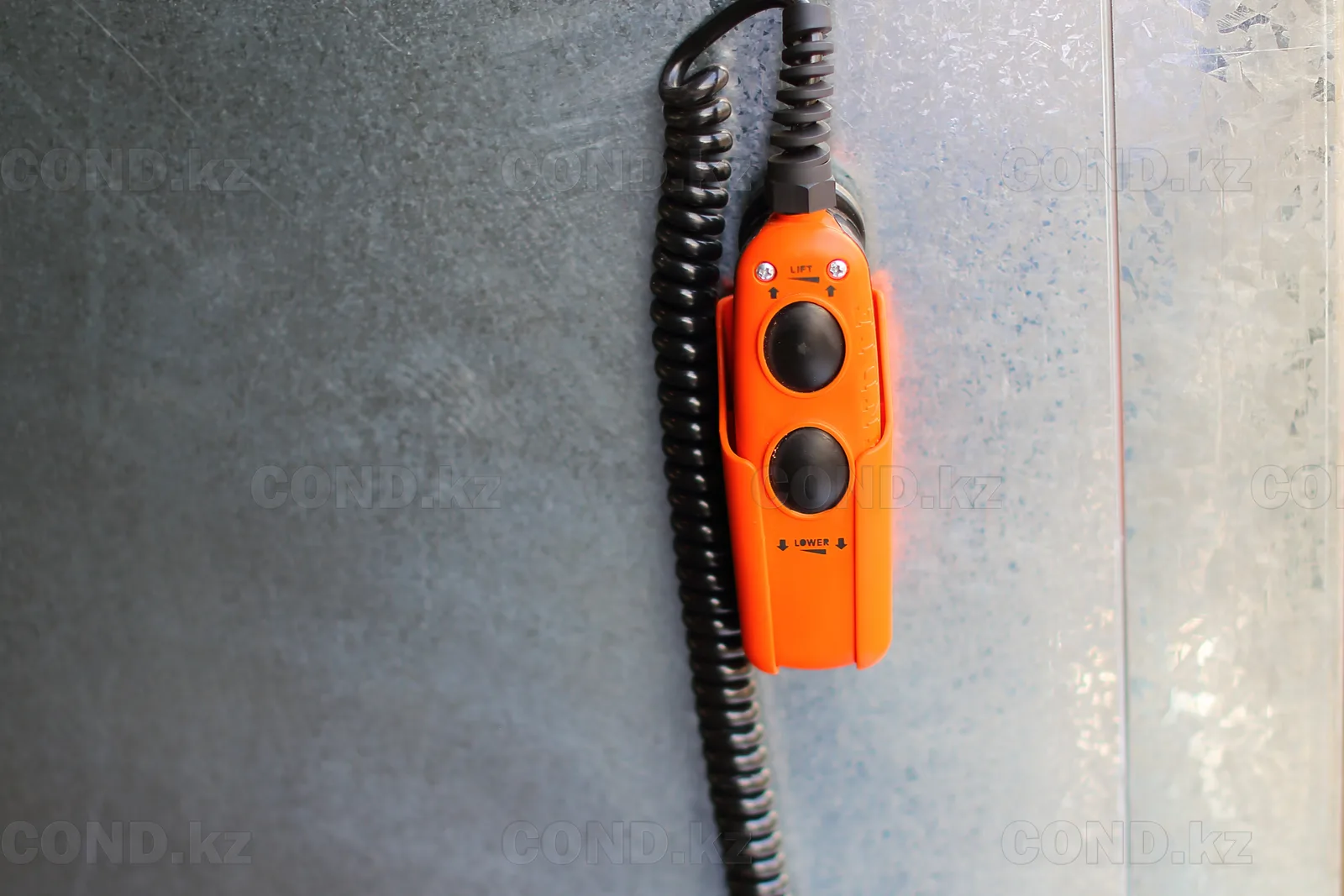

Platform with automatic compensation for floor slope. The tilt is adjusted from a remote control with two-hand operation.
Frame — hot-dip galvanised or Protection PLUS coating. Platform — steel or aluminium, depending on the series.
Selection
How to choose a version
- Chassis gross vehicle weight: up to 7.5 t — 1,000 kg (DH-LM.10); 7.5–12 t — 1,500 kg (DH-LM.15); heavy chassis — 2,500 kg.

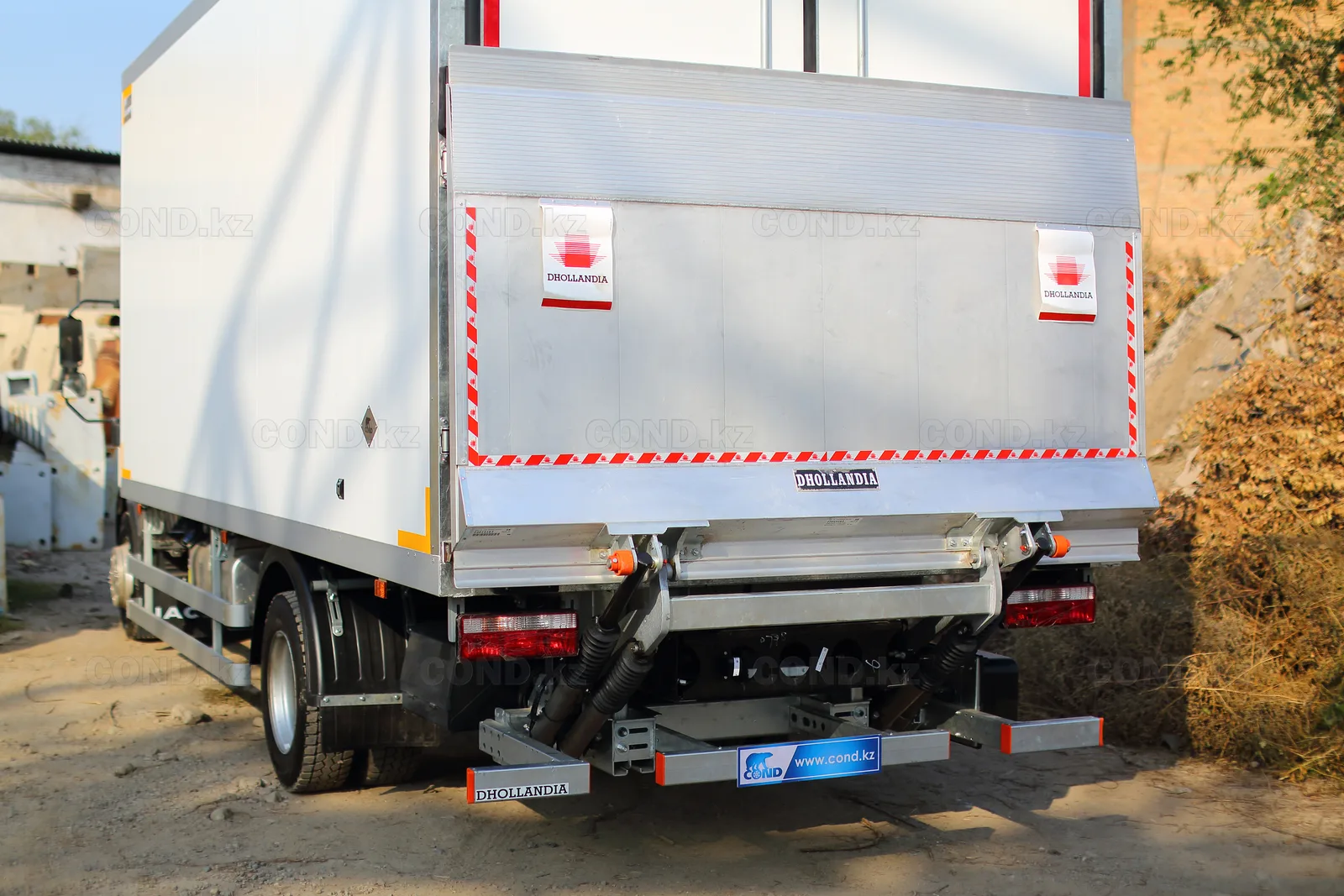

- Body: dry freight van, insulated van and refrigerated van — cantilever DH-LM. In the transport position the platform closes the rear opening.
- A clear rear opening or docking with a loading dock is needed — Cadro tuck-under and retractable tail lifts.
Other types:Cadro tail lifts
In detail:tail lift types and selection by body
Photos
Dhollandia on COND vehicles — photos
Projects
COND vehicles with Dhollandia
Hino 500 — reefer body with a Dhollandia tail lift
View the project →
JAC N120 — refrigerated van, Dhollandia 1,000 kg
View the project →
JAC N120 — dry freight van with a Dhollandia tail lift
View the project →
HINO 300 — dry freight van, Dhollandia 1,000 kg
View the project →
Iveco Daily 70C15 — refrigerated van, Dhollandia 1,000 kg
View the project →
Iveco Daily 70C15 — insulated van, Dhollandia 1,000 kg
View the project →
Mercedes-Benz Actros — refrigerated van with a Dhollandia tail lift
View the project →FAQ
FAQ
DH-LM cantilever models for 1,000, 1,500 and 2,500 kg: DH-LM.10, DH-LM.15 and DH-LM.30. Tuck-under and column tail lifts are in the Cadro range.
DH-LM.10 is a cantilever tail lift with a lifting capacity of 1,000 kg. The manufacturer specifies it for light commercial vehicles up to 7.5 t gross vehicle weight, platform from 1,800 mm.
DH-LM.15 with a lifting capacity of 1,500 kg — the manufacturer explicitly specifies the 7.5–12 t range. For 2,500 kg — DH-LM.30.
Yes. The cantilever DH-LM is fitted to refrigerated vans; COND refrigerated vans on Hino 500 and JAC N120 are equipped this way.
5–7 days depending on the vehicle. The lead time is given after the frame is measured and the version is chosen.
Warranty — 2 years.
Yes. Before installation the frame, the frame overhang and the rear edge of the body are checked; these determine the version and mounting.
