What licence do you need for a vehicle like this?

Category B: the GAZelle Next has a gross weight of 3,500 kg. That is its main argument against medium-tonnage trucks: a driver is easier and cheaper to find. The chassis specifications are on the GAZelle Next page.

Can this body be repeated on a different chassis?

Yes, the bulkhead and the second evaporator are not tied to the GAZelle. For a longer body we take a unit one class up — chosen by the volume of each compartment and the ranges required. How such a van is built we covered in a separate article.

Home / Vehicles / Multi-temperature reefer on a GAZelle Next

Refrigerated body GAZelle Next (A21R35) buy in Almaty — multi-temperature refrigerated body on a GAZelle Next — COND

Refrigerated body GAZelle Next (A21R35) buy in Almaty — multi-temperature refrigerated body on a GAZelle Next — two vehicles from the batch — COND

GAZelle Next (A21R35) Refrigerated van Astana — Multi-temperature van on a GAZelle Next — the whole body from the side, 4,250 mm long — COND

Thermal box with refrigeration GAZelle Next (A21R35) from the manufacturer — multi-temperature refrigerated body on a GAZelle Next — view — COND

Refrigeration unit GAZelle Next (A21R35) Kazakhstan — A multi-temperature van on a GAZelle Next — side door — COND

Refrigerated body GAZelle Next (A21R35) from the plant COND — multi-temperature refrigerated body on a GAZelle Next — the rear doors

Refrigerated body GAZelle Next (A21R35) in Almaty — multi-temperature refrigerated body on a GAZelle Next — both vehicle from the rear with open — COND

GAZelle Next (A21R35) Refrigerated van — Multi-temperature van on a GAZelle Next — rear three-quarter view, doors closed — COND

Thermal box with refrigeration GAZelle Next (A21R35) Astana — multi-temperature refrigerated body on a GAZelle Next — view from above: two — COND

Refrigeration unit GAZelle Next (A21R35) for order — multi-temperature refrigerated body on a GAZelle Next — view — COND

⚪ Completed · batch of 2 vehicles

Multi-temperature van GAZelle Next A21R35, Elinge unit

category Btwo compartmentsrefrigeration unit Elingeside door

The GAZelle Next is spelled in several ways in Russian-language ads and searches. It is one and the same vehicle.

↔ body 4,250 mm⚖ chassis payload 1,500 kg

Two reefers from a single batch for mixed distribution. The body is split into two temperature compartments by an insulated bulkhead with a two-leaf door, each compartment has its own evaporator — frozen and chilled cargo travel on the same run. The refrigeration unit Elinge sits above the cab. The front compartment is reached through a side door on the right, the rear one through hinged doors with a folding ladder. The floor and the kerb along the bottom of the walls are chequer-plate aluminium. The chassis runs on gas: a propane cylinder under the frame and a GAS marking on the windscreen.

Get a quote for the same →WhatsApp

Chassis

Make / model	GAZelle NEXT A21R35 — 3,745 mm extended wheelbase, UMZ petrol with LPG
Payload	1,500 kg
Gross weight	3,500 kg
Vehicle category	B
Fuel	gas system, propane

Factory specifications and the body configurator are on the page GAZelle Next chassis. Other models of the brand — on the GAZ page.

Van

Body type	multi-temperature refrigerated body, sandwich panel
Body dimensions	4,250 × 2,000 × 2,000 mm
Internal dimensions	4,050 × 1,800 × 1,800 mm, 100 mm panel
Usable volume	13.1 m³
Compartments	two, separated by an insulated bulkhead with a two-leaf door
Refrigeration unit	Elinge, multi-temperature build — model to be confirmed
Evaporators	one per compartment
Doors	hinged rear plus a side door on the right, a folding ladder
Floor	chequered aluminium
Fit-out	a chequer-plate aluminium kerb along the bottom of the walls, body lighting, mudflaps

How this body is built is covered in the article about the multi-temperature van. Unit specifications — Elinge.

Body type:How a multi-temperature van is built

All projects of this make:All refrigerated bodies on GAZelle

How this body is built

The project is based on a GAZelle NEXT A21R35 — 3,745 mm extended wheelbase, UMZ petrol with LPG chassis. Gross weight 3,500 kg — a category B licence is enough.

Body type — multi-temperature refrigerated body, sandwich panel, external dimensions 4,250 mm.

The floor is chequered aluminium. Doors: hinged rear plus a side door on the right, a folding ladder.

The refrigeration unit is Elinge, multi-temperature version — model to be confirmed. Fitted equipment: a chequer-plate aluminium kerb along the bottom of the walls, body lighting, mudflaps.

Why it is built this way

Ribbed aluminium flooring is chosen where cargo moves on trolleys: the sheet takes no moisture, hoses down and does not delaminate under wheels. It is heavier than plywood but outlasts it severalfold.

A side door changes distribution logistics: at each stop you open it rather than the whole rear portal — less cold escapes and the truck can park tight against its neighbour.

What is in the photos

Multi-temperature refrigerated body on a GAZelle Next — two vehicles from the batch

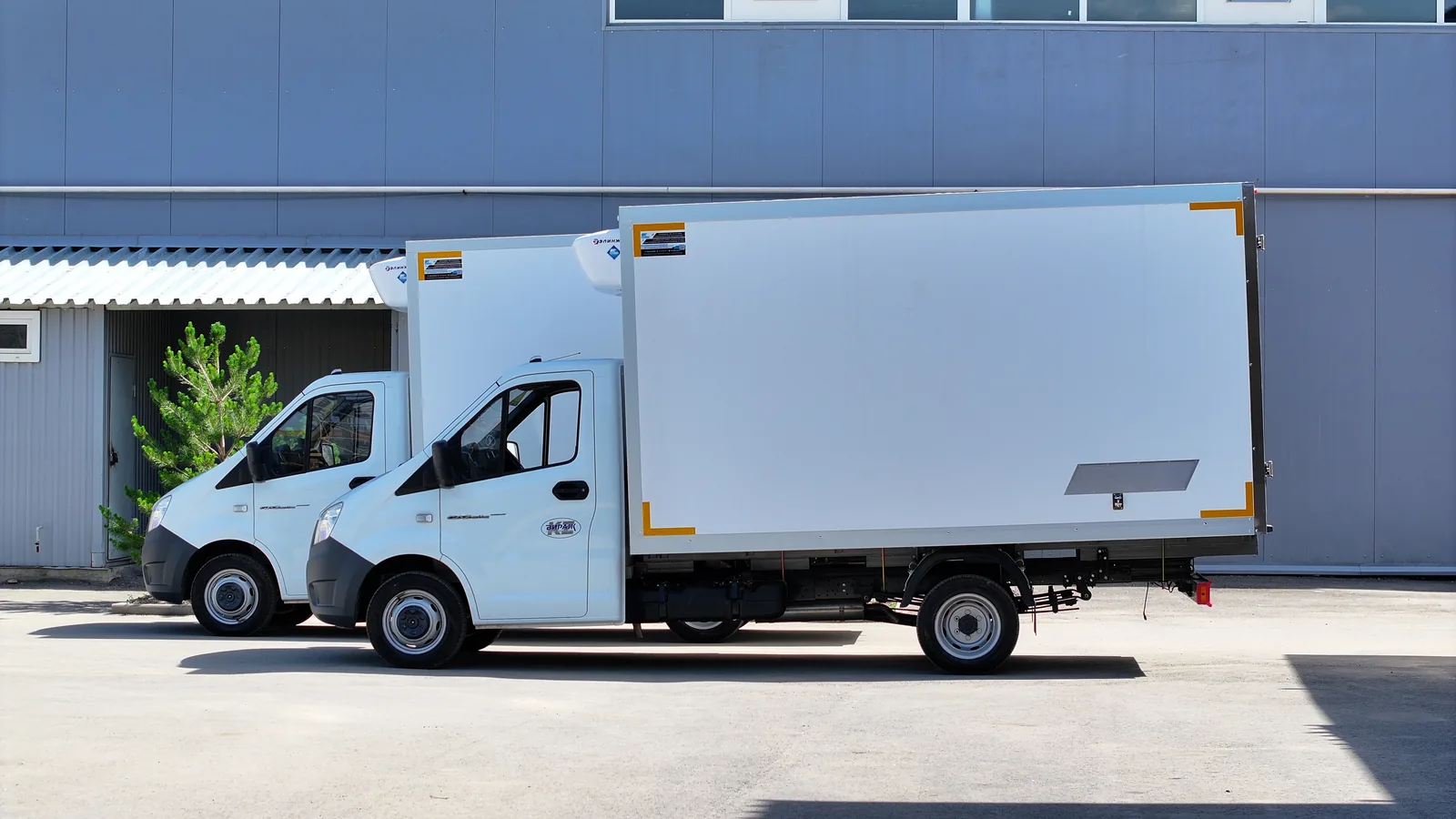

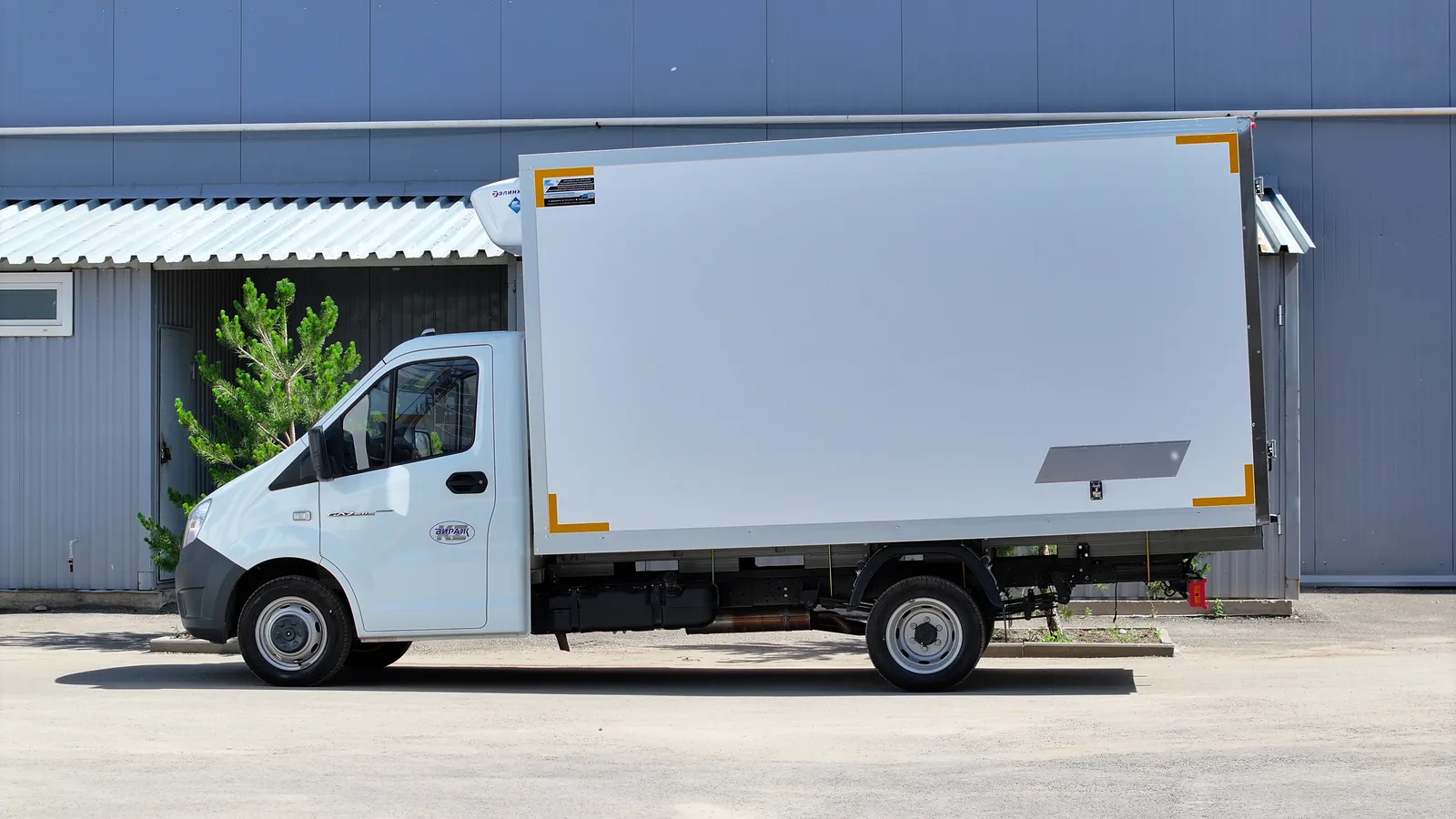

Multi-temperature van on a GAZelle Next — the whole body from the side, 4,250 mm long
Multi-temperature refrigerated body on a GAZelle Next — view

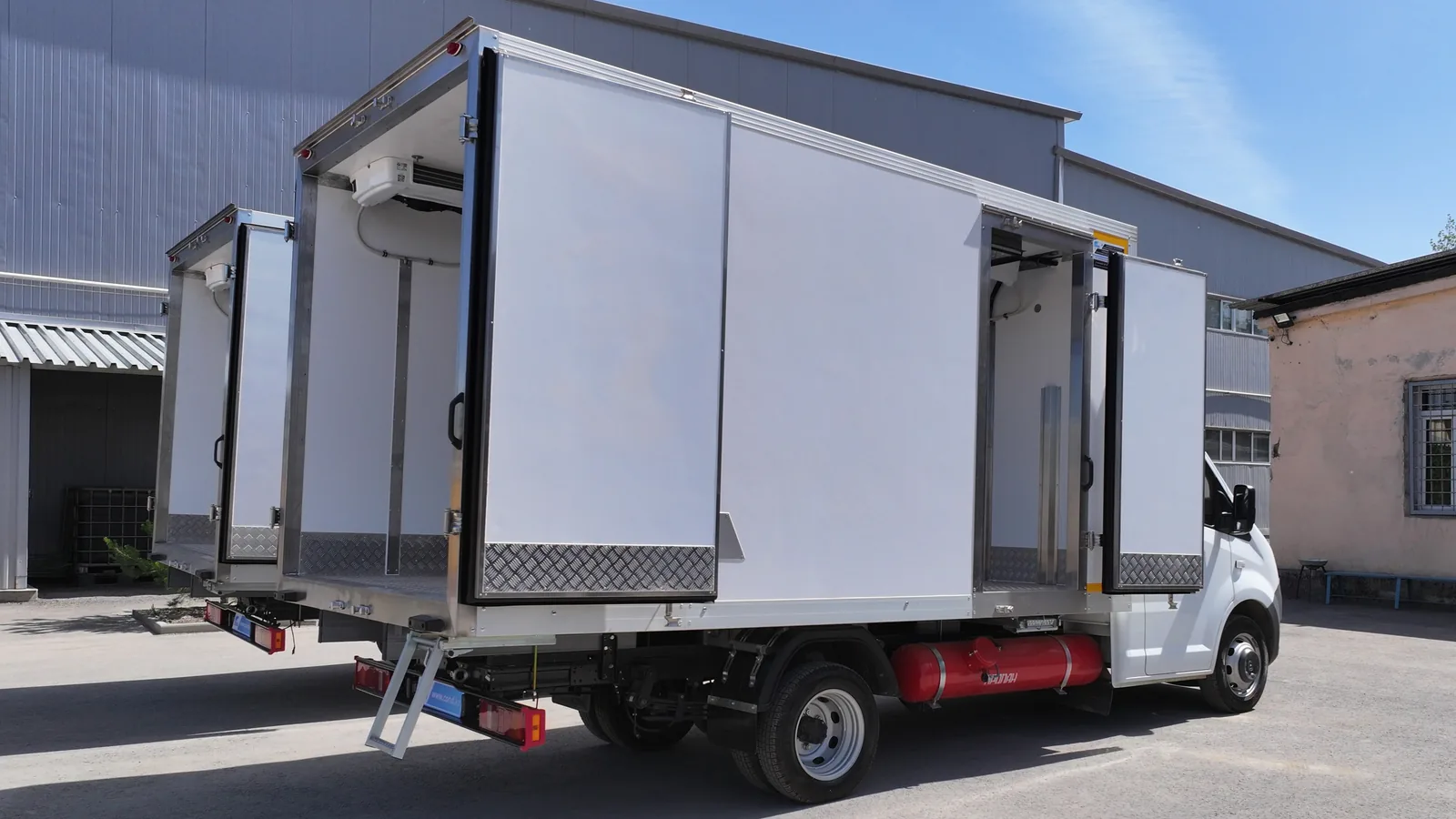

A multi-temperature van on a GAZelle Next — side door

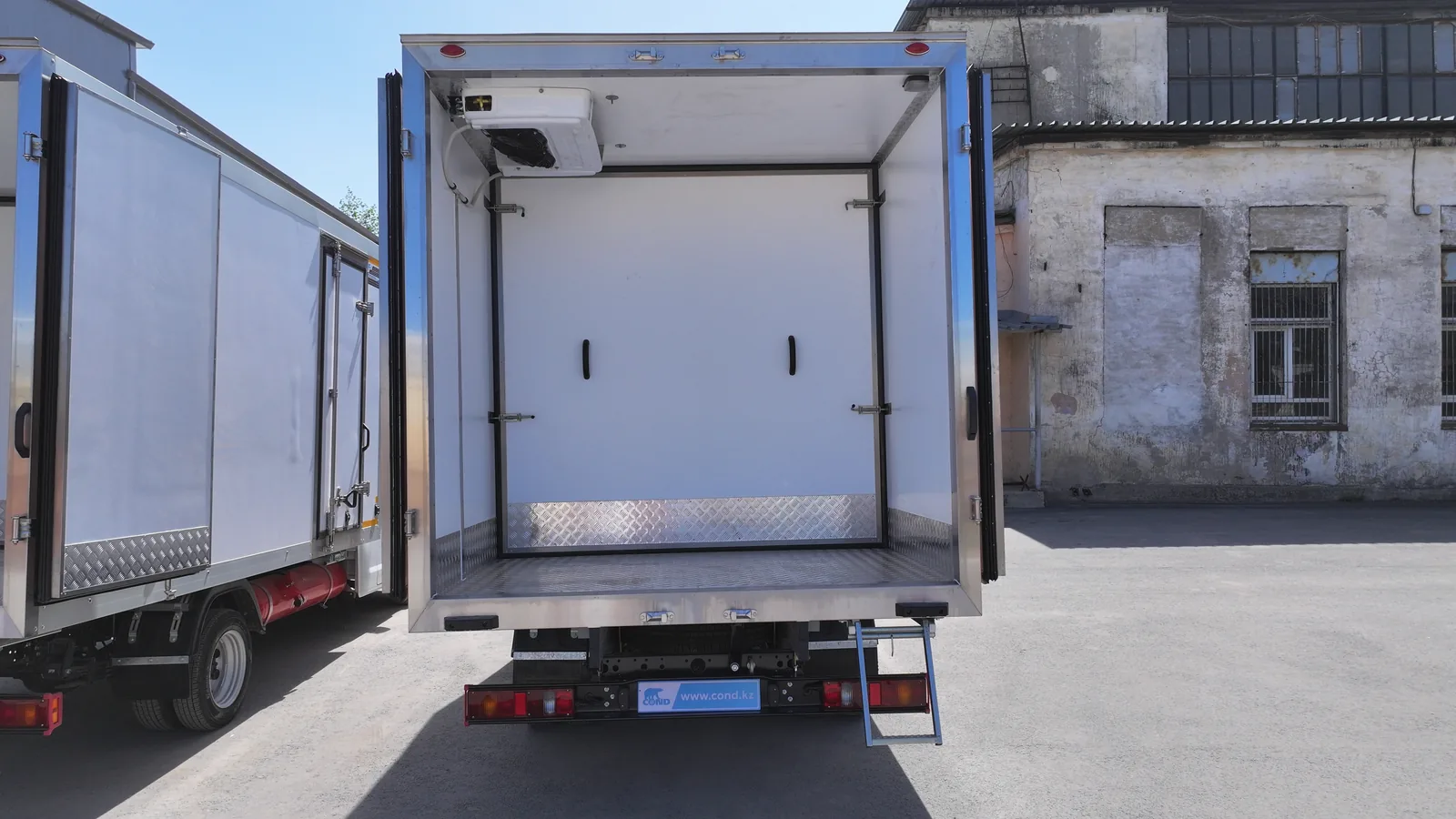

Multi-temperature refrigerated body on a GAZelle Next — the rear doors

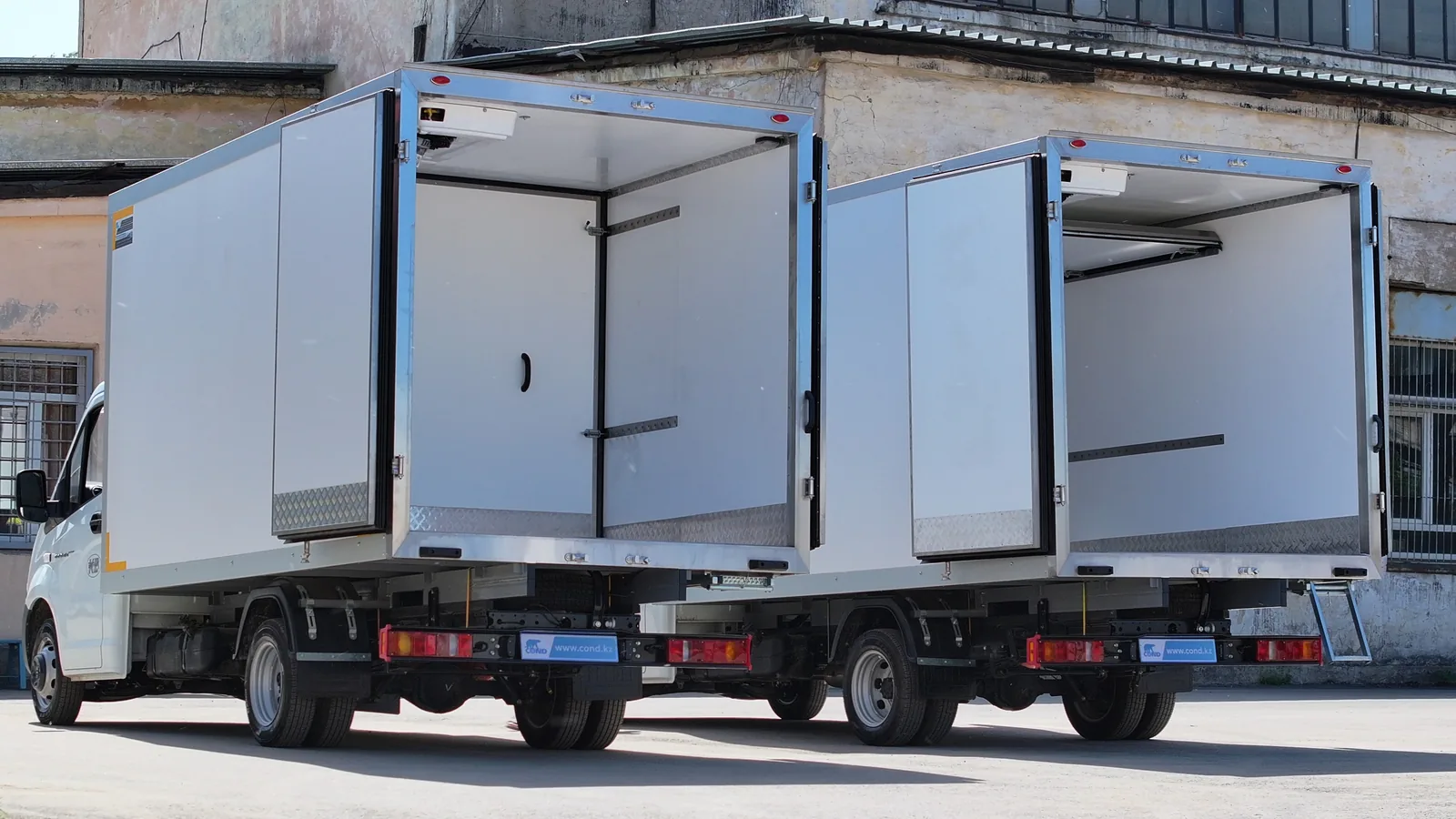

Multi-temperature refrigerated body on a GAZelle Next — both vehicle from the rear with open

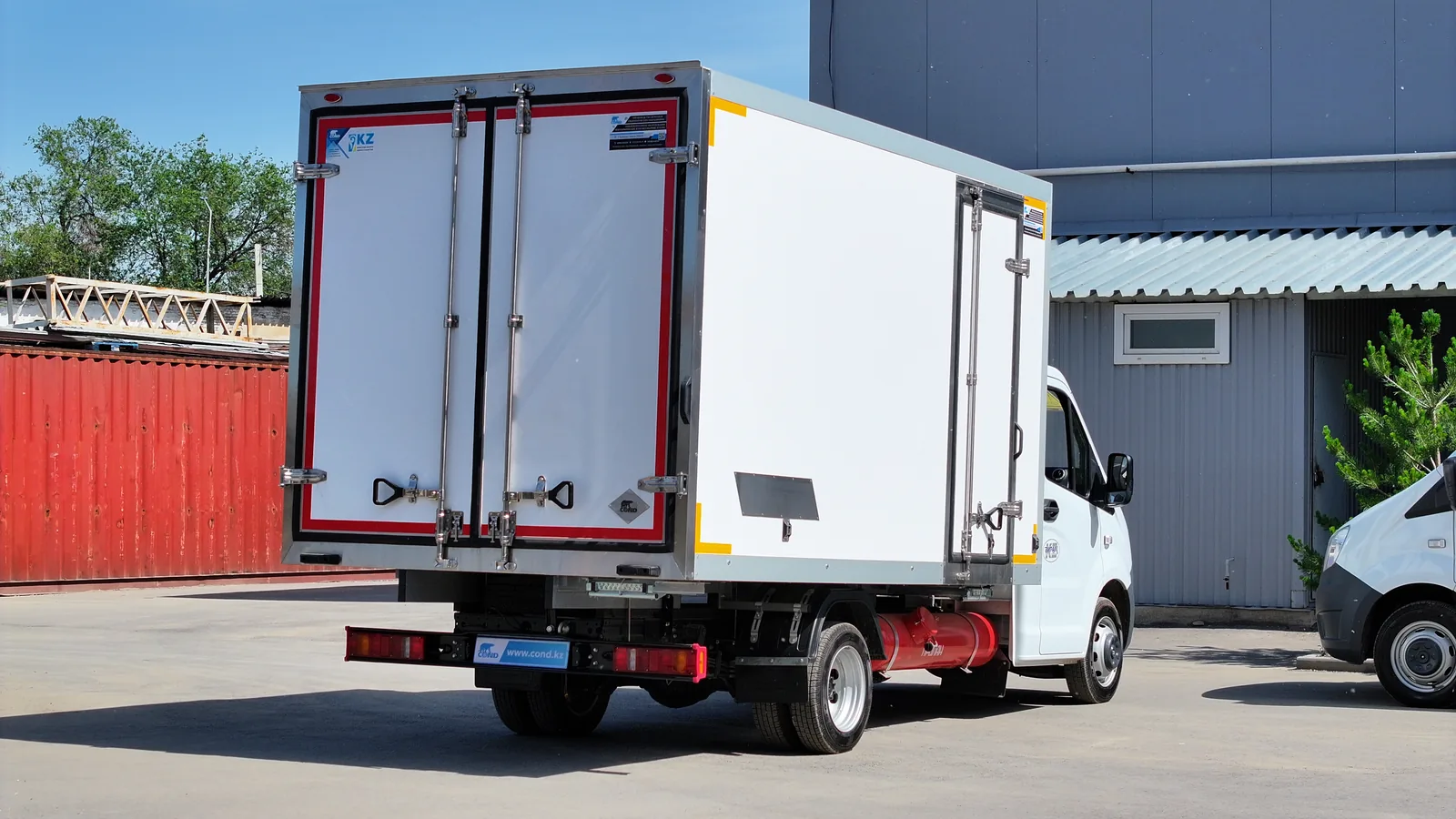

Multi-temperature van on a GAZelle Next — rear three-quarter view, doors closed

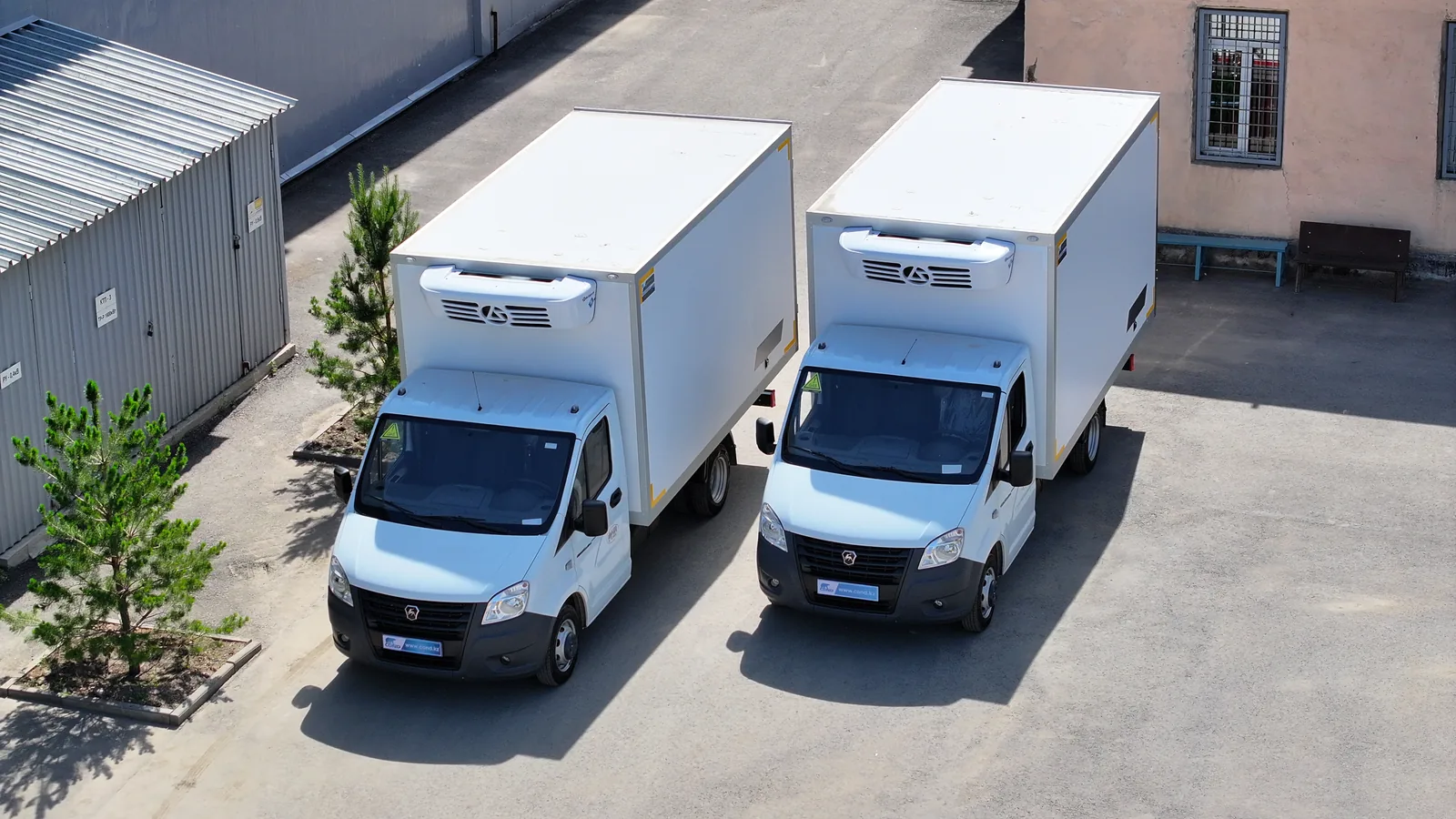

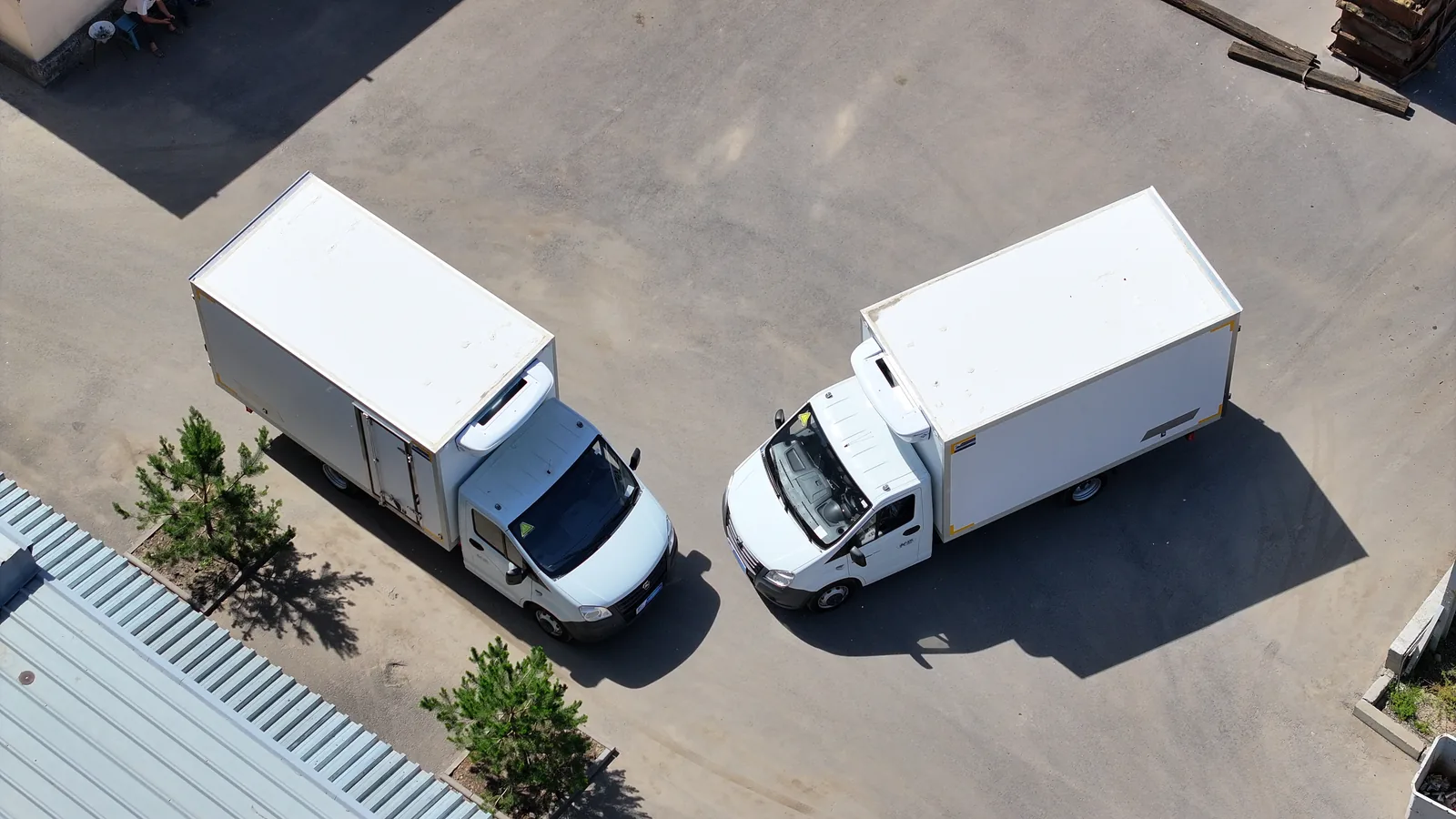

Multi-temperature refrigerated body on a GAZelle Next — view from above: two

Who it suits

A body with a refrigeration unit carries anything perishable: meat and fish, dairy, ready meals, flowers, medicines. The unit holds the set temperature while parked too, so the truck also suits distribution runs with long stops.

We will build the same — to your size and your chassis

This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.

We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.

If you are still choosing a chassis, we have the same body on other bases as well: Chevrolet Labo, DongFeng C31, FAW 1027, HINO 300. They differ in payload, frame length and licence category.

FAQ

FAQ about the multi-temperature van on a GAZelle Next

So that one vehicle carries frozen and chilled goods on the same run. A distributor with a mixed order — dumplings and dairy, ice cream and drinks — otherwise runs two trucks: two drivers, two fuel tanks, two lots of depreciation. Here the cargo splits between the compartments and the route stays single.

By an insulated bulkhead made of the same sandwich panel as the body walls, with a two-leaf door in the middle — you can see it in the photo with the rear doors open. Each compartment has its own evaporator, so the duties are held independently.

The front compartment cannot be reached through the rear doors without going through the rear one. The side door on the right gives direct access to the front compartment — at a stop the driver does not shuffle boxes but takes what is needed from their own section. On a narrow street it is also safer to unload from the pavement than from the carriageway.

Category B: the gross weight of the GAZelle Next is 3,500 kg. That is its main argument against medium-duty trucks — a driver is easier and cheaper to find. The chassis specifications are on the page GAZelle Next.

No. The engine-driven Elinge unit works the same whatever fuel the engine burns. The propane cylinder sits under the frame and takes no space beneath the body.

Yes, the bulkhead and the second evaporator are not tied to the GAZelle. For a longer body we take a unit one class up — we select by the volume of each compartment and by the duties required. How such a van is built we covered in a separate article.

More than a plain reefer of the same size: a bulkhead, a second evaporator and its pipework are added. How much more depends on how the volume is split and which duties each compartment needs. Leave a request or write on WhatsApp and we will send a quote. COND does not publish prices for bodies.

COND is a factory with its own WMI manufacturer code, so we issue the full set of conversion paperwork and the entry in the vehicle passport.
