Home / Vehicles / HINO 300 (curtain-side)
Curtainsider HINO 300 buy in Almaty — COND
Curtainsider HINO 300 buy in Almaty — the whole vehicle, front three-quarter view on the left — COND
Flatbed body with a curtain HINO 300 Astana — side in full from the side, curtain stretched — COND
Curtain on a frame HINO 300 from the manufacturer — rear three-quarter view — COND
Curtainsider HINO 300 Kazakhstan — aluminium side close up — COND
Flatbed body with a curtain on a HINO 300 by COND — the side dropped down, hinges and latches
HINO 300 Tilt body in Almaty — frame stanchions and the top rail — COND
Curtainsider HINO 300 — subframe for flooring platform — COND
Flatbed body with a curtain HINO 300 Astana — front three-quarter view on the right — COND
Curtain on a frame HINO 300 for order — the cab HINO 300 close up — COND
⚪ Completed · chassis unavailable

Curtain-side the side on a HINO 300 chassis

category C400 mm aluminium sidestranslucent roof
⚖ chassis payload 5 tonnes⚙ 165 hp, 6-speed manual
This chassis is not currently supplied to Kazakhstan. Hino is not imported into the country, so the project cannot be repeated on the HINO 300 itself. The same a curtain-side goes on available chassis — the JAC N56, JAC N120 or Foton — we will pick an equivalent for your load.

A flatbed with a frame and a tent: drop-down aluminium sides 400 mm high, a demountable frame and a removable sheet — so the truck loads from above by crane, from the side and from the rear. Timber rails run along the walls inside: the sheet does not tear against them and straps tie to them. The tent roof is translucent heavy-duty PVC, so the body is lit in daylight without a lamp.

Find an equivalent →WhatsApp

Chassis

Make / modelHINO 300, model 917
Engine4-litre turbodiesel, 165 hp, Euro 5
Gearboxmanual, 6-speed
Chassis payload5 tonnes
Vehicle categoryC

Our other bodies on this make — on the HINO page.

Body

Body typethe side platform with a tilt and frame
Body dimensions5,200 × 2,200 × 2,200 mm
Internal dimensions5,150 × 2,150 × 2,150 mm, 25 mm panel
Usable volume23.8 m³ — 10 europallets
Sidesdrop-down aluminium, 400 mm high
Framedemountable, bolted together; the tent comes off
Tilt rooftranslucent, heavy-duty PVC
Interior railswooden rails along the sides for lashing the load
Loadingtop, both sides, rear

More about the design on the page tilt and curtain-side bodies.

How this body is built

The vehicle is built on a HINO 300, model 917 chassis. The engine is 4-litre turbodiesel, 165 hp, Euro 5.

External body dimensions — 5,200 × 2,200 × 2,200 mm. That leaves 5,150 × 2,150 × 2,150 mm, 25 mm panel inside: the panel thickness is subtracted on every side, floor and ceiling included. Usable volume is 23.8 m³, counted from the internal dimensions rather than by multiplying the external ones. In a single tier that is 10 europallets.

What is in the photos

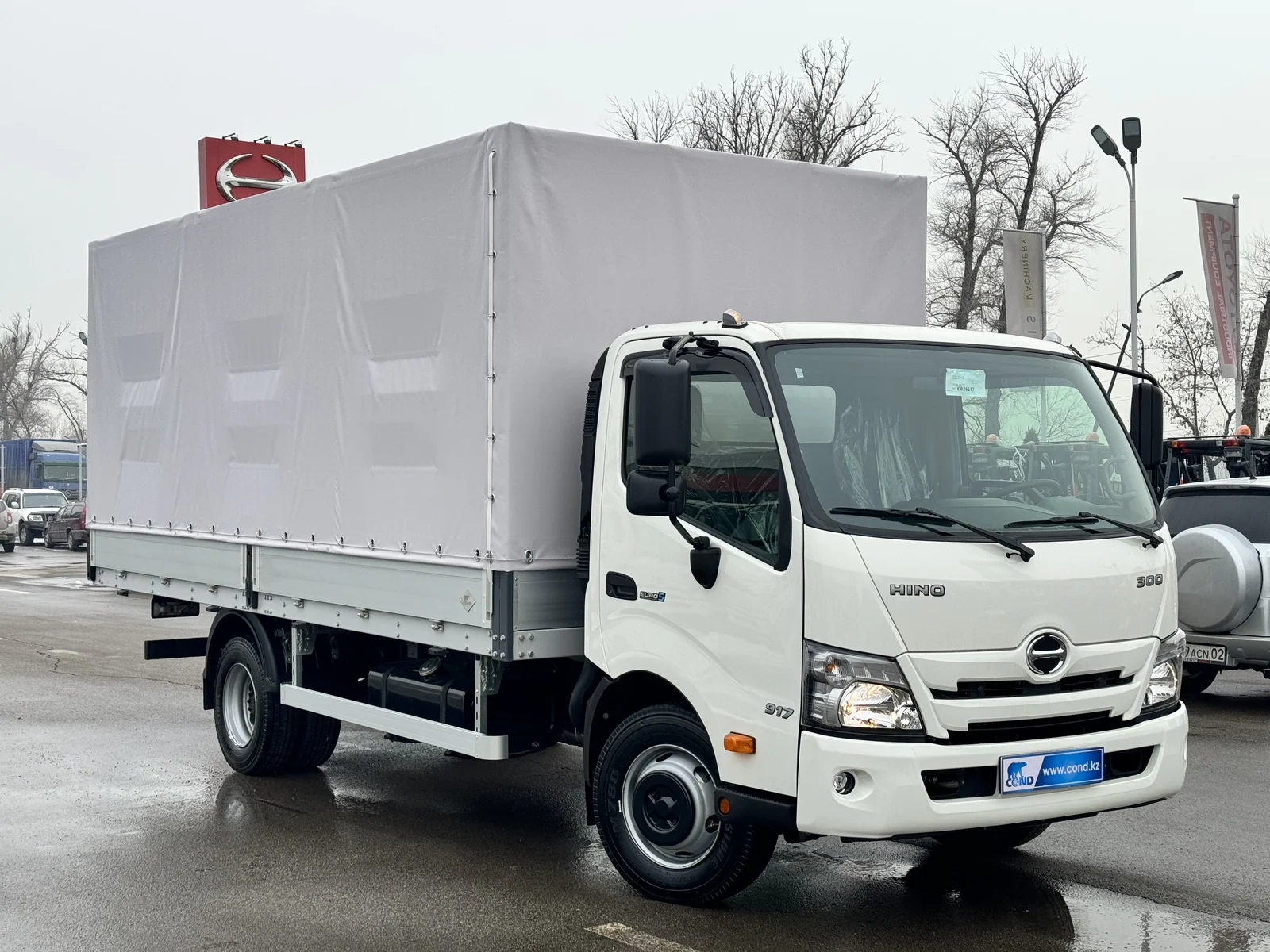

  • The whole vehicle, front three-quarter view on the left
  • Side in full from the side, curtain stretched
  • Rear three-quarter view
  • Aluminium side close up
  • The side dropped down, hinges and latches
  • Frame stanchions and the top rail
  • Subframe for flooring platform

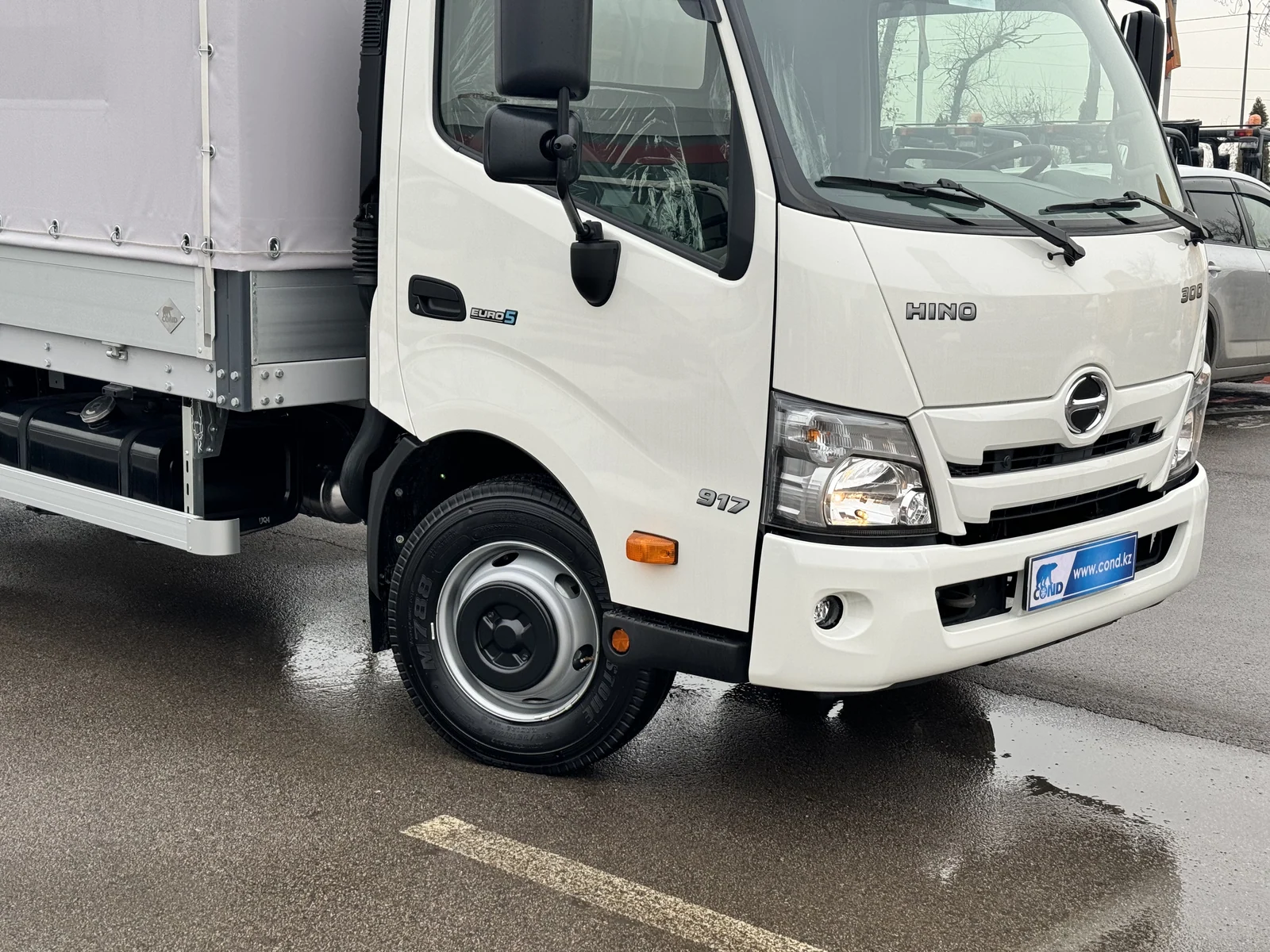

  • Front three-quarter view on the right

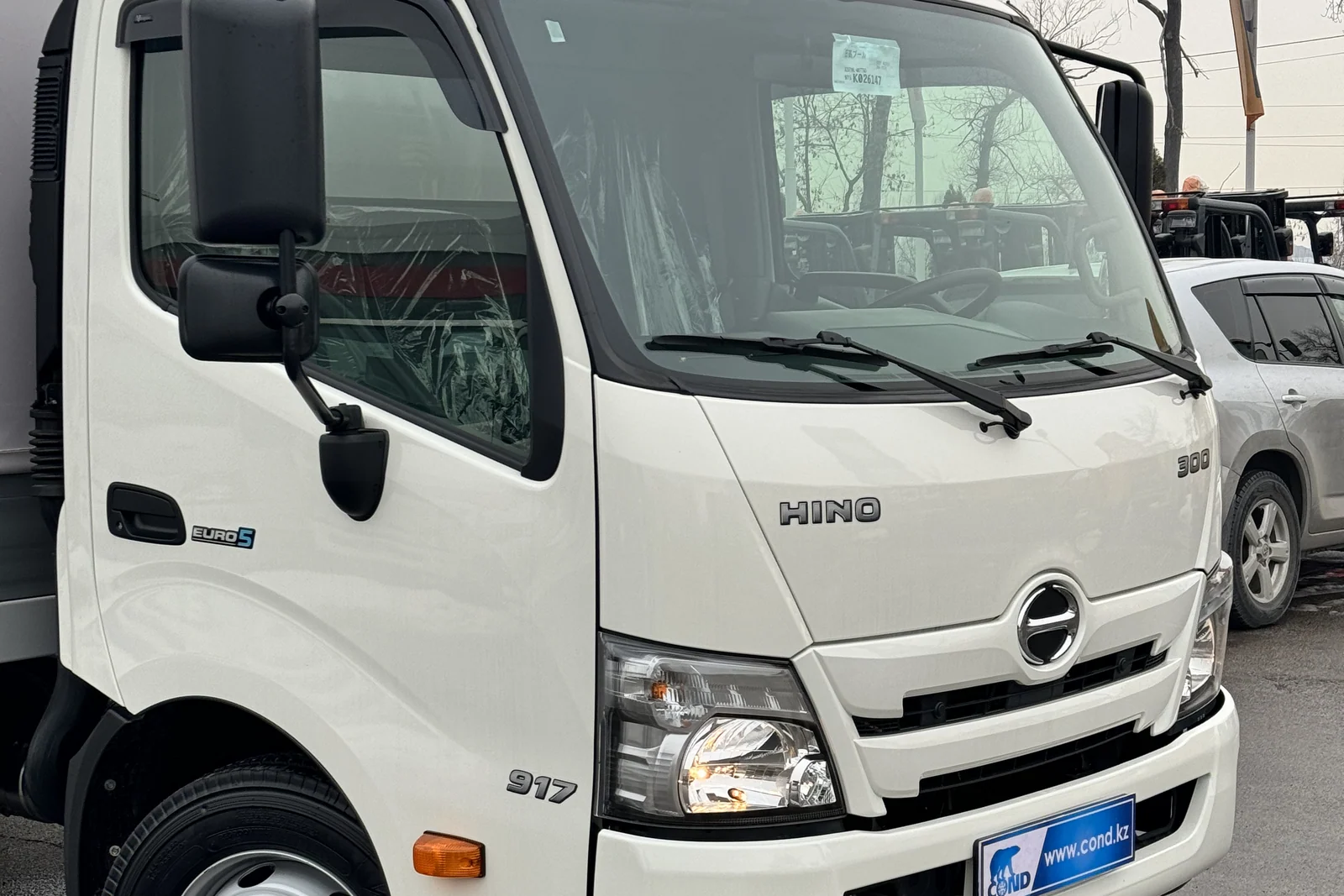

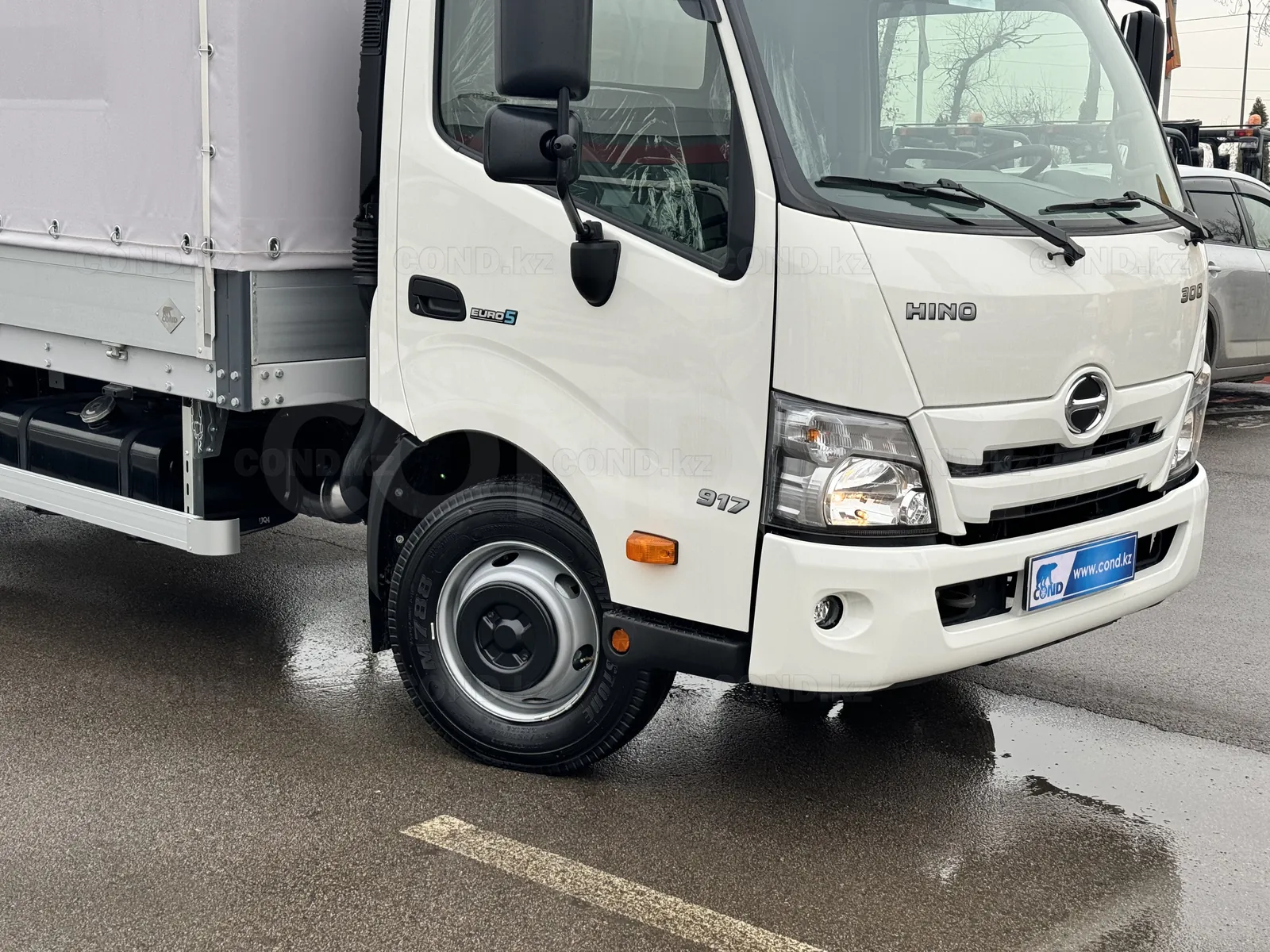

  • The cab HINO 300 close up

We will build the same — to your size and your chassis

This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.

We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.

If you are still choosing a chassis, we have the same body on other bases as well: DongFeng C120L, JAC N120. They differ in payload, frame length and licence category.

How many pallets fit

A standard 1,200 × 800 mm europallet, single tier, no restacking. Internal dimensions with a 50 mm laying allowance — a pallet will not go in dead tight.

10europallets 1,200 × 800 mm

Inside 5 150 × 2 150 × 2 150 mm · 23,8 m³

The layout scheme is on the right: it shows how the rows sit and how much room is left.

Recalculate for your dimensionsAsk on WhatsApp

Who the HINO 300 curtain-side suits

Curtain-side on HINO 300 is chosen when a box body is overkill but an open platform leaves the load exposed. Building materials, packaged furniture, equipment, pallets of mixed freight — everything that fears rain but needs no cold or airtightness. Take the tilt off and it is an ordinary the side platform for a crane. The chassis is a HINO 300 in model 917: a 4-litre turbodiesel with 165 hp, a six-speed manual, 5 tonnes of chassis payload and a category C licence.

Frame and tilt

The frame is demountable: uprights, longitudinal beams and cross members bolt together. The body is 5,200 × 2,200 × 2,200 mm and the sides are 400 mm aluminium — lighter than steel at the same strength. Bend an upright during loading and you replace one part, not the whole structure. The tent roof is translucent heavy-duty PVC: in daylight it is bright inside, the loader needs no lamp, and box labels are readable at the unload. Timber rails run along the walls inside: the sheet does not chafe against them and straps tie to them easily.

How it loads

From three sides. From the side by dropping the panel and lifting the curtain, from above by removing the sheet and using a crane or a lorry loader, and from the rear at a dock. On a route where one stop loads by crane and the next from a dock, that settles it.

Hino chassis cannot be imported right now

Hino is not supplied to Kazakhstan, so the vehicle cannot be repeated on the HINO 300 itself. The body transfers to available chassis of the same class — the JAC N56, JAC N120 or Foton: the subframe changes, deck length and side height are matched to the load, and axle-load calculations are done before work starts. Our other curtain-sides are in the curtain-side section.

Similar vehicles

Our other projects in the “curtainsider” category. All body types are in the “Vehicles” section.

Curtainsider with sliding posts on a DongFeng C120L (6,85 m) — COND⚪ Completed

DongFeng C120L

Curtainsider
▤ body 6.85 m⇔ side span 6.5 m⚖ chassis payload 8 t
Details →
Curtainsider on a HINO 300 (615) — COND⚪ Completed

HINO 300 615

Curtainsider
⚖ chassis payload 3 tonnes⚙ Euro 5
Details →
Curtainsider (curtainsider) on a Hino — COND⚪ Completed

Hino (curtain-side)

Curtainsider
⛅ tilt sliding↔ loading from above, the sides and the rear
Details →
Curtainsider body (curtainsider) on a Hino 500 (GD) — COND⚪ Completed

Hino 500

Curtainsider
↔ loading from three sides⛅ tilt sliding
Details →
Curtainsider on a JAC N120 — COND⚪ Completed

JAC N120

Curtainsider
⚖ payload 7,690 kg↔ deck 6,200 mm
Details →
Curtainsider on a JAC N56 — COND⚪ Completed

JAC N56

Curtainsider
⚖ payload 3,445 kg↔ deck 4,200 mm
Details →

Where the number comes from:How body capacity in pallets is calculated

FAQ

FAQ about the HINO 300 curtain-side

Not on the HINO 300 itself: Hino is not currently supplied to Kazakhstan. The body transfers to available chassis of the same class — the JAC N56, JAC N120 or Foton. The frame, tilt and side layout carry over exactly; only the subframe and deck length change to suit the frame.
A box body is a rigid shell: it holds its shape but loads only from the rear and through a side door. A curtain-side loads from three sides and from above by crane, and with the tilt off it is an ordinary the side platform. In exchange it holds no temperature and is not airtight: for cold you need an insulated or refrigerated body.
In daylight the body is lit without a lamp: the loader sees where he is putting things and can read the labels on the boxes. A small thing, but at a 6 a.m. unload it saves minutes at every stop. The roof sheet is heavy-duty PVC — it lets light through without showing the load to passers-by.
They are the lashing rails: the tilt sheet does not chafe against them and straps tie easily. The load is secured to the rail rather than the frame, so the frame stays intact.
Yes, that is what the design is for. The sheet comes off and the frame unbolts, leaving a the side platform for a crane or lorry loader.
We price by configuration: deck length, side height, frame type and tilt material. Leave a request or write on WhatsApp and we will send a quote. COND does not publish body prices.
COND is a factory with its own WMI manufacturer code, so we issue the full set of conversion paperwork and the entry in the vehicle passport.
