Curtainside body on Foton Aumark S85 chassis
The drop-side with tilt on the Foton Aumark S85 is a compromise that covers most supply tasks: the cargo is protected from rain and dust, yet can be loaded from any side and from above. The frame with a sliding tarpaulin is fitted to a 5.2 m flatbed; the chassis payload is 5,155 kg. Slide the tarpaulin back and a forklift can enter from the side along the full length, without driving in from the rear.
Chassis
| Make / model | Foton Aumark S85 (Aumark S80 chassis) |
| Engine | Foton Cummins ISF3.8s5154, diesel, Euro 5 |
| Engine displacement | 3,760 cc |
| Power | 152 hp (112 kW) at 2,600 rpm |
| Torque | 491 N·m at 1,200–1,900 rpm |
| Gearbox | manual, 6-speed ZF 6S500 |
| Wheelbase | 3,800 mm |
| Gross weight | 8,500 kg |
| Brakes | air, ABS/EBD/ESP |
| Vehicle category | C |
| Chassis payload | 5,155 kg |
Chassis specifications are on a separate page.
Body
| Body type | a curtainsider — a platform with a frame and a sliding tarpaulin |
| Body dimensions | 5,200 × 2,200 × 2,200 mm |
| Deck length | 5,200 mm |
| Sides | drop-down, 400 mm high |
| Tilt | sliding, on a frame with cross members and wooden battens |
| Rear | hinged doors |
| Loading | from above, from both sides and from the rear |
| Side guards | aluminium, to safety requirements |
| Production time | from 14 working days |
More about the design on the page tilt and curtain-side bodies.
Who it suits a curtain-side на Foton Aumark S85
Curtain-side (tilt) на Foton Aumark S85 is chosen when a van is more than you need but an open platform does not protect the load. Packaged furniture, appliances, building materials, profile and pipe, groupage — anything that fears rain but needs neither cold nor an airtight body.
Payload 5,155 kg, 5.2 m deck — ten Euro pallets in one tier. Cummins ISF3.8s5154 with 152 hp and 491 N·m from 1,200 rpm, air brakes with ABS: the truck is built for highway work, not only for the city.
How the curtain is built
Tilt sliding, on a frame with cross members. Inside, wooden battens run along the sides: they hold the curtain’s shape and keep the load from rubbing the fabric. Tensioners along the bottom secure the sheet so it does not flap on the highway or wear through at the seams.
Loading works from three directions: slide the curtain and load along the whole side with a forklift; remove the cross members and load from above with a crane; open the rear swing doors and load from the back. A closed van cannot do that.
What else we fit
Aluminium side guards per safety requirements. On request: stakes for pipes and profiles, rings and lashing rails for securing cargo, tail lift. If the tarpaulin is not needed, the same deck is built as open flatbed platform, and the frame with the curtain can be added later.
Similar vehicles
Our other projects in the “curtainsider” category. All body types are in the “Vehicles” section.
⚪ Completed
How this body is built
The vehicle is built on the Foton Aumark S85 chassis with a 4,700 mm wheelbase and a 5,200 mm mounting length. Under the cab is a Cummins ISF3.8s5154 diesel, Common Rail + SCR, Euro 5, 152 hp (122 kW). Gross weight is 11,980 kg, so the driver needs category C.
What is in the photos

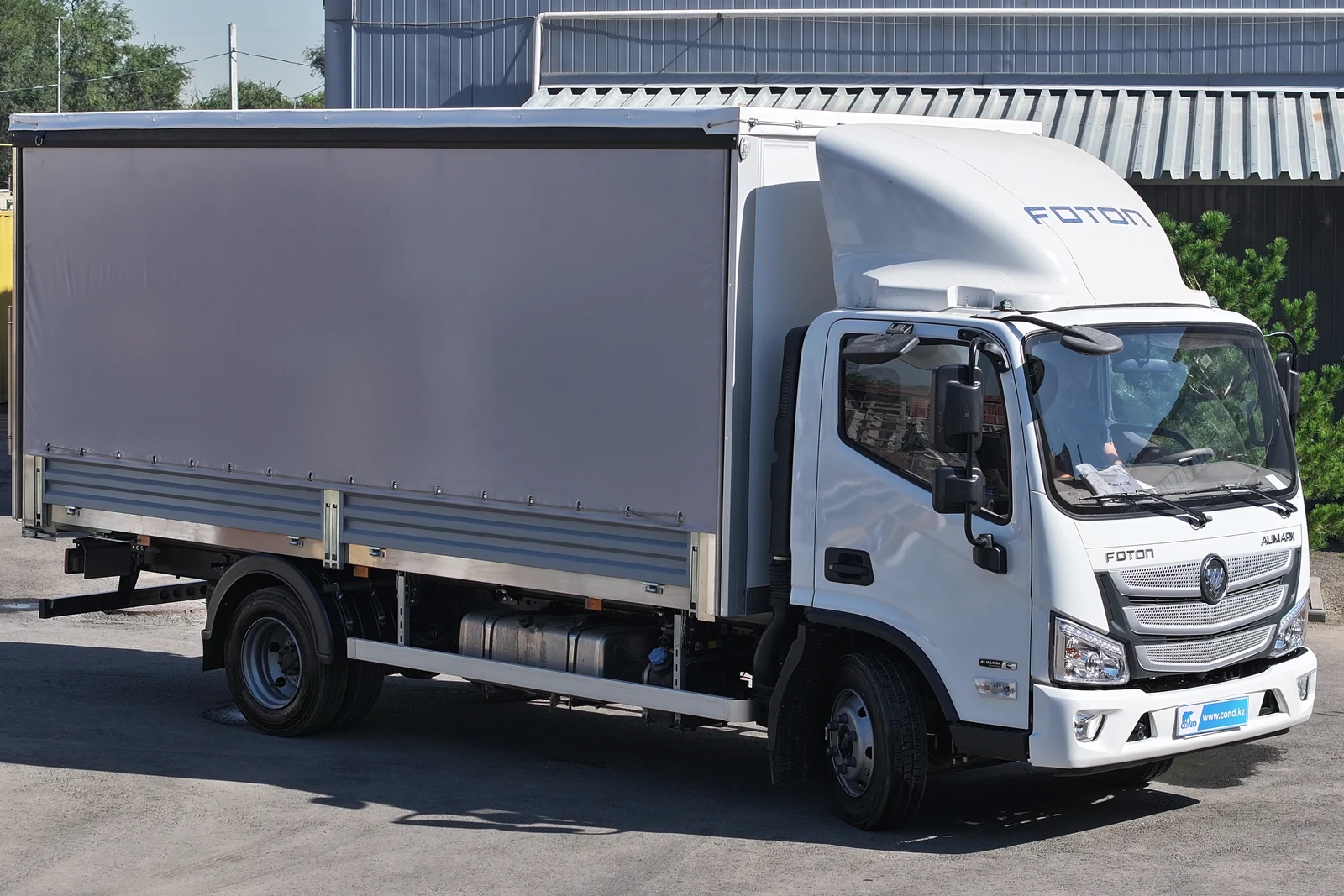

- Front left three-quarter

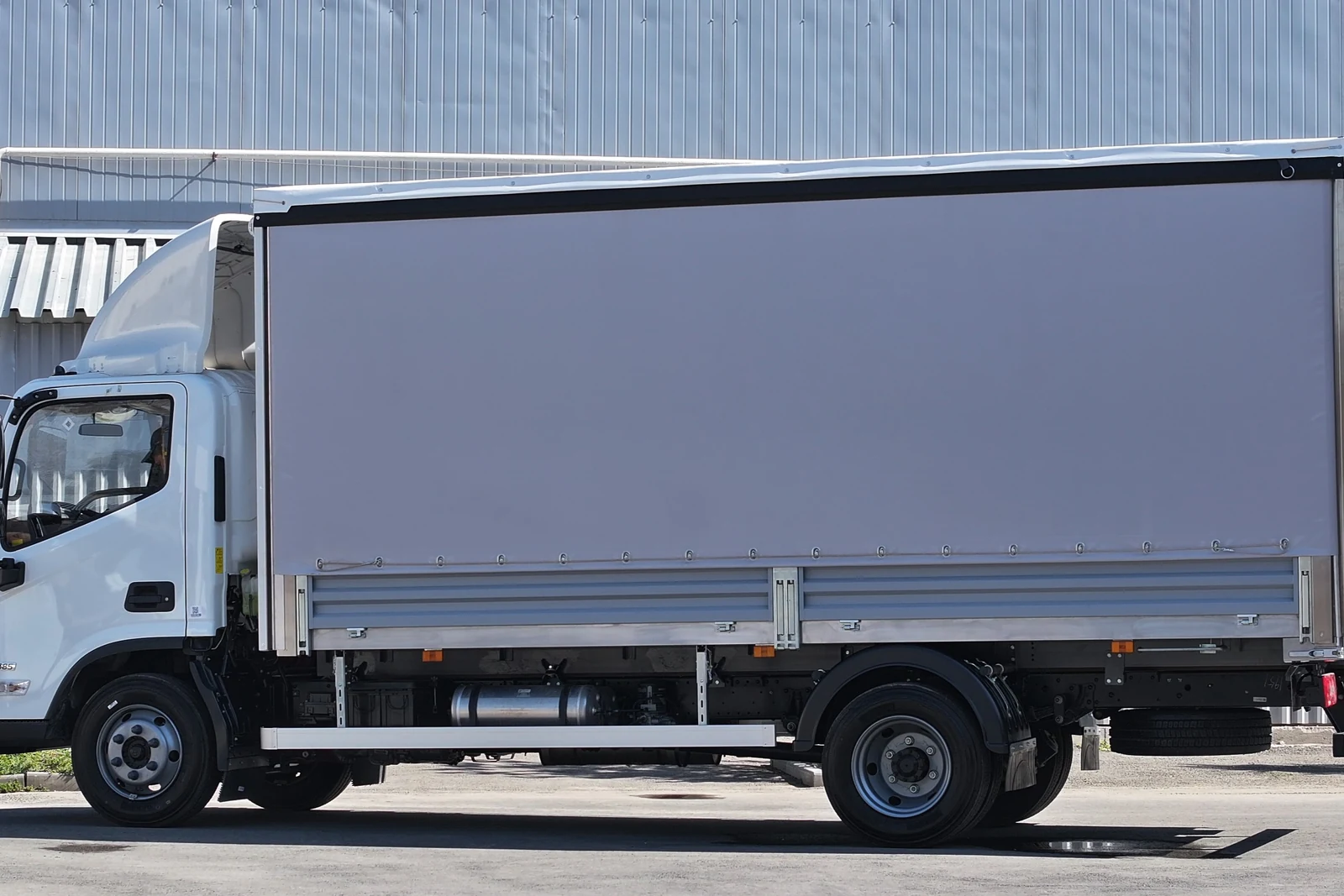

- Full left side
- Rear three-quarter

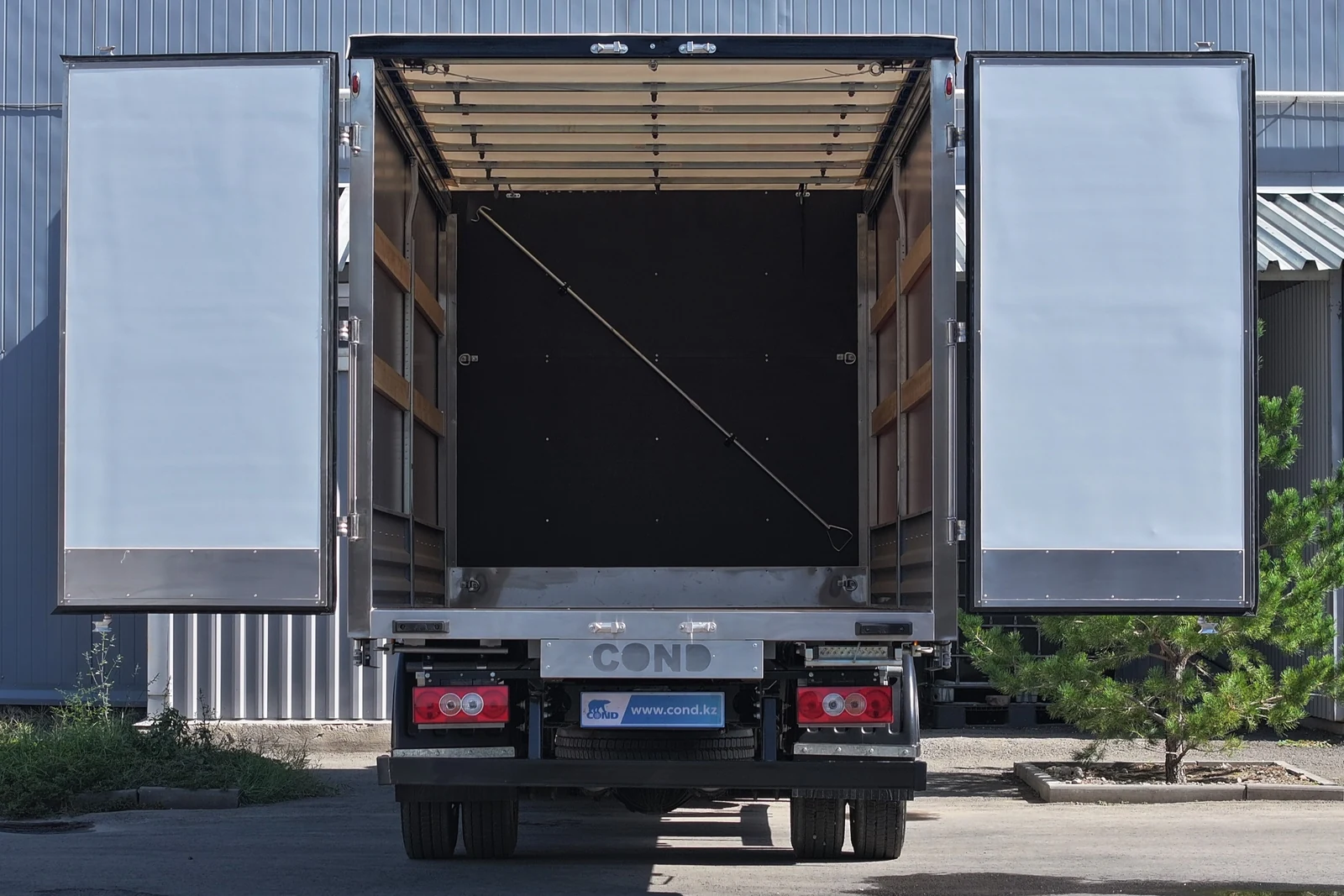

- Rear swing doors
- Body open, frame and battens
- Tilt from inside: frame and wooden slats
- Tarpaulin tensioner
- Cab
We will build the same — to your size and your chassis
This body is not a catalogue item but a project we actually built. We will make the same one to your dimensions: length, width and height are calculated for your cargo and the chassis payload, rather than fitting the cargo to a ready-made size.
We also fit it to your own chassis: bring the vehicle, we take the frame dimensions, build the body, mount it and hand it over with the conversion paperwork.
If you are still choosing a chassis, we have the same body on other bases as well: DongFeng C120L, HINO 300 615, Hino 500. They differ in payload, frame length and licence category.
